PIC16C65B-04

40-pin OTP MCU, USART+SPI+I2C, dual CCP, PSP, 4096W, 33 I/O, 4MHz, PIC16 core

3200

Effective Inventory
Go to Inquiry

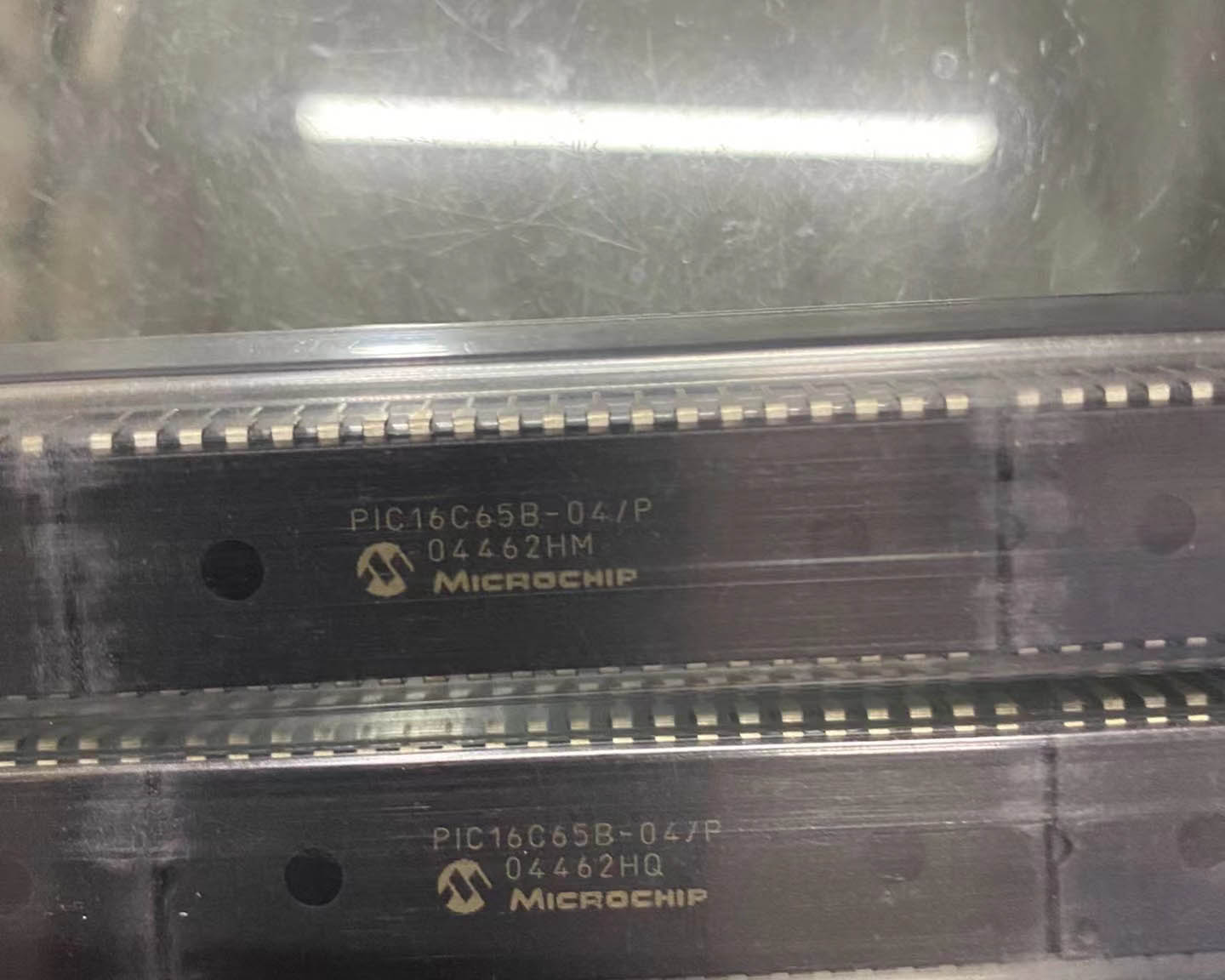

Image for reference only

Manufacturer Part：

PIC16C65B-04

Package：

PDIP-40 (13.9 x 52.3 x 4.1 mm) / PLCC-44 / TQFP-44

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16C65B-04 is a feature-rich 40-pin 8-bit OTP microcontroller from Microchip’s PIC16 mid-range family, offering extensive I/O capabilities and multiple serial communication peripherals including USART, SPI, and I²C. With 4096 words of One-Time Programmable program memory, 192 bytes of RAM, three timers, a parallel slave port (PSP), and up to 33 I/O pins, this device provides comprehensive functionality for complex embedded control applications. The 04 speed grade operates at 4 MHz, delivering a 1 MIPS execution rate suitable for industrial control, data acquisition, and multi-peripheral system designs.

Key Specifications

Core Architecture PIC RISC (8-bit, mid-range)
Program Memory 4096 words (OTP)
RAM (Data Memory) 192 bytes
EEPROM None
Serial Ports USART + SSP (SPI/I²C)
Parallel Slave Port 8-bit PSP
Oscillator Options RC, LP, XT, HS, EC
Max Frequency 4 MHz (04 variant)
Supply Voltage 2.5V to 6.0V
I/O Pins Up to 33
Timers TMR0 (8-bit), TMR1 (16-bit), TMR2 (8-bit)
CCP Module 2 channels (Capture/Compare/PWM)
Operating Temperature 0°C to +70°C (Commercial)
Package Type PDIP-40 / PLCC-44 / TQFP-44

Features

  • 4096 words OTP program memory
  • 192 bytes of RAM
  • USART (UART) + SSP (SPI/I²C) serial ports
  • 8-bit Parallel Slave Port (PSP)
  • Dual CCP modules (Capture/Compare/PWM)
  • 3 timers: TMR0, TMR1, TMR2
  • Up to 33 general-purpose I/O pins
  • Interrupt-on-change on Port B
  • Multiple interrupt sources

Applications

  • Industrial control and automation
  • Multi-protocol communication gateways
  • Data acquisition and logging systems
  • Motor control with PWM
  • Intelligent instrument front-ends
  • Networked sensor controllers
  • PC peripheral interfaces
  • PLC and DCS I/O modules

The PIC16C65B-04 is a 40-pin 8-bit microcontroller from Microchip Technology’s PIC16C family, representing one of the most feature-rich OTP devices in the mid-range PIC lineup. With three serial communication modules (USART, SPI, and I²C via the SSP module), a parallel slave port (PSP), dual CCP modules for capture/compare/PWM, and 33 general-purpose I/O pins, this device is designed for complex embedded systems requiring multiple communication interfaces and rich peripheral integration. The 4096 words of OTP program memory provide substantial code space for implementing communication protocol stacks, control algorithms, and user interface logic. The 192 bytes of RAM support data buffering, variable storage, and intermediate calculations for multi-tasking applications. The Synchronous Serial Port (SSP) module supports both SPI and I²C modes, enabling connectivity to a wide range of peripheral chips including serial EEPROMs, ADCs, sensors, and display controllers. The Parallel Slave Port provides an 8-bit bi-directional parallel interface for high-speed communication with host processors or other microcontrollers. The two CCP (Capture/Compare/PWM) modules support input capture for timing measurements, output compare for waveform generation, and PWM for motor control and dimming applications. The 04 speed grade operates at 4 MHz with a 1 MIPS execution rate and a wide supply voltage range of 2.5V to 6.0V.

The PIC16C65B-04 is built on Microchip’s mid-range PIC Harvard architecture with a 14-bit instruction word and 35 instructions. Separate program and data buses enable parallel instruction fetch and data access through a two-stage pipeline, yielding single-cycle execution for most instructions. At 4 MHz, the instruction cycle is 1 μs (1 MIPS). The 4096-word OTP program memory is addressed by a 12-bit program counter with an 8-level deep hardware stack for subroutine and interrupt context saving. The SSP (Synchronous Serial Port) module provides hardware support for both SPI (Serial Peripheral Interface) and I²C (Inter-Integrated Circuit) serial protocols, operating in master or slave modes with dedicated shift registers and clock generation circuitry. The USART module supports full-duplex asynchronous (UART) and synchronous serial communication with programmable baud rates. The Parallel Slave Port (PSP) is an 8-bit bi-directional parallel interface with handshaking signals, designed for direct interface to microprocessor data buses. The two CCP modules each contain a 16-bit register that can be configured for: Capture mode (recording timer value on pin event), Compare mode (generating output when timer matches), or PWM mode (generating pulse-width modulated waveforms). Timer0 (8-bit), Timer1 (16-bit), and Timer2 (8-bit with period register) provide the time bases for these peripherals. The interrupt system supports multiple sources including USART, SSP, CCP, timers, external interrupt, and port change interrupts.

Port Pins Type Primary Functions
RA0-RA5 6 I/O Port A: analog inputs, comparator I/O, VREF
RB0-RB7 8 I/O Port B: INT, IOC interrupts, SSP (SPI/I2C)
RC0-RC7 8 I/O Port C: T1OSC, CCP1/CCP2, USART (TX/RX)
RD0-RD7 8 I/O Port D: 8-bit Parallel Slave Port data
RE0-RE2 3 I/O Port E: PSP control signals (RD, WR, CS)
MCLR 1 Input Master Clear / System Reset
OSC1/OSC2 2 Analog Oscillator connections
VDD/VSS 4 Power Power and ground pins
  • Multi-protocol industrial communication gateways and converters
  • Multi-channel data acquisition systems with serial output
  • DC motor speed and position control with PWM
  • Intelligent digital instrument front-panel controllers
  • PLC remote I/O modules with multiple communication ports
  • Embedded systems requiring both SPI and I2C peripheral expansion
Manufacturer Part Number Package Notes
Microchip PIC16F877A PDIP-40 Flash version, 8KB, ADC added, widely used
Microchip PIC18F4520 PDIP-40 PIC18 enhanced core, 32KB Flash, more features
Atmel ATmega8535 PDIP-40 AVR core, 8KB Flash, ADC, USART+SPI+I2C
STC STC89C52RC PDIP-40 8051 core, 8KB Flash, UART, very economical
