PIC16C711-04I

18-pin OTP MCU with 8-bit ADC, 1024W, 68B RAM, -40°C to +85°C industrial temperature grade

4700

Effective Inventory
Go to Inquiry

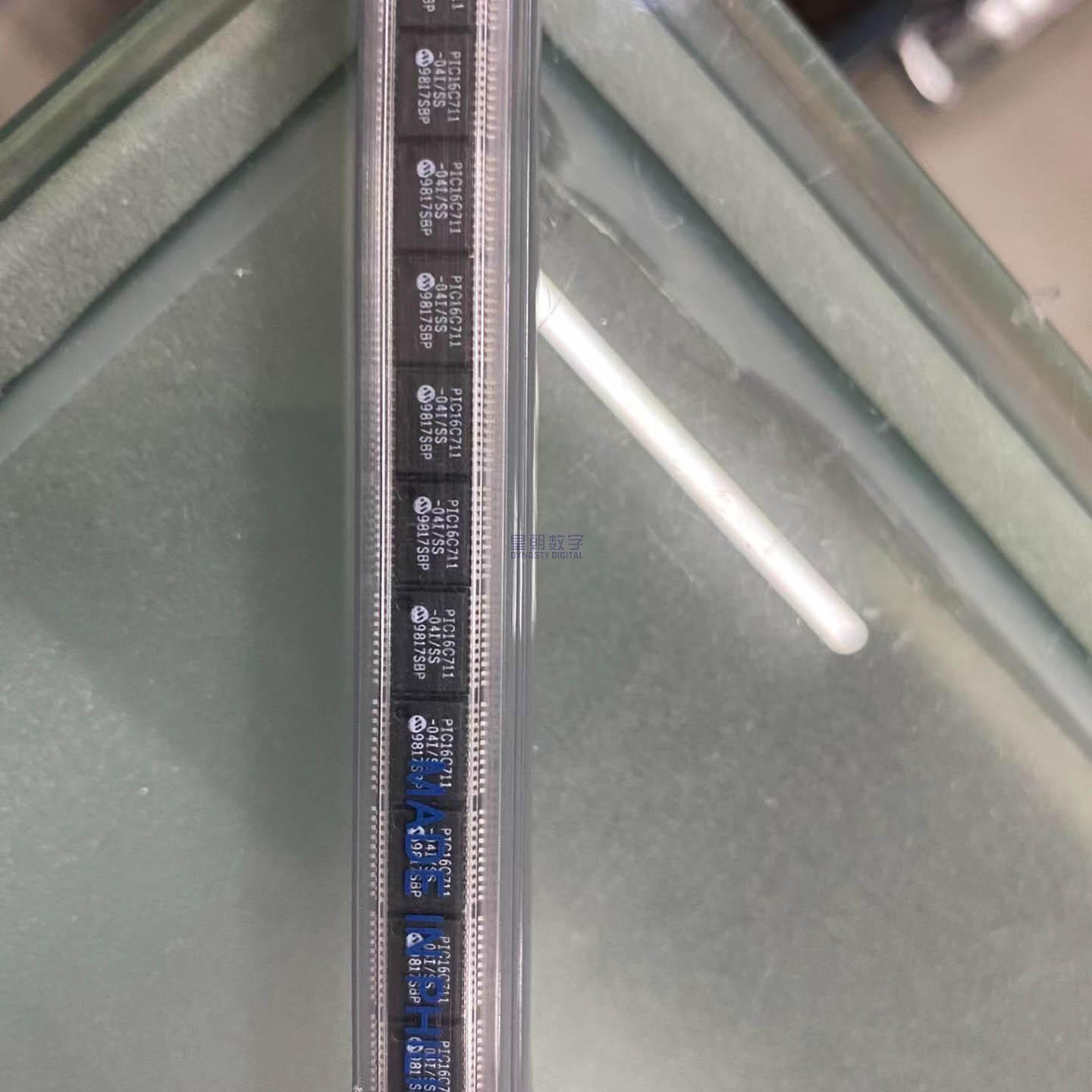

Image for reference only

Manufacturer Part：

PIC16C711-04I

Package：

PDIP-18 / SOIC-18 (7.5 x 11.5 x 2.3 mm) / SSOP-20

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16C711-04I is the industrial temperature grade variant of the popular PIC16C711 18-pin OTP microcontroller with 8-bit ADC. Featuring 1024 words of One-Time Programmable program memory, 68 bytes of RAM, 4-channel 8-bit analog-to-digital converter, and an 8-bit timer, this device provides cost-effective analog measurement and control capability for demanding environmental conditions. Rated for operation from -40°C to +85°C, it is ideal for industrial sensor interfaces, automotive electronics, outdoor equipment, and other applications requiring extended temperature range performance.

Key Specifications

Core Architecture PIC RISC (8-bit, mid-range)
Program Memory 1024 words (OTP)
RAM (Data Memory) 68 bytes
ADC 8-bit resolution, 4 input channels
Oscillator Options RC, LP, XT, HS, EC
Max Clock Frequency 4 MHz (04I variant)
Supply Voltage Range 2.5V to 6.0V
I/O Pins 13
Timer TMR0: 8-bit with 8-bit prescaler
Operating Temperature -40°C to +85°C (Industrial)
Package Type PDIP-18 / SOIC-18 / SSOP-20

Features

  • 4-channel 8-bit analog-to-digital converter
  • 1024 words OTP program memory
  • 68 bytes of RAM
  • Industrial temperature range: -40°C to +85°C
  • 13 I/O pins with interrupt capability
  • 8-bit Timer0 with prescaler
  • Wide supply voltage: 2.5V to 6.0V
  • Power-on Reset and Brown-out protection

Applications

  • Industrial sensor transmitters
  • Automotive sensor interfaces
  • Outdoor environmental monitoring
  • Industrial process controls
  • Battery management systems
  • HVAC temperature sensors
  • Marine electronics

The PIC16C711-04I is the industrial temperature grade version of Microchip’s PIC16C711 18-pin 8-bit microcontroller with integrated 8-bit ADC. Rated for full operation from -40°C to +85°C, this variant is designed to deliver reliable analog measurement and control performance in challenging environmental conditions where commercial-grade devices cannot operate. The integrated 4-channel 8-bit successive approximation ADC enables direct measurement of analog signals from sensors, potentiometers, and other analog sources without requiring external ADC components. With 1024 words of OTP program memory and 68 bytes of RAM, the PIC16C711-04I provides sufficient resources for simple to moderately complex control algorithms, data filtering, and sensor calibration calculations. The 13 general-purpose I/O pins support interfacing with various external components including LEDs, relays, switches, and digital sensors. The 8-bit Timer0 with programmable prescaler handles timing functions such as delay generation, pulse measurement, and periodic sampling triggers. The OTP memory model makes this device ideal for high-volume industrial and automotive applications where firmware is mature and stable, providing the best possible cost per unit for proven designs. The wide 2.5V to 6.0V supply voltage range adds design flexibility for various system voltage requirements.

The PIC16C711-04I employs Microchip’s mid-range PIC Harvard architecture with separate 14-bit program and 8-bit data memory buses. A two-stage pipeline overlaps instruction fetch and execution, enabling single-cycle execution for most of the 35 available instructions. At 4 MHz clock frequency, the instruction cycle time is 1 μs, yielding a 1 MIPS processing rate. The 1024-word OTP program memory is addressed by an 11-bit program counter, with an 8-level deep hardware stack for subroutine calls and interrupt context saving. The 8-bit ADC module features a successive approximation register (SAR) architecture with a sample-and-hold amplifier. It has 4 analog input channels (AN0-AN3 on Port A pins) and can generate an interrupt upon conversion completion. The ADC voltage reference can be either VDD or an external voltage connected to the AN3/VREF pin. Conversion clock sources include Fosc/2, Fosc/8, Fosc/32, or the internal RC oscillator, allowing the ADC to operate even during Sleep mode for low-power periodic measurements. Timer0 is an 8-bit timer/counter with an 8-bit prescaler that can be assigned to either Timer0 or the Watchdog Timer. The interrupt system supports external interrupt (INT on RB0), Timer0 overflow, ADC conversion complete, and Port B change interrupts (RB4-RB7). The I/O ports feature TTL input buffers and CMOS output drivers with selectable pull-up resistors on Port B.

Pin Name Type Function
1 RA2 / AN2 I/O Port A pin 2 / ADC input channel 2
2 RA3 / AN3 / VREF I/O Port A pin 3 / ADC CH3 / External VREF input
3 RA4 / T0CKI I/O Port A pin 4 / Timer0 external clock input
4 MCLR / VPP Input Master Clear (active low) / Programming voltage input
5 RA0 / AN0 I/O Port A pin 0 / ADC input channel 0
6 RA1 / AN1 I/O Port A pin 1 / ADC input channel 1
7 VSS Power Ground reference (0V)
8 RB0 / INT I/O Port B bit 0 / External interrupt input
9-11 RB1-RB3 I/O Port B bits 1-3 (general purpose I/O)
12-15 RB4-RB7 I/O Port B bits 4-7 (interrupt-on-change capable)
16 OSC2 / CLKOUT Output Oscillator output / Clock output (Fosc/4)
17 OSC1 / CLKIN Input Oscillator input / External clock input
18 VDD Power Positive supply voltage (2.5V to 6.0V)
  • Industrial 4-20mA current loop sensor transmitters
  • Automotive temperature and pressure sensor interfaces
  • Outdoor weather station data acquisition modules
  • Industrial process monitoring and control loops
  • Battery management and charge monitoring systems
  • HVAC duct temperature and humidity sensors
Manufacturer Part Number Package Notes
Microchip PIC16F819 SOIC-18 Flash, 1.8KB, 10-bit ADC, industrial temp
Atmel ATtiny441 SOIC-14 AVR core, 4KB Flash, 12-ch 10-bit ADC
STC STC15W404S SOP-16 1T 8051, 4KB Flash, 10-bit ADC, low cost
Holtek HT46R003B SOP-16 RISC MCU, 10-bit ADC, ultra low cost
