PIC16F1513-E

Enhanced mid-range 28-pin MCU, 7KB Flash, 10-bit 17-ch ADC, EUSART+SPI+I2C, -40/+125°C

3400

Effective Inventory
Go to Inquiry

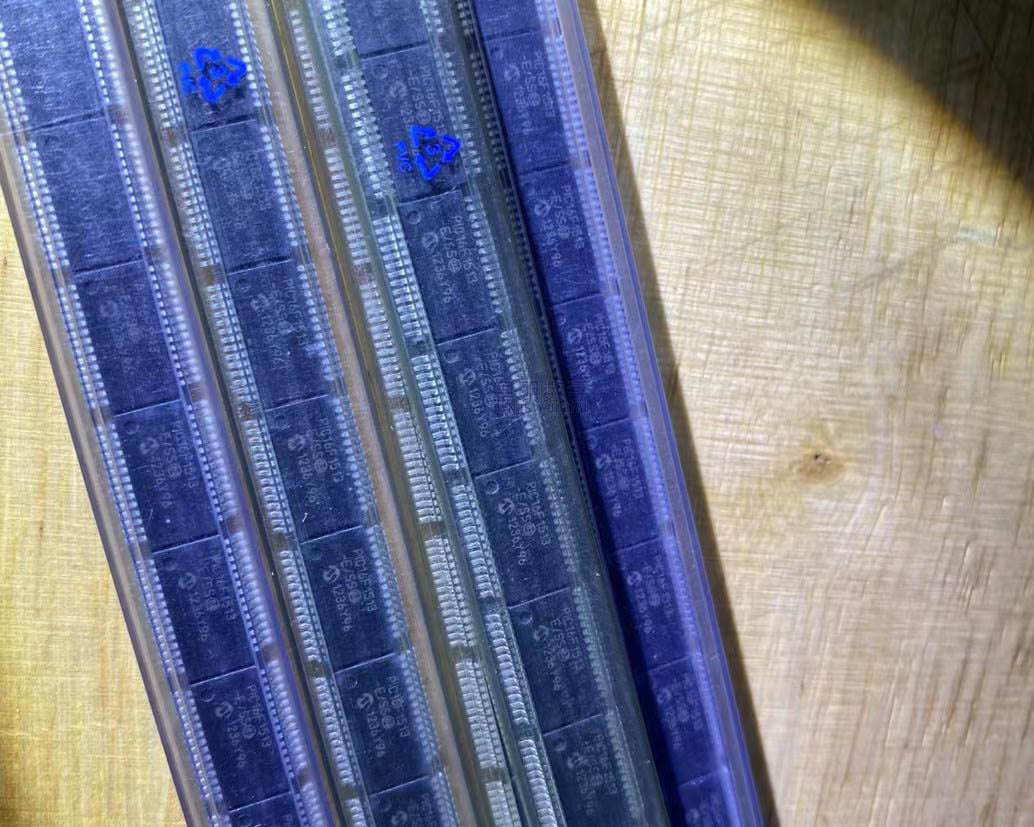

Image for reference only

Manufacturer Part：

PIC16F1513-E

Package：

SOIC-28 / SSOP-28 / QFN-28 (4 x 4 x 0.9 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16F1513-E is a 28-pin enhanced mid-range 8-bit Flash microcontroller from Microchip’s PIC16F1 family, offering a significant upgrade in performance and features compared to the classic PIC16C series. With 7 KB of Flash program memory, 256 bytes of RAM, 256 bytes of EEPROM, a 10-bit ADC with up to 17 channels, enhanced mid-range core architecture, and multiple serial communication peripherals, this device provides exceptional integration for industrial and consumer embedded control applications. The extended temperature variant operates reliably from -40°C to +125°C, making it suitable for harsh automotive and industrial environments.

Key Specifications

Core Architecture PIC RISC (enhanced mid-range, 14-bit)
Flash Program Memory 7 KB (4096 words x 14-bit)
RAM (Data Memory) 256 bytes
EEPROM 256 bytes
ADC Resolution 10-bit, up to 17 channels
Internal Oscillator 16 MHz (calibrated, 32 kHz to 16 MHz)
Max Frequency 20 MHz (external)
Supply Voltage 1.8V to 5.5V
I/O Pins Up to 25
Timers TMR0 (8-bit), TMR1 (16-bit), TMR2 (8-bit)
Serial Peripherals MSSP (SPI/I²C), EUSART
Operating Temperature -40°C to +125°C (Extended)
Package Type SOIC-28 / SSOP-28 / QFN-28

Features

  • Enhanced mid-range core with 49 instructions
  • 7KB Flash program memory + 256B EEPROM
  • 256 bytes general-purpose RAM
  • 10-bit ADC with up to 17 channels
  • 16 MHz internal oscillator (±1% accuracy)
  • EUSART + MSSP (SPI/I²C) serial ports
  • Two CCP modules (PWM/capture/compare)
  • Extended temperature: -40°C to +125°C
  • 1.8V to 5.5V wide operating voltage
  • High endurance Flash (100K cycles)

Applications

  • Industrial control and automation
  • Automotive electronics under-hood
  • Multi-channel sensor data acquisition
  • Motor control with PWM
  • Smart sensor nodes
  • LED lighting controllers
  • Power supply monitoring
  • Automotive body control

The PIC16F1513-E is a member of Microchip’s enhanced mid-range PIC16F1 family of 8-bit Flash microcontrollers, featuring a significantly improved CPU core, richer peripheral set, and higher performance compared to the classic PIC16C and PIC16F legacy families. The enhanced mid-range core expands the instruction set to 49 instructions, adds two additional instructions for context saving, and supports deeper hardware stack (16 levels) for more complex application code. With 7KB of Flash program memory, 256 bytes of RAM, and 256 bytes of EEPROM, this device provides generous memory resources for sophisticated control algorithms, communication protocol stacks, and non-volatile data storage. The 10-bit ADC with up to 17 analog input channels enables comprehensive analog system monitoring with high resolution. The dual serial communication peripherals—EUSART (Enhanced USART) and MSSP (Master Synchronous Serial Port supporting SPI and I²C)—provide flexible connectivity options for a wide range of external devices and communication networks. The integrated 16 MHz internal oscillator eliminates the need for external crystals in many applications, reducing BOM cost and PCB space. The extended temperature range of -40°C to +125°C makes this device suitable for under-hood automotive applications, industrial control equipment operating in high-temperature environments, and other extreme temperature applications.

The PIC16F1513-E is based on Microchip’s enhanced mid-range PIC architecture, which builds on the classic 14-bit core with significant improvements including additional instructions, automatic context saving in interrupts, and a 16-level deep hardware stack. The Harvard architecture uses separate program and data buses with a two-stage pipeline for efficient execution. At 20 MHz external clock, the maximum execution rate is 5 MIPS. The 10-bit ADC module features a successive approximation architecture with up to 17 multiplexed analog input channels, an internal voltage reference, and automated result accumulation (averaging) for improved noise performance. The EUSART module provides enhanced UART functionality including auto-baud detection, wake-up on break, and half-duplex support. The MSSP (Master Synchronous Serial Port) module supports both SPI and I²C protocols in master or slave modes. Two CCP (Capture/Compare/PWM) modules provide flexible waveform generation and timing measurement capabilities. Timer0 (8-bit), Timer1 (16-bit), and Timer2 (8-bit with period register) serve as time bases for various peripherals. The internal oscillator block generates a 16 MHz system clock with factory calibration, and includes a 32 kHz low-frequency oscillator for low-power operation and real-time clock functions via Timer1. The device features multiple power management modes including Sleep and Doze, enabling significant power savings in battery-powered applications.

Port Pins Type Primary Functions
RA0-RA7 8 I/O Port A: analog inputs (AN0-AN7), OSC pins, MCLR
RB0-RB7 8 I/O Port B: analog inputs (AN8-AN14), IOC interrupts, SSP
RC0-RC7 8 I/O Port C: analog inputs, EUSART (TX/RX), CCP, T1OSC
MCLR / VPP 1 Input Master Clear / Programming voltage
VDD / VSS 2+ Power Power supply and ground connections
  • Industrial sensor data acquisition and processing modules
  • Automotive under-hood sensors and control modules
  • Multi-channel temperature and pressure monitoring systems
  • Brushless DC motor and stepper motor control
  • Intelligent industrial IoT sensor nodes
  • High-power LED lighting drivers with dimming control
Manufacturer Part Number Package Notes
Microchip PIC16F1518 SOIC-28 14KB Flash, 512B RAM, same pinout, more memory
STMicro STM8S103F3 TSSOP-20 STM8 core, 8KB Flash, 10-bit ADC
NXP LPC812 SOIC-16 Cortex-M0+, 16KB Flash, 32-bit
GigaDevice GD32F130 TSSOP-20 Cortex-M3, 16KB Flash, 32-bit alternative
