PIC16F15275-I

Advanced 28-pin MCU, 28KB Flash, 12-bit 24-ch ADC, 2x UART+SPI+I2C, 32MHz, industrial

2900

Effective Inventory
Go to Inquiry

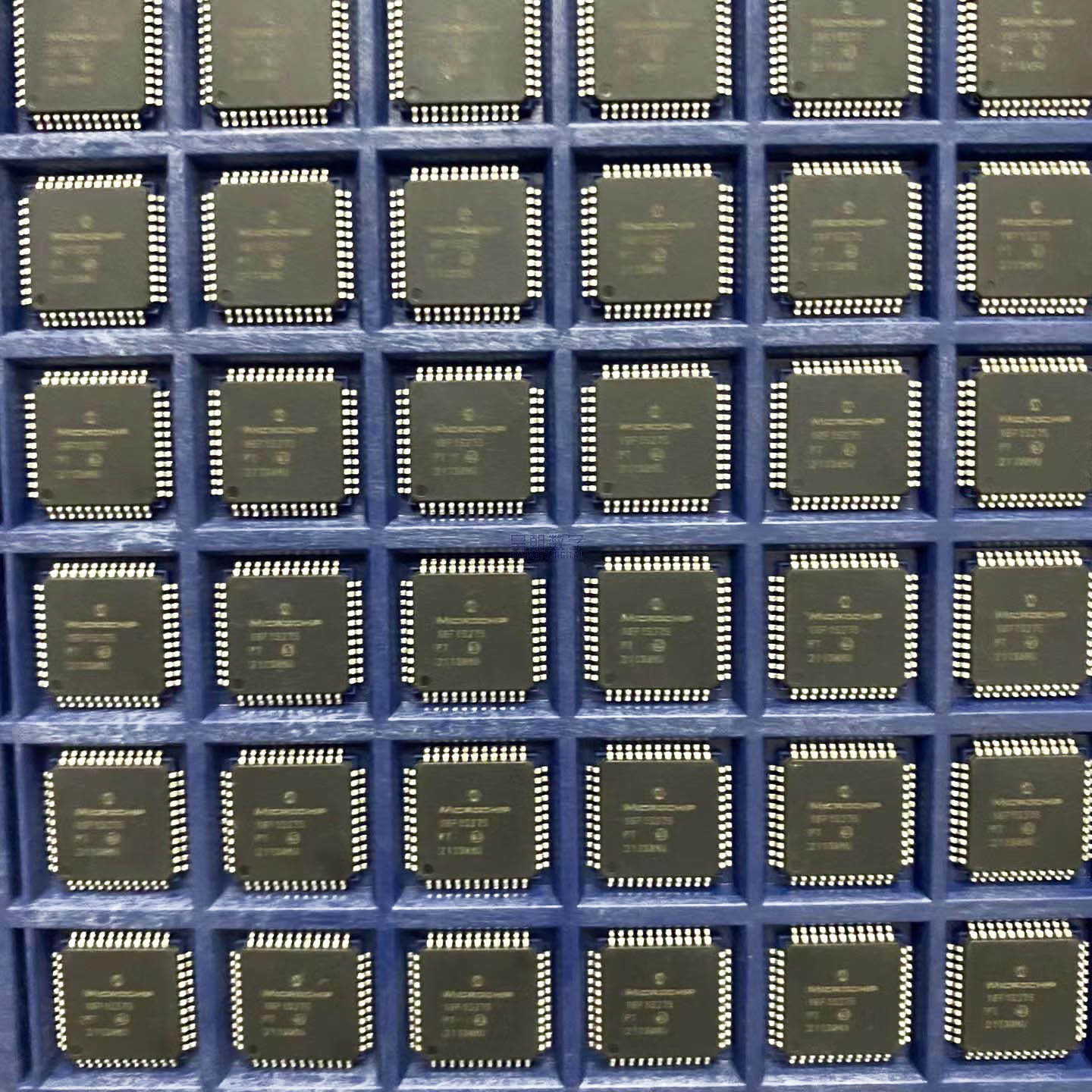

Image for reference only

Manufacturer Part：

PIC16F15275-I

Package：

SOIC-28 / SSOP-28 / UQFN-28 (4 x 4 x 0.5 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16F15275-I is a feature-rich 28-pin 8-bit Flash microcontroller from Microchip’s PIC16F1-27xx series, offering advanced analog peripherals including a 12-bit ADC with up to 24 channels and analog comparator modules. Featuring 28 KB of Flash program memory, 2 KB of RAM, 256 bytes of EEPROM, multiple serial communication ports, and an integrated temperature indicator, this device delivers exceptional analog integration and processing power for sophisticated embedded control applications. The industrial temperature variant ensures reliable operation from -40°C to +85°C.

Key Specifications

Core Architecture PIC RISC (enhanced mid-range, 14-bit)
Flash Program Memory 28 KB (16384 words)
RAM (Data Memory) 2048 bytes (2 KB)
EEPROM 256 bytes
ADC Resolution 12-bit, up to 24 channels
Comparators 2 analog comparators
Internal Oscillator 32 MHz (±1% calibrated)
Max Frequency 32 MHz (internal)
Supply Voltage 2.3V to 5.5V
I/O Pins Up to 25
Serial Ports 2x UART, 1x SPI, 1x I²C
Timers 5 timers (TMR0-TMR4, TMR6)
Operating Temperature -40°C to +85°C (Industrial)
Package Type SOIC-28 / SSOP-28 / UQFN-28

Features

  • 12-bit ADC with up to 24 channels + internal temperature sensor
  • 28 KB Flash program memory (high endurance)
  • 2 KB RAM + 256 B EEPROM
  • Dual analog comparators with hysteresis
  • 32 MHz high-accuracy internal oscillator
  • Two UARTs + SPI + I²C serial ports
  • 5 timers/counters with PWM capability
  • Multiple CCP/PWM modules
  • Industrial temperature range
  • Memory Access Partition (MAP) for code protection

Applications

  • Advanced sensor data acquisition
  • Industrial process controllers
  • Motor control and drives
  • Smart sensor hubs
  • Medical devices and monitoring
  • Test and measurement equipment
  • Building automation systems
  • Multi-protocol communication gateways

The PIC16F15275-I is an advanced 28-pin 8-bit Flash microcontroller from Microchip’s PIC16F1-27xx series, representing a high-end offering in the enhanced mid-range PIC16 family with exceptional analog and communication peripheral integration. With 28 KB of Flash program memory and 2 KB of RAM, this device provides substantial resources for complex application code including advanced control algorithms, multi-protocol communication stacks, and data processing routines. The flagship feature is the 12-bit successive approximation ADC with up to 24 analog input channels—an unusually high channel count for a 28-pin device—enabling comprehensive analog system monitoring without external multiplexers. The ADC also includes an integrated temperature indicator diode for on-chip temperature measurement. Two analog comparators with programmable hysteresis and output polarity provide fast analog event detection and threshold monitoring. The device supports an unusually rich set of serial communication peripherals: two independent UARTs (for dual serial links), one SPI port, and one I²C port, enabling multi-protocol communication in gateway and bridging applications. The 32 MHz internal oscillator delivers 8 MIPS of processing performance with ±1% factory calibration accuracy. The industrial temperature rating of -40°C to +85°C ensures reliable performance in demanding industrial and automotive environments.

The PIC16F15275-I operates on Microchip’s enhanced mid-range PIC Harvard architecture with a 14-bit instruction word, 49 instructions, and a 16-level deep hardware stack. At 32 MHz system clock (from the internal oscillator), the device achieves 8 MIPS of throughput with the standard 4-cycle per instruction architecture. The 12-bit ADC module features a successive approximation architecture with up to 24 multiplexed analog input channels, an internal voltage reference module (FVR), automated acquisition and conversion triggering, and hardware accumulation/averaging for improved noise performance. The ADC can be triggered by multiple sources including Timer overflows, comparator outputs, or external pin events. Two independent UART modules provide full-duplex asynchronous serial communication with support for LIN protocol, auto-baud detection, and wake-up on break. The SPI and I²C ports support standard, fast, and high-speed modes for peripheral expansion. The five timers (TMR0 8-bit, TMR1 16-bit, TMR2 8-bit with period, TMR4, TMR6) provide flexible time bases for PWM generation, input capture, output compare, and general timing functions. The integrated temperature indicator uses a bandgap-based temperature sensor connected to the ADC, enabling on-chip temperature measurement without external components. The Memory Access Partition (MAP) feature allows dividing Flash memory into boot and application regions for field-upgradable designs with secure bootloader support.

Port Count Type Key Functions
PORTA (RA0-RA7) 8 I/O Analog inputs AN0-AN7, OSC1/OSC2, MCLR, DAC
PORTB (RB0-RB7) 8 I/O Analog inputs AN8-AN15, SSP (SPI/I2C), IOC interrupts
PORTC (RC0-RC7) 8 I/O Analog inputs AN16-AN22, UARTs, CCP/PWM, Timer1 osc
MCLR/VPP 1 Input Master Clear / Programming voltage (shared with RA3)
VDD/VSS 2+ Power Power supply and ground pins
  • Multi-channel industrial sensor data acquisition and processing
  • Advanced PID process controllers with analog I/O
  • BLDC and stepper motor controllers with current sensing
  • Intelligent sensor hub aggregating multiple sensor inputs
  • Multi-protocol serial communication converters and gateways
  • Portable medical diagnostic and patient monitoring devices
Manufacturer Part Number Package Notes
Microchip PIC16F17176 SOIC-28 28KB Flash, 12-bit ADC + Op-Amps + DAC, analog rich
STMicro STM8L151 LQFP-32 STM8, 16KB Flash, 12-bit ADC, ultra low power
NXP LPC845 TSSOP-24 Cortex-M0+, 64KB Flash, 12-bit ADC, 32-bit
TI MSP430FR2433 TSSOP-28 FRAM, 15KB FRAM, 12-bit ADC, ultra low power
