PIC16F1704-I

14-pin analog-rich MCU, 7KB Flash, 12-bit ADC, 8-bit DAC, dual op-amps, CLC, 32MHz, industrial

5600

Effective Inventory
Go to Inquiry

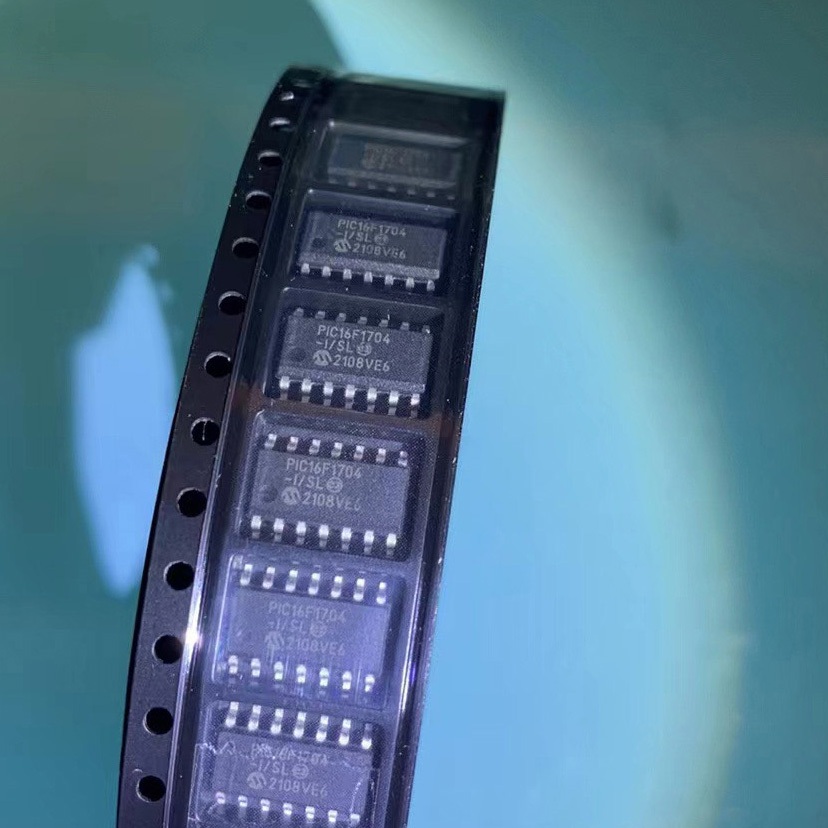

Image for reference only

Manufacturer Part：

PIC16F1704-I

Package：

SOIC-14 / TSSOP-14 (5.0 x 4.4 x 1.0 mm) / QFN-16

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16F1704-I is a 14-pin high-performance 8-bit Flash microcontroller with rich analog peripherals including a 12-bit ADC, 8-bit DAC, and op-amp/comparator modules from Microchip’s PIC16F170x series. Featuring 7 KB of Flash program memory, 512 bytes of RAM, integrated op-amps, and a configurable logic cell (CLC), this device brings advanced analog and digital integration to a compact 14-pin package. The industrial temperature variant operates reliably from -40°C to +85°C, ideal for smart sensor interfaces, analog signal conditioning, battery monitoring, and compact embedded control applications.

Key Specifications

Core Architecture PIC RISC (enhanced mid-range)
Flash Program Memory 7 KB (4096 words)
RAM (Data Memory) 512 bytes
EEPROM 256 bytes
ADC 12-bit, up to 9 channels
DAC 8-bit buffered
Operational Amplifiers 2 (op-amp / comparator modes)
Internal Oscillator 32 MHz (±1% calibrated)
Supply Voltage 2.3V to 5.5V
I/O Pins Up to 12
Serial Port MSSP (SPI/I²C) + EUSART
CLC Module 1 (Configurable Logic Cell)
Operating Temperature -40°C to +85°C (Industrial)
Package Type SOIC-14 / TSSOP-14 / QFN-16

Features

  • 12-bit ADC (9-ch) + 8-bit DAC + 2 op-amps
  • 7KB Flash + 512B RAM + 256B EEPROM
  • 32 MHz high-accuracy internal oscillator
  • EUSART + MSSP (SPI/I²C) serial ports
  • Configurable Logic Cell (CLC)
  • Low-Current Power-saving modes
  • 12 I/O pins with interrupt capability
  • Industrial temperature: -40°C to +85°C
  • 1.8V to 5.5V wide operating voltage

Applications

  • Smart sensor signal conditioning
  • Analog front-end for sensors
  • Battery monitoring and fuel gauging
  • Portable medical devices
  • Industrial sensor transmitters
  • LED lighting with analog dimming
  • Power supply control loops
  • Wearable devices

The PIC16F1704-I is a 14-pin member of Microchip’s PIC16F170x family of highly integrated 8-bit microcontrollers with advanced analog peripherals including a 12-bit ADC, 8-bit DAC, and two operational amplifiers/comparators. This combination of precision analog peripherals with a high-performance 8-bit CPU core in a compact 14-pin package makes the device ideal for sensor interfaces and analog signal conditioning applications where board space is limited. The integrated op-amps can be configured as operational amplifiers for signal amplification and filtering, or as comparators for threshold detection, eliminating the need for external analog ICs in many designs. With 7 KB of Flash program memory, 512 bytes of RAM, and 256 bytes of EEPROM, the PIC16F1704 provides sufficient resources for moderately complex firmware including calibration algorithms, digital filtering, and communication protocol handling. The Configurable Logic Cell (CLC) allows custom combinational and sequential logic functions to be implemented in hardware without consuming CPU cycles, enabling high-speed signal processing and event handling. The 32 MHz internal oscillator delivers 8 MIPS of processing performance with ±1% factory calibration. The industrial temperature range of -40°C to +85°C ensures reliable performance in a wide range of environmental conditions.

The PIC16F1704-I is based on Microchip’s enhanced mid-range PIC architecture with a 14-bit instruction set, 49 instructions, and a 16-level deep hardware stack. At 32 MHz system clock, the device achieves 8 MIPS execution rate (4 cycles per instruction). The two operational amplifier modules are highly configurable, supporting op-amp mode (with internal feedback networks), comparator mode (with hysteresis), and can be interconnected with the ADC and DAC for closed-loop analog signal processing. The 12-bit ADC module features a successive approximation architecture with up to 9 analog input channels, automated acquisition control, and hardware averaging for noise reduction. The 8-bit buffered DAC provides a programmable analog voltage output for reference generation and waveform synthesis. The CLC (Configurable Logic Cell) module allows users to implement custom digital logic functions—such as AND, OR, XOR, D flip-flop, and JK flip-flop—directly in hardware, with inputs selectable from I/O pins, peripheral outputs, and internal signals. This enables high-speed signal processing and timing functions that would be too fast for software-based approaches. The EUSART and MSSP serial ports provide communication options for UART, SPI, and I²C protocols. Multiple power management modes including Sleep, Doze, and Idle allow significant power reduction for battery-operated devices. The internal oscillator supports selectable frequencies from 31 kHz to 32 MHz.

Pin Name Type Function
1 VDD Power Positive supply voltage (2.3V to 5.5V)
2 RA5 / OPA1IN+ / ANB0 I/O RA5 / Op-Amp 1 non-inverting input / Analog B0
3 RA4 / OPA1OUT / ANB1 I/O RA4 / Op-Amp 1 output / Analog B1
4 RA3 / MCLR / VPP Input RA3 / Master Clear / Programming voltage
5 RA2 / OPA2IN+ / ANB2 I/O RA2 / Op-Amp 2 non-inverting input / Analog B2
6 RA1 / OPA1IN-/OPA2IN- I/O RA1 / Op-Amp 1/2 inverting input
7 RA0 / OPA2OUT / DACOUT I/O RA0 / Op-Amp 2 output / DAC output
8 VSS Power Ground reference
9 RB0 / INT / SDA / AN0 I/O RB0 / External interrupt / I2C data / ADC CH0
10 RB1 / RX / SCL / AN1 I/O RB1 / UART RX / I2C clock / ADC CH1
11 RB2 / TX / SCK / AN2 I/O RB2 / UART TX / SPI clock / ADC CH2
12 RB3 / CCP1 / SDI / AN3 I/O RB3 / CCP1 / SPI data in / ADC CH3
13 RB4 / SDO / AN4 I/O RB4 / SPI data out / ADC CH4
14 RB5 / T0CKI / AN5 I/O RB5 / Timer0 clock / ADC CH5
  • Intelligent sensor nodes with on-chip analog signal conditioning
  • Bridge sensor amplification and digitization (load cells, pressure)
  • Battery pack monitoring and state-of-charge estimation circuits
  • Portable medical sensors (ECG, pulse oximeter front-ends)
  • 4-20mA industrial current loop transmitter interfaces
  • High-precision LED drivers with analog current control
Manufacturer Part Number Package Notes
Microchip PIC16F1705 SOIC-14 14KB Flash, 1KB RAM, more memory, same pinout
STMicro STM8L051 TSSOP-14 STM8, 8KB Flash, 12-bit ADC, low power
Silicon Labs EFM8SB20 QFN-24 8051, 64KB Flash, 12-bit ADC, low power
TI MSP430G2553 TSSOP-14 16-bit RISC, 16KB Flash, 10-bit ADC
