PIC16F1825-E

14-pin extended temp MCU, 14KB Flash, 512B RAM, 10-bit ADC, mTouch, -40°C to +125°C

2500

Effective Inventory
Go to Inquiry

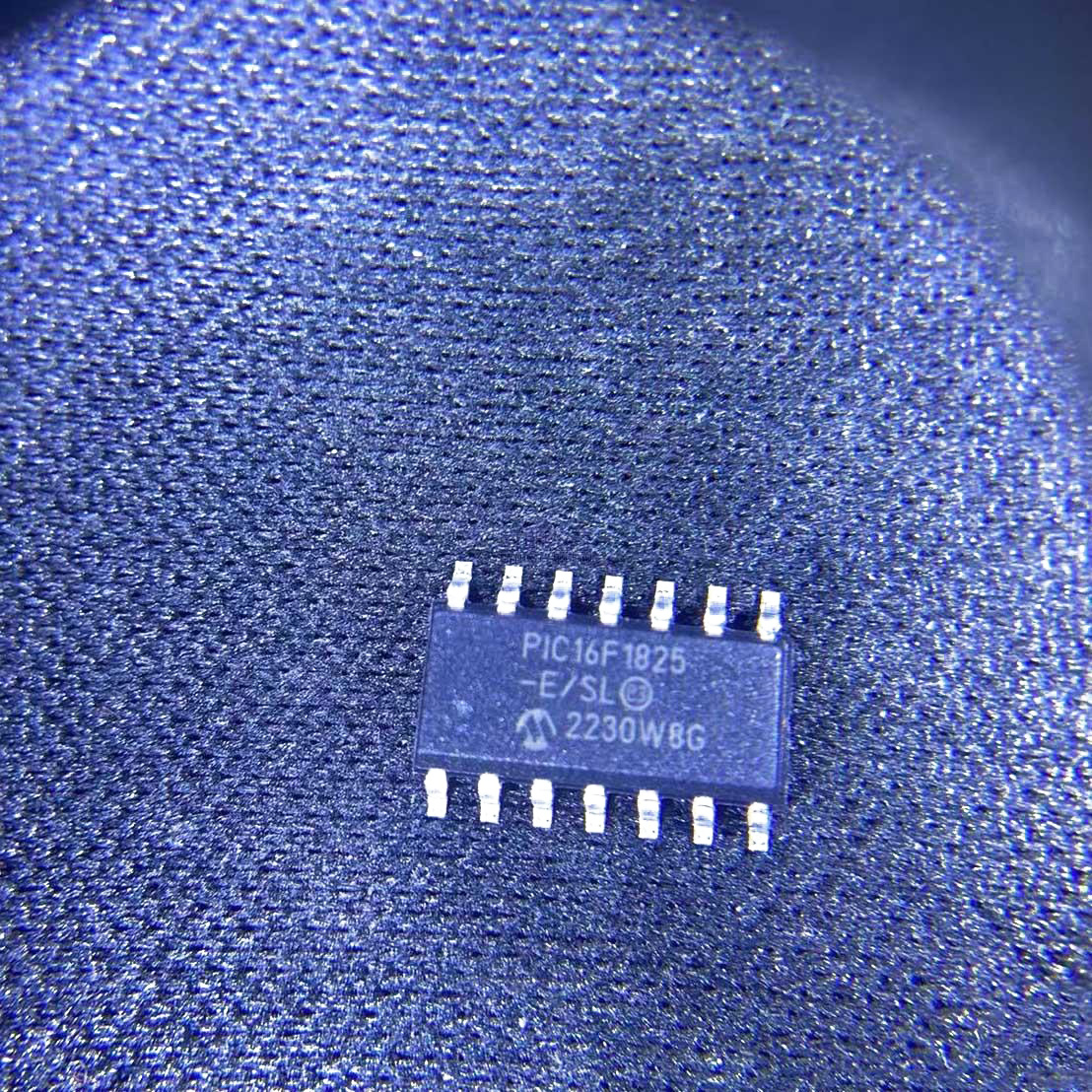

Image for reference only

Manufacturer Part：

PIC16F1825-E

Package：

SOIC-14 / TSSOP-14 / QFN-16 (3 x 3 x 0.5 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16F1825-E is a 14-pin enhanced mid-range 8-bit Flash microcontroller with extended temperature range, featuring 14 KB of Flash program memory, 512 bytes of RAM, 256 bytes of EEPROM, a 10-bit ADC with 10 channels, mTouch capacitive touch support, and multiple serial communication ports. As the higher-memory variant of the PIC16F18xx family, this device provides double the program space of the PIC16F1823 for more complex firmware. The extended temperature grade operates from -40°C to +125°C, making it ideal for automotive, under-hood, and high-temperature industrial applications.

Key Specifications

Core Architecture PIC RISC (enhanced mid-range, 14-bit)
Flash Program Memory 14 KB (8192 words)
RAM (Data Memory) 512 bytes
EEPROM 256 bytes
ADC Resolution 10-bit, 10 channels
Capacitive Touch mTouch (up to 9 channels)
Internal Oscillator 32 MHz (±1% calibrated)
Supply Voltage 1.8V to 5.5V
I/O Pins 12
Serial Ports EUSART + MSSP (SPI/I²C)
PWM Channels 4 (2 CCP + 2 ECCP)
Operating Temperature -40°C to +125°C (Extended)
Package Type SOIC-14 / TSSOP-14 / QFN-16

Features

  • 14KB Flash program memory (double PIC16F1823)
  • 512 bytes RAM + 256 bytes EEPROM
  • 10-bit ADC with 10 analog channels
  • mTouch capacitive touch sensing support
  • 4 PWM channels (CCP + ECCP)
  • EUSART + MSSP (SPI/I²C) serial ports
  • 32 MHz high-accuracy internal oscillator
  • Extended temperature: -40°C to +125°C
  • Data Signal Modulator (DSM)
  • Wide 1.8V to 5.5V voltage range

Applications

  • Automotive under-hood electronics
  • High-temperature industrial sensors
  • Capacitive touch interfaces (automotive)
  • Engine control peripherals
  • LED lighting (high-temp environments)
  • Motor control (automotive)
  • Power supply monitoring
  • Industrial automation

The PIC16F1825-E is the extended temperature grade variant of the PIC16F1825, a 14-pin enhanced mid-range 8-bit microcontroller with 14 KB of Flash program memory—double the capacity of the PIC16F1823. This increased program space accommodates more complex application firmware including advanced communication protocols, touch processing algorithms, and control logic, all in a compact 14-pin package. The device features a rich set of peripherals including a 10-channel 10-bit ADC with mTouch capacitive touch sensing support, four PWM channels (two CCP and two ECCP modules), and dual serial communication ports (EUSART and MSSP with SPI/I²C). The 32 MHz high-accuracy internal oscillator delivers 8 MIPS of processing performance with ±1% factory calibration. The extended temperature range of -40°C to +125°C makes this device particularly well-suited for automotive under-hood applications, high-temperature industrial environments, and other extreme temperature applications where standard commercial and industrial grade devices cannot operate. With its compact 14-pin package, capacitive touch capability, and extended temperature rating, the PIC16F1825-E is an excellent choice for automotive user interfaces, high-temperature sensor nodes, and industrial control systems requiring reliable operation in challenging thermal environments.

The PIC16F1825-E operates on Microchip’s enhanced mid-range PIC Harvard architecture with a 14-bit instruction word, 49 instructions, and a 16-level deep hardware stack. At 32 MHz system clock, the device achieves 8 MIPS of throughput with the 4-cycle per instruction architecture. The 14 KB of Flash program memory is organized as 8192 14-bit words, with high write/erase endurance of 10,000 cycles for in-system reprogrammability. The 10-bit ADC with 10 analog channels supports both conventional voltage measurement and capacitive touch sensing via Microchip’s mTouch technology, which uses the ADC’s charge measurement capability to detect changes in electrode capacitance caused by finger proximity. The EUSART module provides full-duplex UART communication with auto-baud detection and LIN bus support. The MSSP module handles both SPI and I²C serial protocols. The two CCP and two ECCP modules support input capture, output compare, and PWM generation with up to 10-bit resolution, providing flexible waveform generation for LED dimming, motor control, and power regulation. The Data Signal Modulator (DSM) module combines a data signal with a carrier signal for applications such as IR remote control transmission. Multiple power management modes—including Sleep, Doze, and Idle—allow significant power savings for duty-cycled and battery-powered applications. The extended temperature range is achieved through careful device characterization and process control, ensuring reliable operation at high junction temperatures.

Pin Name Type Key Functions
1 VDD Power Positive supply voltage (1.8V to 5.5V)
2 RA5 / AN4 / CCP2 I/O RA5 / ADC input 4 / CCP2 PWM/compare
3 RA4 / AN3 / CCP1 I/O RA4 / ADC input 3 / CCP1 PWM/compare
4 RA3 / MCLR / VPP Input RA3 (input only) / Master Clear / VPP
5 RA2 / AN2 / T0CKI I/O RA2 / ADC input 2 / Timer0 external clock
6 RA1 / AN1 / VREF- I/O RA1 / ADC input 1 / ADC negative reference
7 RA0 / AN0 / VREF+ I/O RA0 / ADC input 0 / ADC positive reference
8 VSS Power Ground reference (0V)
9 RB0 / AN10 / INT I/O RB0 / ADC input 10 / External interrupt
10 RB1 / RX / AN9 I/O RB1 / EUSART receive / ADC input 9
11 RB2 / TX / AN8 / SCK I/O RB2 / EUSART transmit / ADC 8 / SPI clock
12 RB3 / AN7 / SDI I/O RB3 / ADC input 7 / SPI data input
13 RB4 / SDO / AN6 I/O RB4 / SPI data output / ADC input 6
14 RB5 / SCL/SDA / AN5 I/O RB5 / I2C clock/data / ADC input 5
  • Automotive under-hood sensor interface and control modules
  • High-temperature industrial sensor transmitters (125°C ambient)
  • Automotive capacitive touch buttons for interior controls
  • Engine compartment peripheral controllers and actuators
  • High-power LED driver modules in enclosed fixtures
  • Automotive small motor and solenoid controllers
Manufacturer Part Number Package Notes
Microchip PIC16F1829 SOIC-16 14KB Flash, 16 I/O, more pins, same temp range
STMicro STM8AF6213 TSSOP-14 Automotive STM8, 4KB Flash, -40/+125°C, AEC-Q100
NXP S9S08SG4 TSSOP-16 S08 core, 4KB Flash, automotive grade
Renesas R5F1026A LSSOP-14 RL78 core, 4KB Flash, -40/+125°C
Recommend Parts
