PIC16F57-I

8-bit Baseline PIC MCU, 3KB Flash, 72B RAM, 20MHz, 20 I/O, low-cost

12453

Effective Inventory
Go to Inquiry

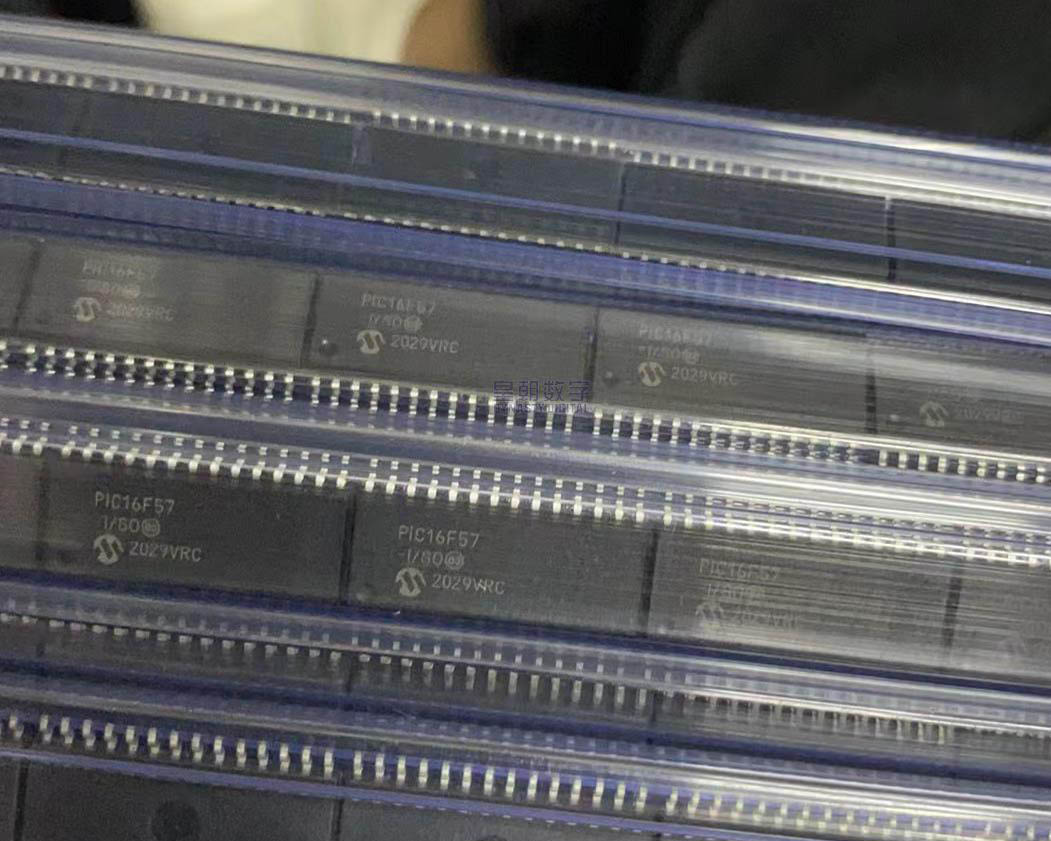

Image for reference only

Manufacturer Part：

PIC16F57-I

Package：

28-pin PDIP / SOIC / SSOP

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16F57-I is a 28-pin, 8-bit Flash-based CMOS microcontroller from Microchip Technology, based on the Baseline PIC architecture with only 33 single-word instructions. Featuring 3KB (2K x 12 words) of Flash program memory and 72 bytes of RAM, this cost-effective MCU operates at up to 20 MHz with a 200 ns instruction cycle time. Housed in a 28-pin package with 20 I/O pins, it includes a single 8-bit Timer0 with prescaler, a Watchdog Timer with on-chip RC oscillator, and In-Circuit Serial Programming (ICSP) capability. With its minimal peripheral set and low-cost positioning, the PIC16F57 is ideal for simple control applications, cost-sensitive consumer products, industrial sensors, and appliance controls where basic I/O control and small program footprint are sufficient.

Key Specifications

Core Architecture 8-bit PIC (Baseline Core)
Program Memory 3KB Flash (2K x 12 words)
RAM 72 bytes
Data EEPROM None
Maximum Speed 20 MHz (5 MIPS)
Operating Voltage 2.0V to 5.5V
I/O Pins 20
ADC None
Comparators None
Timers 1 x 8-bit (TMR0)
PWM None
Communication None
Instruction Set 33 single-word instructions
Stack Levels 2
Operating Temperature -40°C to +85°C (Industrial)
Package 28-pin PDIP / SOIC / SSOP

Features

  • Baseline PIC architecture with only 33 easy-to-learn instructions
  • All single-cycle instructions except program branches (two cycles)
  • 12-bit wide instruction word, 8-bit wide data path
  • 2-level deep hardware stack
  • Direct, indirect, and relative addressing modes
  • 8-bit Timer0 with 8-bit programmable prescaler
  • Watchdog Timer (WDT) with on-chip RC oscillator for reliable operation
  • Power-on Reset (POR) and Device Reset Timer (DRT)
  • In-Circuit Serial Programming (ICSP) via two pins
  • Programmable code protection for program memory security
  • Power-saving Sleep mode with low standby current (100 nA typical)
  • Wide operating voltage range: 2.0V to 5.5V
  • High current I/O pins for direct LED drive (25 mA sink/source)

Applications

  • Simple industrial control and sensor interfaces
  • Cost-sensitive consumer electronics

The PIC16F57 is a 28-pin Flash-based 8-bit CMOS microcontroller from Microchip Technology, featuring the Baseline PIC architecture. With only 33 single-word instructions and a minimal set of peripherals, this device is designed for cost-sensitive applications requiring basic I/O control. It offers 3KB (2K x 12 words) of Flash program memory and 72 bytes of general-purpose RAM. The MCU operates at up to 20 MHz with a 200 ns instruction cycle, providing 5 MIPS of processing power. Key features include an 8-bit Timer0 with programmable prescaler, a Watchdog Timer with its own on-chip RC oscillator, Power-on Reset, and In-Circuit Serial Programming (ICSP) capability. With 20 I/O pins capable of sourcing/sinking 25 mA each, it can directly drive LEDs and other loads without external drivers. The PIC16F57 is available in PDIP, SOIC, and SSOP packages, supporting industrial temperature range (-40°C to +85°C) and a wide operating voltage of 2.0V to 5.5V.

The PIC16F57 is based on the Baseline PIC RISC architecture, executing instructions fetched from 12-bit wide Flash program memory. The core uses a 2-level deep hardware stack for subroutine calls and returns. Program memory addressing is achieved through the program counter (PC) and PC latch (PCLATH) register. Data memory consists of 72 bytes of general-purpose SRAM (file registers) accessible via direct, indirect, or relative addressing modes. The Arithmetic Logic Unit (ALU) performs 8-bit arithmetic and logical operations, working with the W (working) register and file registers. Timer0 is an 8-bit timer/counter with a programmable 8-bit prescaler, capable of timing operations or counting external events on the T0CKI pin. The Watchdog Timer (WDT) uses an independent on-chip RC oscillator to provide a reset if software fails to clear it periodically, enhancing system reliability. Power-on Reset (POR) and Device Reset Timer (DRT) ensure proper startup sequencing. In Sleep mode, the oscillator is stopped, reducing current consumption to as low as 100 nA for battery-powered applications.

Pin (PDIP-28/SOIC-28) Name Type Function
1 MCLR/VPP I/P Master Clear / Programming Voltage
2 RA0/T0CKI I/O Port A I/O / Timer0 Clock Input
3 RA1 I/O Port A I/O
4 RA2 I/O Port A I/O
5 RA3 I/O Port A I/O
6 RA4/T0CKI I/O Port A I/O / Timer0 Clock Input
7 RA5 I/O Port A I/O
8 VSS P Ground Reference
9 RB0/INT I/O Port B I/O / External Interrupt
10 RB1 I/O Port B I/O
11 RB2 I/O Port B I/O
12 RB3 I/O Port B I/O
13 RB4 I/O Port B I/O
14 RB5 I/O Port B I/O
15 RB6/T1CKI I/O Port B I/O / Timer1 Clock Input
16 RB7 I/O Port B I/O
17 VDD P Positive Supply Voltage
18 RC0 I/O Port C I/O
19 RC1 I/O Port C I/O
20 RC2 I/O Port C I/O
21 RC3 I/O Port C I/O
22 RC4 I/O Port C I/O
23 RC5 I/O Port C I/O
24 RC6 I/O Port C I/O
25 RC7 I/O Port C I/O
26 OSC1/CLKIN I Oscillator Input / Clock Input
27 OSC2/CLKOUT O Oscillator Output / Clock Output
28 VSS P Ground Reference
  • Simple industrial sensor interfaces and limit switches
  • Cost-sensitive consumer electronics and toys
  • Appliance control and simple motor control
  • LED display drivers and indicator panels
  • Basic logic replacement and glue logic functions
  • Battery-powered low-cost remote controls
  • Automotive simple switch interfaces
Manufacturer Part Number Package Notes
Microchip PIC16F54-I 18-pin 512 words Flash, 12 I/O, smaller package
Microchip PIC16F59-I 40-pin 2K words Flash, 32 I/O, larger package
Microchip PIC12F508-I 8-pin 768B Flash, 6 I/O, ultra-small
Microchip PIC16F676-I 14-pin 1.75KB Flash, 10-bit ADC
Microchip PIC16F630-I 14-pin 1.75KB Flash, comparators
