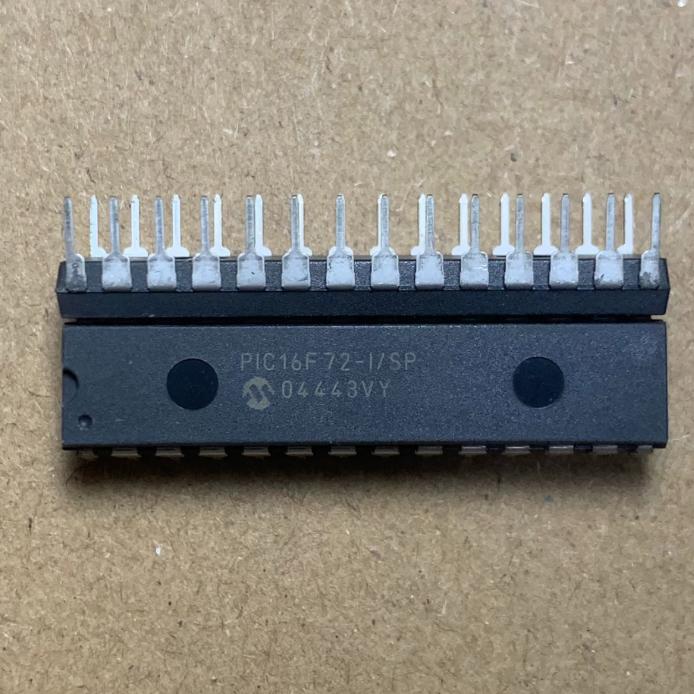

Image for reference only

Manufacturer Part：

PIC16F72-I

Package：

28-pin PDIP / SOIC / SSOP / QFN

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16F72-I is a 28-pin, 8-bit Flash-based CMOS microcontroller from Microchip Technology based on the Mid-Range PIC architecture. Featuring 35 single-word instructions and an 8-level deep hardware stack, this classic MCU offers 3.5KB (2K x 14 words) of Flash program memory and 128 bytes of RAM (no EEPROM). Operating at up to 20 MHz with a 200 ns instruction cycle, it integrates a 5-channel 8-bit ADC, a Capture/Compare/PWM (CCP) module, a Synchronous Serial Port (SSP) configurable as SPI or I2C, and three timers (TMR0, TMR1, TMR2). As a well-established, cost-effective general-purpose microcontroller with a proven track record, the PIC16F72 is ideal for industrial control, appliance control, simple motor control, consumer electronics, and applications requiring basic ADC and serial communication in a 28-pin package.

Key Specifications

Core Architecture 8-bit PIC (Mid-Range Core)
Program Memory 3.5KB Flash (2K x 14 words)
RAM 128 bytes
Data EEPROM None
Maximum Speed 20 MHz (5 MIPS)
Operating Voltage 2.0V to 5.5V
I/O Pins 22
ADC 8-bit, 5 channels
Comparators None
Timers 2 x 8-bit (TMR0/TMR2) + 1 x 16-bit (TMR1)
PWM 1 x CCP (Capture/Compare/PWM), 10-bit
Communication SPI, I2C (SSP module)
Oscillator External (RC, XT, HS, LP options)
Stack Levels 8
Operating Temperature -40°C to +85°C (Industrial)
Package 28-pin PDIP / SOIC / SSOP / QFN

Features

  • Mid-Range PIC architecture with 35 single-cycle instructions and 8-level stack
  • 5-channel 8-bit Analog-to-Digital Converter (ADC)
  • Capture/Compare/PWM (CCP) module: 16-bit capture, 16-bit compare, 10-bit PWM
  • Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C (Slave)
  • Three timers: TMR0 (8-bit), TMR1 (16-bit), TMR2 (8-bit)
  • Timer1 can be incremented during Sleep via external crystal/clock
  • Brown-out Reset (BOR) with brown-out detection circuitry
  • Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST)
  • Watchdog Timer (WDT) with on-chip RC oscillator for reliable operation
  • Programmable code protection for program memory security
  • Power-saving Sleep mode
  • In-Circuit Serial Programming (ICSP) via two pins
  • High sink/source current: 25 mA per I/O pin
  • Pinout compatible with PIC16C72/72A and PIC16F872
  • Wide operating voltage range: 2.0V to 5.5V
  • Industrial temperature range: -40°C to +85°C

Applications

  • Industrial control systems and sensor interfaces
  • Appliance control and white goods
  • Simple DC motor control and LED dimming (PWM)
  • Consumer electronics and toys
  • Automotive simple control modules
  • Low-cost data acquisition systems
  • Battery-powered devices with SPI/I2C sensors

The PIC16F72 is a 28-pin Flash-based 8-bit CMOS microcontroller from Microchip Technology, a well-established member of the Mid-Range PIC16F family. This general-purpose MCU features the classic Mid-Range PIC architecture with 35 instructions and an 8-level deep hardware stack, offering 3.5KB (2K x 14 words) of Flash program memory and 128 bytes of RAM. It operates at up to 20 MHz with a 200 ns instruction cycle, delivering 5 MIPS of processing power. Key peripherals include a 5-channel 8-bit ADC for analog sensing, a Capture/Compare/PWM (CCP) module for timing and PWM applications, and a Synchronous Serial Port (SSP) supporting SPI and I2C communication. Three timer modules (TMR0, TMR1, TMR2) provide flexible timing and counting functions. The device supports multiple oscillator options including RC, XT, HS, and LP modes, allowing design flexibility for cost or performance optimization. With its 22 I/O pins capable of 25 mA sink/source current, it can directly drive LEDs and other loads. The PIC16F72 is pinout compatible with the legacy PIC16C72/72A and PIC16F872 devices, making it a drop-in upgrade path. Available in PDIP, SOIC, SSOP, and QFN packages with industrial temperature range (-40°C to +85°C) and wide operating voltage (2.0V-5.5V).

The PIC16F72 is based on the Mid-Range PIC RISC architecture with Harvard design, providing separate buses for 14-bit program memory and 8-bit data memory. Most of the 35 instructions execute in a single clock cycle, with an 8-level deep hardware stack supporting subroutine calls and interrupt context saving. The 8-bit ADC uses a successive approximation register (SAR) architecture to convert analog voltages from 5 input channels, with 8-bit resolution and a 0-5V input range relative to VDD. The CCP (Capture/Compare/PWM) module provides three modes: Capture mode captures the time of an external event with 16-bit resolution (12.5 ns max at 20 MHz), Compare mode generates timed output events with 16-bit resolution (200 ns), and PWM mode generates up to 10-bit resolution PWM signals for motor control and LED dimming. The Synchronous Serial Port (SSP) handles both SPI (Master/Slave) and I2C (Slave) communication in hardware, offloading serial protocol processing from the CPU. Three timer modules provide timing functions: Timer0 (8-bit with 8-bit prescaler), Timer1 (16-bit with prescaler and external gate), and Timer2 (8-bit with period register, prescaler, and postscaler), often used as the PWM time base. The Watchdog Timer uses an independent on-chip RC oscillator to provide a system reset if software hangs. Power management includes Sleep mode with low current consumption for battery operation. The Flash program memory supports In-Circuit Serial Programming (ICSP) for field re-programmability.

Pin (PDIP-28/SOIC-28) Name Type Function
1 MCLR/VPP/RA5 I/P Master Clear / Programming Voltage / Port A I/O
2 RA0/AN0 I/O Port A I/O / ADC Channel 0
3 RA1/AN1 I/O Port A I/O / ADC Channel 1
4 RA2/AN2/VREF- I/O Port A I/O / ADC Ch2 / Vref Negative
5 RA3/AN3/VREF+ I/O Port A I/O / ADC Ch3 / Vref Positive
6 RA4/T0CKI I/O Port A I/O / Timer0 Clock Input
7 RA5/SS I/O Port A I/O / SPI Slave Select
8 VSS P Ground Reference
9 RA7/OSC1/CLKIN I Port A I/O / Oscillator Input / Clock Input
10 RA6/OSC2/CLKOUT O Port A I/O / Oscillator Output / Clock Output
11 RC0/T1OSO/T1CKI I/O Port C I/O / Timer1 Osc Out / Timer1 Clock
12 RC1/T1OSI/CCP1 I/O Port C I/O / Timer1 Osc In / CCP1
13 RC2/CCP1 I/O Port C I/O / CCP1 (alternate)
14 RC3/SCK/SCL I/O Port C I/O / SPI Clock / I2C Clock
15 RC4/SDI/SDA I/O Port C I/O / SPI Data In / I2C Data
16 RC5/SDO I/O Port C I/O / SPI Data Out
17 RC6 I/O Port C I/O
18 RC7 I/O Port C I/O
19 VSS P Ground Reference
20 VDD P Positive Supply Voltage
21 RB0/INT I/O Port B I/O / External Interrupt
22 RB1 I/O Port B I/O
23 RB2 I/O Port B I/O
24 RB3/AN4/PGM I/O Port B I/O / ADC Ch4 / Low-Voltage Prog
25 RB4 I/O Port B I/O
26 RB5 I/O Port B I/O
27 RB6/ICSPCLK I/O Port B I/O / ICSP Clock
28 RB7/ICSPDAT I/O Port B I/O / ICSP Data
  • Industrial control panels and sensor interface modules
  • Home appliance control (white goods, small appliances)
  • Simple DC motor speed control and LED dimming
  • Low-cost consumer electronics and educational kits
  • Automotive body control and simple sensor modules
  • Basic data acquisition and monitoring systems
  • Battery-powered devices with SPI/I2C sensor connectivity
Manufacturer Part Number Package Notes
Microchip PIC16F73-I 28-pin 7KB Flash, 192B RAM, USART added
Microchip PIC16F74-I 40-pin 7KB Flash, 192B RAM, 8-ch ADC
Microchip PIC16F872-I 28-pin Pin compatible, 3.5KB Flash, 10-bit ADC
Microchip PIC16F690-I 20-pin Smaller, 7KB Flash, 10-bit ADC, EUSART
Microchip PIC16F1827-I 18-pin Newer gen, 7KB Flash, enhanced peripherals
