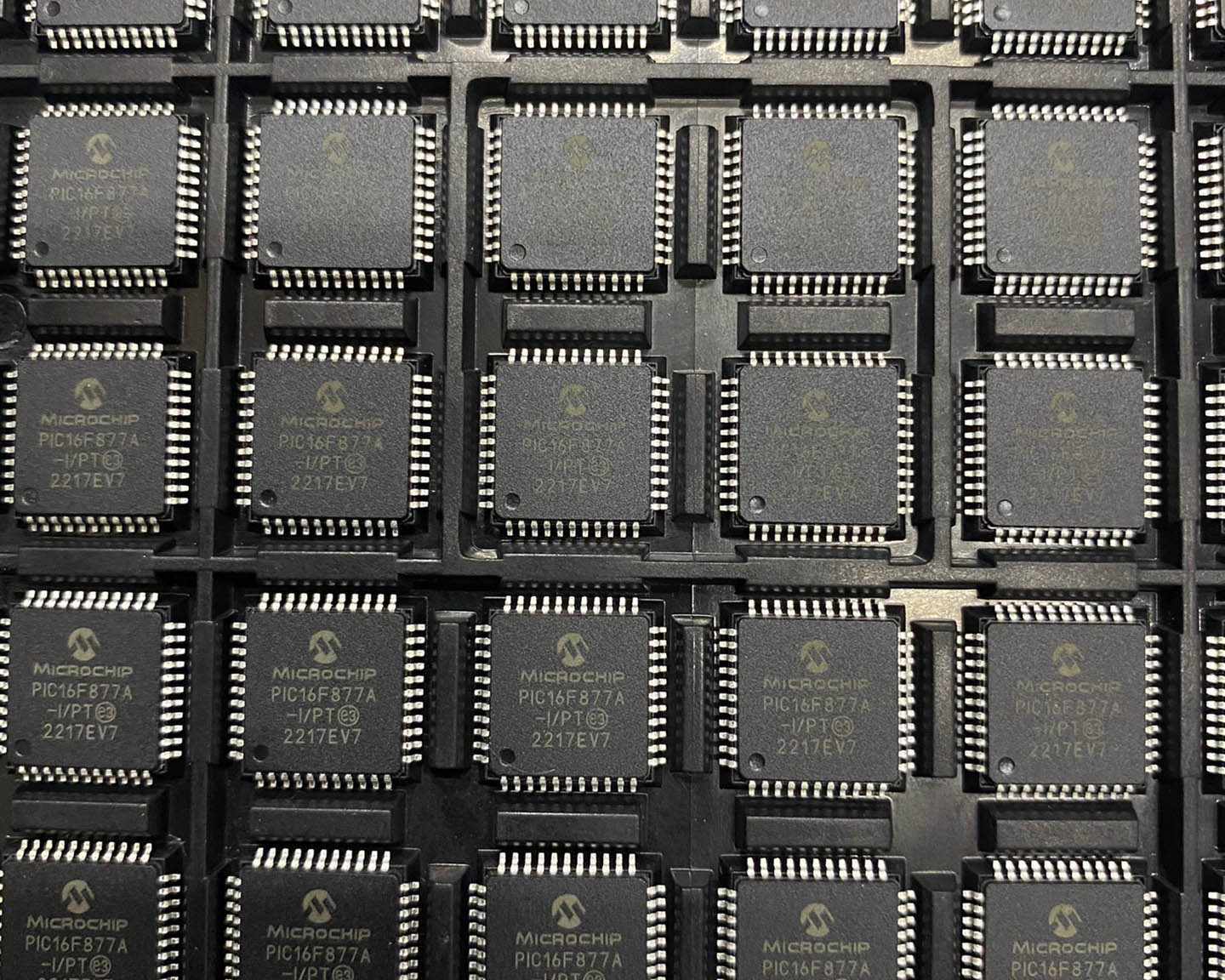

PIC16F877A-I

8-bit PIC MCU 'A' rev, 14KB Flash, 368B RAM, 256B EEPROM, 8-ch 10-bit ADC, 2 CCP, 2 comparators, SPI/I2C/USART, PSP, ICD, self-program, industrial -40°C~85°C

9527

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

PIC16F877A-I

Package：

40-pin PDIP / 44-pin PLCC / 44-pin TQFP / QFN

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The PIC16F877A-I is the enhanced ‘A’ revision of the legendary PIC16F877 40-pin, 8-bit Flash-based CMOS microcontroller from Microchip Technology. Building on the classic design with significant improvements, it features enhanced Flash memory (100K erase/write cycles), self-programming capability, built-in In-Circuit Debug (ICD), and improved electrical characteristics. Offering 14KB (8K x 14 words) of Flash program memory, 368 bytes of RAM, and 256 bytes of data EEPROM (1M cycles), it operates at up to 20 MHz with a 200 ns instruction cycle across an industrial temperature range of -40°C to +85°C. The comprehensive peripheral set includes an 8-channel 10-bit ADC, two analog comparators, two CCP modules, SSP (SPI/I2C), USART, and a Parallel Slave Port (PSP). As one of the most popular 8-bit MCUs ever made, the PIC16F877A remains a benchmark for industrial control, automotive electronics, consumer products, and embedded system education worldwide.

Key Specifications

Core Architecture 8-bit PIC (Mid-Range Core, ‘A’ revision)
Program Memory 14KB Flash (8K x 14 words), 100K E/W cycles
RAM 368 bytes
Data EEPROM 256 bytes, 1M E/W cycles, >40yr retention
Maximum Speed 20 MHz (5 MIPS)
Operating Voltage 2.0V to 5.5V
I/O Pins 33
ADC 10-bit, 8 channels
Comparators 2
Timers 2 x 8-bit (TMR0/TMR2) + 1 x 16-bit (TMR1)
PWM 2 x CCP (Capture/Compare/PWM), 10-bit
Communication SPI, I2C (SSP), USART
Parallel Port PSP (Parallel Slave Port), 8-bit
Debug Built-in In-Circuit Debug (ICD)
Self-Programming Yes (self-write Flash capability)
Oscillator External (RC, XT, HS, LP, EC options)
Stack Levels 8
Operating Temperature -40°C to +85°C (Industrial)
Package 40-pin PDIP / 44-pin PLCC / 44-pin TQFP / QFN

Features

  • Enhanced ‘A’ revision with improved Flash and EEPROM endurance
  • High-performance RISC CPU with only 35 single-word instructions
  • Enhanced Flash: 100,000 erase/write cycles typical
  • Data EEPROM: 256 bytes, 1M cycles, >40 year retention
  • Self-reprogrammable under software control (bootloader support)
  • Built-in In-Circuit Debug (ICD) via two pins
  • 8-channel 10-bit Analog-to-Digital Converter (ADC)
  • Two analog comparators with programmable on-chip voltage reference
  • Two Capture/Compare/PWM (CCP) modules: 16-bit capture, 10-bit PWM
  • Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C (Master/Slave)
  • Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)
  • Parallel Slave Port (PSP) with 8-bit wide read/write interface
  • Timer0: 8-bit timer/counter with 8-bit programmable prescaler
  • Timer1: 16-bit timer/counter with prescaler, can increment during Sleep
  • Timer2: 8-bit timer/counter with period register, prescaler, and postscaler
  • Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST)
  • Programmable Brown-out Reset (BOR)
  • Watchdog Timer (WDT) with on-chip RC oscillator
  • In-Circuit Serial Programming (ICSP) via two pins
  • Programmable code protection for program and data memory
  • Power-saving Sleep mode
  • High sink/source current: 25 mA per I/O pin
  • Industrial temperature range: -40°C to +85°C
  • Pinout compatible with PIC16F877 (original)

Applications

  • Industrial control systems and PLCs
  • Automotive electronics and body control modules
  • Consumer electronics and smart appliances
  • Motor control and power management systems
  • Data acquisition and multi-channel sensor monitoring
  • Medical devices and diagnostic equipment
  • Embedded systems education and development platforms

The PIC16F877A-I is the enhanced ‘A’ revision of Microchip’s legendary PIC16F877, widely regarded as one of the most popular 8-bit microcontrollers ever produced. This 40/44-pin Flash-based CMOS MCU features the Mid-Range PIC architecture with significant improvements over the original PIC16F877. Key enhancements include enhanced Flash memory with 100,000 erase/write cycles (vs. 1,000 for the original), self-programming capability enabling firmware updates via bootloader, and built-in In-Circuit Debug (ICD) support that eliminates the need for external debug headers. It offers 14KB (8K x 14 words) of Flash program memory, 368 bytes of RAM, and 256 bytes of data EEPROM with 1M erase/write cycles and >40 year data retention. Operating at up to 20 MHz (5 MIPS) across industrial temperature range (-40°C to +85°C), the peripheral set includes an 8-channel 10-bit ADC, two analog comparators with programmable voltage reference, two CCP modules, an SSP module for SPI/I2C (both Master and Slave modes with address masking), a USART for serial communication, and a Parallel Slave Port (PSP) for 8-bit parallel interface. Three timer modules (TMR0, TMR1, TMR2) provide flexible timing and PWM generation. With 33 I/O pins, programmable Brown-out Reset, Watchdog Timer, and code protection, the PIC16F877A is the industry-standard 8-bit MCU for industrial, automotive, consumer, medical, and educational applications.

The PIC16F877A-I operates on the Mid-Range PIC RISC architecture with Harvard design, providing separate 14-bit program memory and 8-bit data memory buses for concurrent access. The ‘A’ revision introduces enhanced Flash technology with 100x higher endurance (100K vs. 1K cycles) and self-programming capability via special Flash control registers, enabling the MCU to update its own program memory under software control – essential for bootloader and field-upgrade applications. The built-in ICD module allows real-time in-circuit debugging through the same two pins used for ICSP programming, significantly reducing development cost and complexity. The 10-bit ADC uses successive approximation register (SAR) architecture with 8 input channels and selectable voltage references. Two analog comparators with Comparator Voltage Reference (CVREF) enable threshold detection and window comparison. Two CCP modules provide 16-bit capture (12.5 ns resolution at 20 MHz), 16-bit compare, and up to 10-bit PWM resolution for motor control and power regulation. The SSP module handles both SPI and I2C (Master/Slave with 7-bit address masking and SMBus/PMBus compatibility) in hardware. The USART provides asynchronous RS-232 compatible and synchronous serial communication. The Parallel Slave Port (PSP) is an 8-bit bidirectional parallel interface for high-speed data transfer with external microprocessors. The 256 bytes of EEPROM provide high-endurance non-volatile storage. Power management includes Sleep mode, programmable Brown-out Reset, and Watchdog Timer with independent RC oscillator for reliable operation in industrial environments.

Pin (PDIP-40) Name Type Function
1 MCLR/VPP/RE3 I/P Master Clear / Programming Voltage / Port E I/O
2 RA0/AN0 I/O Port A I/O / ADC Channel 0
3 RA1/AN1 I/O Port A I/O / ADC Channel 1
4 RA2/AN2/VREF-/CVREF I/O Port A I/O / ADC Ch2 / Vref Neg / Comp Vref
5 RA3/AN3/VREF+ I/O Port A I/O / ADC Ch3 / Vref Positive
6 RA4/T0CKI I/O Port A I/O / Timer0 Clock Input
7 RA5/SS/AN4 I/O Port A I/O / SPI Slave Select / ADC Ch4
8 RE0/RD/AN5 I/O Port E I/O / PSP Read / ADC Ch5
9 RE1/WR/AN6 I/O Port E I/O / PSP Write / ADC Ch6
10 RE2/CS/AN7 I/O Port E I/O / PSP Chip Select / ADC Ch7
11 VSS P Ground Reference
12 RD0/PSP0 I/O Port D I/O / Parallel Slave Port Bit 0
13 RD1/PSP1 I/O Port D I/O / Parallel Slave Port Bit 1
14 RD2/PSP2 I/O Port D I/O / Parallel Slave Port Bit 2
15 RD3/PSP3 I/O Port D I/O / Parallel Slave Port Bit 3
16 RC0/T1OSO/T1CKI I/O Port C I/O / T1OSO / Timer1 Clock
17 RC1/T1OSI/CCP2 I/O Port C I/O / T1OSI / CCP2
18 RC2/CCP1 I/O Port C I/O / CCP1
19 RC3/SCK/SCL I/O Port C I/O / SPI Clock / I2C Clock
20 RD4/PSP4 I/O Port D I/O / Parallel Slave Port Bit 4
21 RD5/PSP5 I/O Port D I/O / Parallel Slave Port Bit 5
22 RD6/PSP6 I/O Port D I/O / Parallel Slave Port Bit 6
23 RD7/PSP7 I/O Port D I/O / Parallel Slave Port Bit 7
24 RC4/SDI/SDA I/O Port C I/O / SPI Data In / I2C Data
25 RC5/SDO I/O Port C I/O / SPI Data Out
26 RC6/TX/CK I/O Port C I/O / USART TX/Clock
27 RC7/RX/DT I/O Port C I/O / USART RX/Data
28 VSS P Ground Reference
29 VDD P Positive Supply Voltage
30 RB0/INT I/O Port B I/O / External Interrupt
31 RB1/C12IN0- I/O Port B I/O / Comparator Negative Input 0
32 RB2/C12IN1- I/O Port B I/O / Comparator Negative Input 1
33 RB3/PGM/C2OUT I/O Port B I/O / LVP / Comparator2 Output
34 RB4/C1OUT I/O Port B I/O / Comparator1 Output
35 RB5 I/O Port B I/O
36 RB6/ICSPCLK I/O Port B I/O / ICSP Clock
37 RB7/ICSPDAT I/O Port B I/O / ICSP Data
38 OSC1/CLKIN I Oscillator Input / Clock Input
39 OSC2/CLKOUT O Oscillator Output / Clock Output
40 VDD P Positive Supply Voltage
  • Industrial PLCs and factory automation controllers
  • Automotive electronics and body control modules
  • Smart home appliances and consumer electronics
  • Motor control drives and power inverters
  • Multi-channel data acquisition and monitoring systems
  • Medical instrumentation and diagnostic equipment
  • Embedded education platforms and development kits
Manufacturer Part Number Package Notes
Microchip PIC16F877-20I 40-pin Original non-A version, no ICD/self-program
Microchip PIC16F876A-I 28-pin Same features, 28-pin, 5-ch ADC, no PSP
Microchip PIC16F874A-I 40-pin 7KB Flash, 192B RAM, same peripherals
Microchip PIC16F887-I 40-pin Internal oscillator, ECCP, enhanced peripherals
Microchip PIC16F1789-I 44-pin Newer generation, 28KB Flash, enhanced analog
