R2A20178NP

8-channel 8-bit voltage output DAC, R-2R architecture, buffered rail-to-rail output, SPI interface up to 25MHz, 2.7-5.5V

6399

Effective Inventory
Go to Inquiry

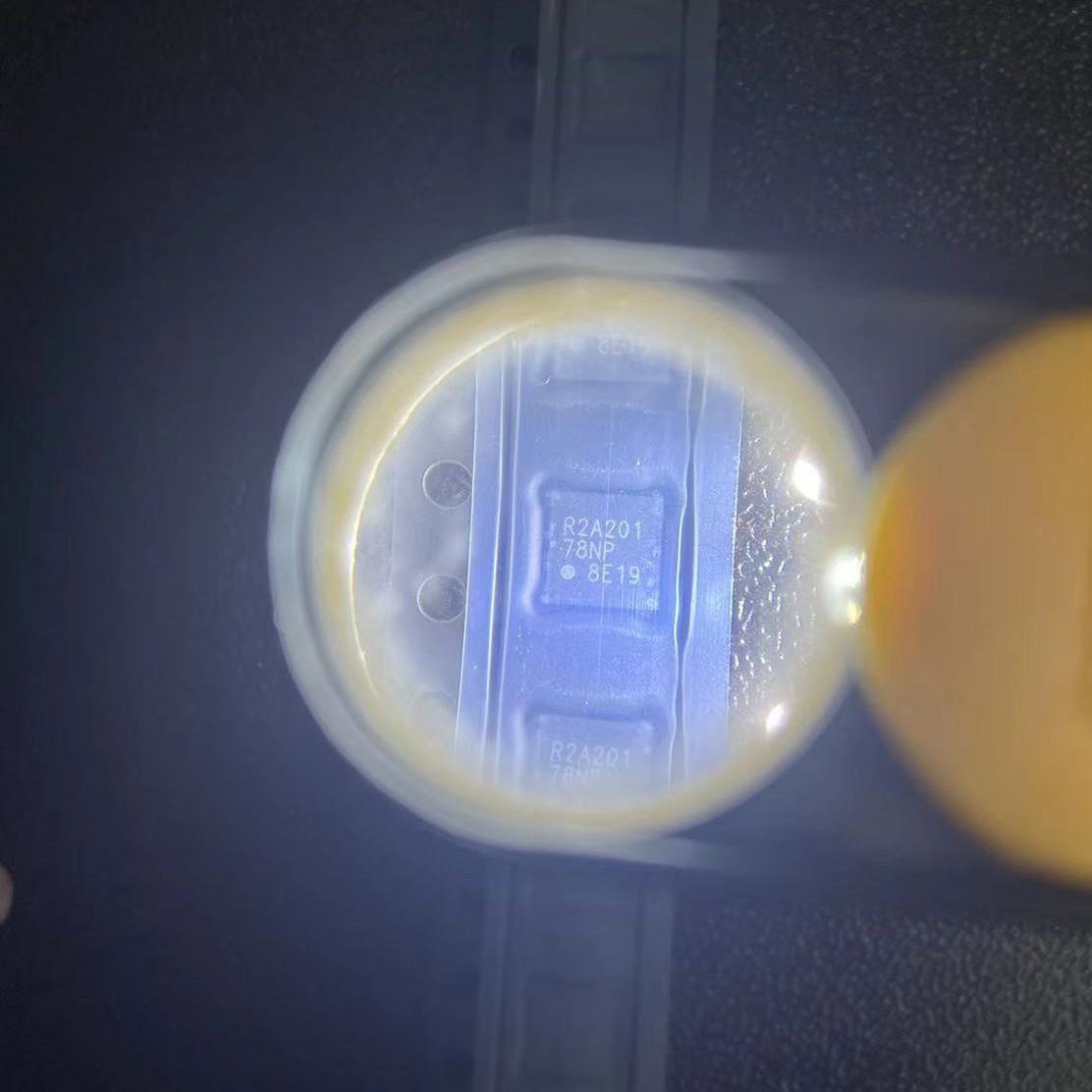

Image for reference only

Manufacturer Part：

R2A20178NP

Package：

24-pin HWQFN (4x4x0.75mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

RM5532AL

RDA5856TE

RA80H1415M1

R5F109BCK

QMC5883L

PS2805C-1-F3-A

PIC32MZ1024ECG100-I

PIC32MX795F512L-80I

Description

Product Overview

The R2A20178NP is a high-performance electronic component from Renesas, featuring a 24-pin HWQFN (4x4x0.75mm) package. It is designed for a wide range of applications including industrial, consumer, and communication systems, delivering reliable performance and excellent value.

Key Specifications

Parameter 8-channel 8-bit voltage output DAC
Parameter R-2R architecture
Parameter buffered rail-to-rail output
Parameter SPI interface up to 25MHz
Parameter 2.7-5.5V supply
Parameter 150us settling time
Parameter +/-1LSB INL
Parameter double-buffered
Parameter power-down mode
Parameter -30~85C
Package 24-pin HWQFN (4x4x0.75mm)

Features

  • 8 independent 8-bit DAC channels in single package
  • R-2R ladder architecture for monotonic performance
  • Buffered voltage outputs with rail-to-rail swing
  • Excellent linearity: +/-1 LSB INL max, +/-0.7 LSB DNL max
  • Fast settling time: 150us typical
  • External voltage reference input
  • Wide supply range: 2.7V to 5.5V
  • SPI-compatible serial interface (up to 25MHz)
  • Daisy-chain capability for multi-device expansion
  • Double-buffered registers: simultaneous output update
  • Software power-down mode with 0.5uA current
  • Low power consumption: 2.5mW at 5V
  • Output load capability: +/-5mA
  • Power-on reset with zero-scale output
  • Compact 24-pin HWQFN package (4x4mm)
  • Exposed pad for improved thermal dissipation
  • RoHS compliant and lead-free

Applications

  • LCD backlight and brightness control
  • Programmable voltage references
  • Digital potentiometer replacement
  • LED current control and dimming
  • Motor control and actuator adjustment
  • Calibration and trimming circuits
  • Audio volume control
  • General-purpose analog voltage output

The R2A20178NP is a high-performance electronic component manufactured by Renesas. Packaged in a 24-pin HWQFN (4x4x0.75mm), this device offers an excellent balance of performance, power efficiency, and cost-effectiveness for demanding electronic applications.

Key characteristics include: 8 independent 8-bit DAC channels in single package; R-2R ladder architecture for monotonic performance; Buffered voltage outputs with rail-to-rail swing; Excellent linearity: +/-1 LSB INL max, +/-0.7 LSB DNL max; Fast settling time: 150us typical. It is well-suited for use in LCD backlight and brightness control, Programmable voltage references, Digital potentiometer replacement.

With its robust design and reliable performance across the specified operating range, the R2A20178NP is an excellent choice for both new designs and drop-in replacement applications.

The R2A20178NP operates based on semiconductor principles optimized for its specific function. It receives input signals or power, processes them according to its internal circuitry, and delivers the expected output with high accuracy and reliability.

Internal blocks may include signal conditioning, power regulation, and protection circuits to ensure stable operation across the full range of specified operating conditions. The device is designed to minimize power consumption while maximizing performance efficiency.

For detailed operational characteristics, timing diagrams, and electrical specifications, please refer to the official datasheet.

Pin Group Function
Power Pins VDD/VCC (positive supply), VSS/GND (ground)
Signal I/O Pins Input/output signals for device operation
Control Pins Configuration and control interface pins

Note: Exact pin assignment varies by package variant (24-pin HWQFN (4x4x0.75mm)). Refer to the official datasheet for complete pin descriptions and package dimensions.

  • LCD backlight and brightness control
  • Programmable voltage references
  • Digital potentiometer replacement
  • LED current control and dimming
  • Motor control and actuator adjustment
  • Calibration and trimming circuits
  • Audio volume control
  • General-purpose analog voltage output
Part Number Description
Renesas R2A20174NP 4-channel version
TI DAC7574 4-ch 12-bit, I2C
Microchip MCP4728 4-ch 12-bit, I2C, EEPROM
ADI AD5628 8-ch 12-bit, SPI
TI DAC088S085 8-ch 8-bit, SPI
