SG3525AP

Voltage Mode PWM Controller, 400kHz, 8-35V, SOIC-16

5000

Effective Inventory
Go to Inquiry

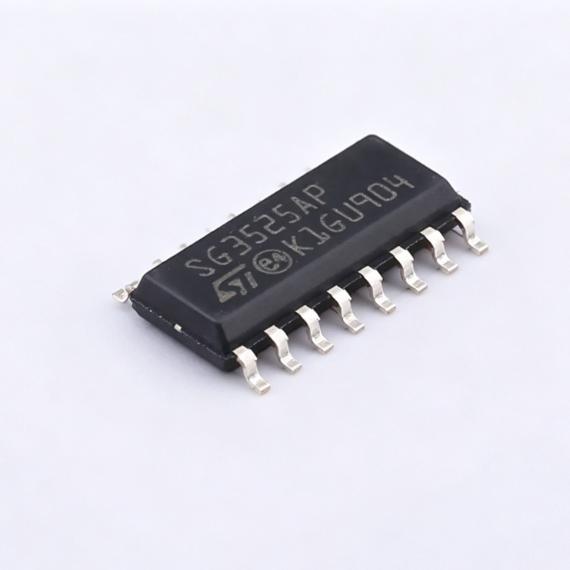

Image for reference only

Manufacturer Part：

SG3525AP

Package：

SOIC-16

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The SG3525AP is a high-performance voltage mode pulse width modulation (PWM) controller designed for switching power supply applications. It features a built-in 5.1V precision reference, error amplifier, programmable oscillator with sync capability, soft-start function, and dual totem pole outputs capable of sourcing/sinking 200mA. The device operates from 8V to 35V supply voltage with switching frequencies up to 400kHz.

Key Specifications

Type Voltage Mode PWM Controller
Supply Voltage 8V ~ 35V
Switching Frequency Up to 400 kHz
Reference 5.1V ± 1%
Output Current ±200mA
Package SOIC-16 / DIP-16

Features

  • Voltage mode PWM with 5.1V precision reference
  • 8V to 35V wide supply range
  • Up to 400kHz switching frequency
  • Dual totem pole outputs: ±200mA
  • Adjustable dead time control
  • Built-in soft-start
  • Undervoltage lockout

Applications

  • Switching power supplies (SMPS)
  • DC-DC converters
  • Forward/flyback converters
  • Push-pull and bridge converters
  • Battery chargers
  • LED drivers

The SG3525AP is a high-performance voltage mode pulse width modulation (PWM) controller designed for switching power supply applications. It features a built-in 5.1V precision reference, error amplifier, programmable oscillator with sync capability, soft-start function, and dual totem pole outputs capable of sourcing/sinking 200mA. The device operates from 8V to 35V supply voltage with switching frequencies up to 400kHz.

The SG3525AP operates on voltage mode control principle. The error amplifier compares the output voltage feedback against the internal 5.1V reference and generates an error signal. This error signal is compared with the oscillator sawtooth waveform to generate the PWM duty cycle. The two output drivers operate in push-pull mode with alternate switching at half the oscillator frequency.

Pin # Name Function
1 Inv. Input Error amplifier inverting input
2 Noninv. Input Error amplifier non-inverting input
3 Osc Out/Sync Oscillator output / sync input
4 RT/CT Oscillator timing resistor/capacitor
8 Soft Start Soft-start capacitor
10 Shutdown Shutdown control
11 Output A PWM output A
12 GND Ground
13 Vc Output stage supply
14 Output B PWM output B
15 Vcc Chip supply (8-35V)
16 Vref 5.1V reference output
  • Switching power supplies (SMPS)
  • DC-DC converters
  • Forward/flyback converters
  • Push-pull and bridge converters
  • Battery chargers
  • LED drivers
Manufacturer Part Number Description
TI TL494 Similar PWM controller
ON Semi KA3525A Compatible PWM controller
TI UC3525A Equivalent PWM controller
