SMCJ33A

33V 1500W unidirectional TVS diode, SMC (DO-214AB) package, Littelfuse SMCJ series

12098

Effective Inventory
Go to Inquiry

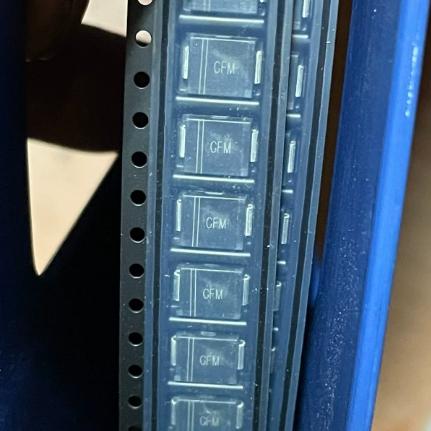

Image for reference only

Manufacturer Part：

SMCJ33A

Package：

SMC (DO-214AB), Surface Mount

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The SMCJ33A is a 33V unidirectional TVS (Transient Voltage Suppressor) diode from Littelfuse, designed for overvoltage protection in high-reliability applications. Packaged in the SMC (DO-214AB) surface mount package, this high-power TVS diode can handle up to 1500W of peak pulse power (10/1000µs waveform), providing robust protection against lightning-induced transients, ESD, and other voltage surges in industrial, automotive, and telecom systems.

Key Specifications

r>

Parameter Value
Manufacturer Littelfuse
Type Unidirectional TVS Diode
Working Peak Reverse Voltage (V_RWM) 33V
Breakdown Voltage (V_BR) 36.7V min @ I_T = 10mA
Maximum Clamping Voltage (V_C) 53.3V @ I_PP = 28.1A
Peak Pulse Power (P_PP) 1500W (10/1000µs)
Peak Pulse Current (I_PP) 28.1A
Leakage Current 1µA max @ V_R
Junction Capacitance ~4000pF
Package / Case SMC (DO-214AB)
Operating Junction Temp -55°C to +175°C

Features

  • High peak pulse power: 1500W at 10/1000µs
  • Excellent clamping capability
  • Fast response time: typically < 1ps from 0V to V_BR
  • Low incremental surge resistance
  • Glass passivated junction for reliability
  • Unidirectional configuration
  • SMC surface mount package
  • RoHS compliant and lead-free
  • IEC-61000-4-2 ESD rated at ±25kV
  • Moisture sensitivity level 1
  • AEC-Q101 qualified (automotive variants)

Applications

  • Industrial equipment and power supplies
  • Automotive electronics and 24V systems
  • Telecommunications and networking equipment
  • Lightning surge protection
  • DC power input protection
  • Motor drives and industrial controls
  • Renewable energy systems
  • Server and computing equipment

The SMCJ33A from Littelfuse is a high-power unidirectional transient voltage suppressor (TVS) diode designed to protect sensitive electronic components from voltage transients caused by ESD, lightning, and other surge events. With a peak pulse power rating of 1500W (for a 10/1000µs pulse), this device provides substantial surge handling capability in a compact SMC (DO-214AB) surface mount package. The 33V working voltage makes it ideal for protecting 24V and 28V DC power systems commonly found in industrial, automotive, and telecommunications applications. Featuring glass passivated junction technology, the SMCJ33A offers excellent long-term reliability and stable electrical characteristics. With a clamping voltage of 53.3V at peak pulse current of 28.1A, it ensures downstream components never see damaging voltage levels. The unidirectional configuration is suitable for DC circuits where transients primarily occur in one direction.

A TVS diode operates by leveraging the avalanche breakdown phenomenon of a PN junction to provide a low-impedance path for transient currents while limiting the voltage across the protected circuit. Under normal operating conditions (below V_RWM = 33V), the TVS diode is in reverse bias with very low leakage current (microamp range), effectively acting as an open circuit that does not interfere with circuit operation. When a transient voltage spike exceeds the breakdown voltage (V_BR = 36.7V), the diode enters avalanche breakdown almost instantaneously (< 1ps), conducting large amounts of current while clamping the voltage to a safe level (V_C = 53.3V). The surge energy is dissipated as heat within the diode's silicon die. Once the transient passes, the diode automatically returns to its high-impedance blocking state, ready for the next event. The unidirectional configuration means it only clamps positive transients relative to ground (reverse breakdown), while forward conduction acts like a regular diode for negative transients.

Pin/End Name Description
Cathode (banded end) Line side Connect to the voltage line being protected
Anode (non-banded end) Ground side Connect to ground

For unidirectional TVS diodes: cathode band marks the line side, anode goes to ground. Connect cathode to the protected line and anode to GND for positive transient suppression.

  • 24V/28V industrial DC power supply input protection
  • Automotive electronics: 24V truck and bus systems
  • Lightning surge protection for telecom equipment
  • Motor drives and industrial control systems
  • Renewable energy: solar inverters, wind power systems
  • Server and data center power supplies
  • Industrial sensors and instrumentation
  • AC/DC and DC/DC converter output protection
Model Manufacturer V_RWM Power Package
1.5SMC33A Littelfuse 33V 1500W SMC
SMCJ33CA Littelfuse 33V 1500W SMC (bidirectional)
SMCJ33A ON Semiconductor 33V 1500W SMC
SMAJ33A Littelfuse 33V 400W SMA (lower power)
