SN74LVC1G11DCKR

Single 3-input AND gate, 1.65-5.5V, SOT-353

7410

Effective Inventory
Go to Inquiry

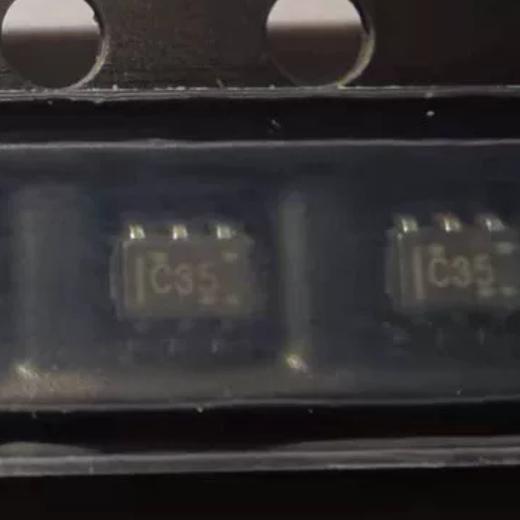

Image for reference only

Manufacturer Part：

SN74LVC1G11DCKR

Package：

SOT-353 (SC-70-5)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

5M160ZT100C5N

5G921C

XC9536XL-10VQG44C

XC95144XL-TQG144AW

XC7K160T-2FFG676I

XC7A100T-FGG676

XC6SLX75-2FGG484I

XC6SLX16-2FTG256C

Description

Product Overview

The SN74LVC1G11DCKR is a single 3-input positive-AND gate from TI in LVC family. 1.65V-5.5V, 3.6ns propagation, SOT-353.

Key Specifications

Manufacturer Texas Instruments
Type Single 3-Input AND Gate
Family 74LVC
Supply Voltage 1.65V to 5.5V
Propagation Delay 3.6 ns (typ) @ 3.3V
Temperature -40°C to +85°C
Package SOT-353 (SC-70-5)

Features

  • Wide voltage range 1.65V-5.5V
  • 3.6ns propagation at 3.3V
  • SOT-353 ultra-compact
  • Ioff supports partial power-down
  • 5V tolerant inputs

Applications

  • Logic glue in mixed-voltage systems
  • Gate logic for control signals
  • Voltage translation

Single 3-input AND gate, 1.65-5.5V, SOT-353.

3-input AND gate performs Y = A AND B AND C. LVC family provides wide 1.65V-5.5V operation with 5V tolerant inputs.

Pin Name Function
1 A Input A
2 B Input B
3 C Input C
4 Y Output
  • Logic glue in mixed-voltage systems
  • Gate logic for control signals
  • Voltage translation
Part Notes
SN74LVC1G08DCKR 2-input AND gate
