STC12C5A60S2-35I

Enhanced 1T 8051 MCU, 35MHz, 60KB Flash, 10-bit 8-ch ADC, PWM/SPI/UART, 40 I/O, LQFP-44, industrial

10368

Effective Inventory
Go to Inquiry

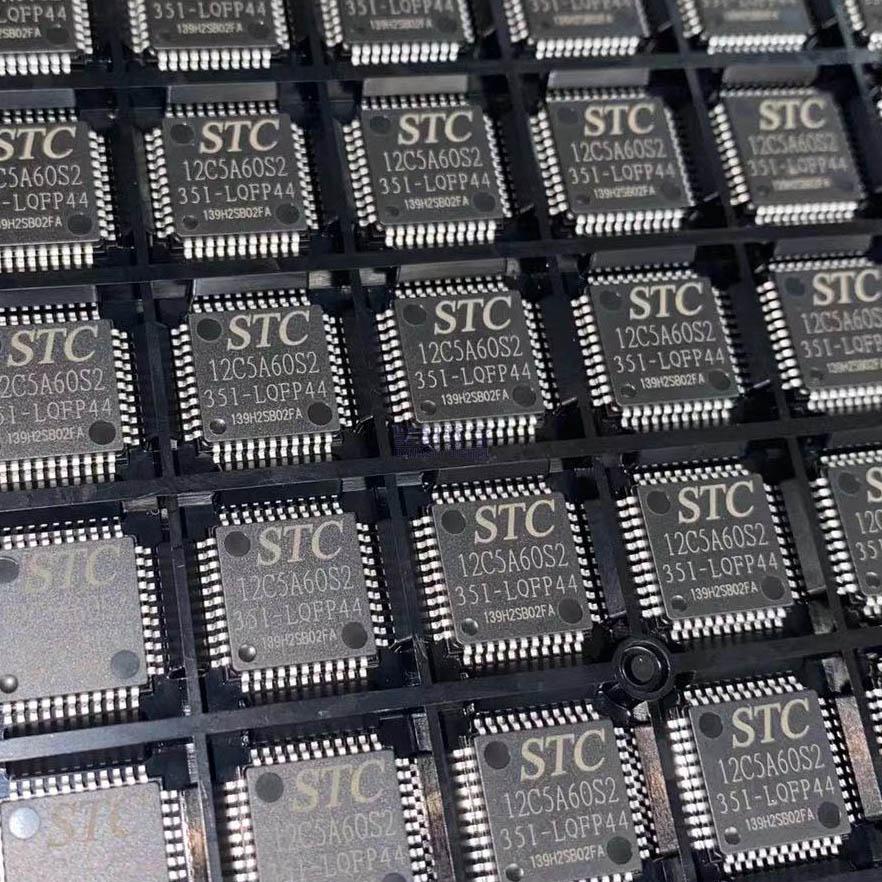

Image for reference only

Manufacturer Part：

STC12C5A60S2-35I

Package：

LQFP-44

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STC12C5A60S2-35I-LQFP44 is a high-performance 8051-based microcontroller from STC Micro (Hongjing Technology). Featuring an enhanced 1T 8051 core running at up to 35MHz, it delivers approximately 8-12 times the performance of a traditional 8051 while maintaining full instruction set compatibility. With 60KB of Flash program memory, 1280 bytes of RAM, a 10-bit 8-channel ADC, and rich peripheral set including UART, SPI, I2C, PWM, and PCA, this MCU is ideal for a wide range of embedded applications. The 35I industrial variant comes in an LQFP-44 package.

Key Specifications

Manufacturer STC Micro (Hongjing Technology)
Product Category 8051 Microcontroller (MCU)
CPU Core Enhanced 8051 (1T, single clock cycle)
Maximum Clock Frequency 35 MHz
Program Flash Memory 60 KB
RAM 1280 Bytes (256 + 1024 XRAM)
EEPROM Up to 60 KB (shared with Flash)
ADC 10-bit, 8 channels, 300K sps
PWM / PCA 2 channels (CCP/PCA)
Timers 2 x 16-bit (T0, T1) + WDT
UART 1 x UART
SPI 1 x SPI interface
I/O Pins Up to 40 I/O pins
Voltage Supply Range 4.5V to 5.5V
Internal Oscillator Internal RC (5MHz-35MHz adjustable)
Operating Temperature -40°C to +85°C (industrial, 35I)
Package LQFP-44
ISP/IAP Yes (no external programmer needed)

Features

  • Enhanced 1T 8051 core, 8-12x faster than traditional 8051
  • Up to 35MHz operating frequency
  • 60KB Flash program memory, 100,000+ erase cycles
  • ISP/IAP – in-system/in-application programming
  • 1280 bytes RAM (256 + 1024 XRAM)
  • Built-in EEPROM function
  • 8-channel 10-bit ADC, up to 300K samples/sec
  • 2-channel PCA/CCP/PWM
  • Hardware SPI interface
  • Enhanced UART with baud rate generator
  • Internal high-precision RC oscillator (±1%)
  • Watchdog timer (WDT)
  • Power-on reset and low-voltage reset
  • Up to 40 I/O ports, quasi-bidirectional/strong output/open drain
  • Low power modes: idle, power-down
  • 4.5V to 5.5V operating voltage
  • Industrial temperature range: -40°C to +85°C
  • LQFP-44 package

Applications

  • Industrial control and automation
  • Home appliances and smart home
  • Motor control systems
  • Consumer electronics
  • IoT and sensor nodes
  • LED display and lighting control
  • Power supply management
  • Data acquisition systems

The STC12C5A60S2-35I-LQFP44 is a high-performance single-chip microcontroller based on an enhanced 8051 architecture, manufactured by STC Micro (Hongjing Technology). It features a 1T (single clock cycle per machine cycle) core that delivers approximately 8 to 12 times the performance of a traditional 12T 8051, while maintaining full instruction code compatibility. Operating at up to 35 MHz, this industrial-grade (35I) device provides 60KB of Flash program memory with ISP/IAP capability, 1280 bytes of RAM (256 bytes internal plus 1024 bytes XRAM), and built-in EEPROM functionality. The MCU integrates a rich set of peripherals including an 8-channel 10-bit ADC capable of 300,000 samples per second, 2-channel PCA/CCP/PWM modules, a hardware SPI interface, an enhanced UART, two 16-bit timers, and a watchdog timer. With up to 40 general-purpose I/O pins configurable in multiple modes and an internal high-precision RC oscillator (eliminating the need for an external crystal), the STC12C5A60S2 reduces system cost and PCB area. The device operates from 4.5V to 5.5V and is available in an LQFP-44 package, making it suitable for industrial control, home appliances, motor control, consumer electronics, IoT devices, and various other embedded applications.

The STC12C5A60S2 is based on an enhanced 8051 CPU core that executes instructions in a single clock cycle (1T architecture), dramatically improving performance compared to the traditional 12-clock-cycle 8051. The CPU fetches instructions from the on-chip Flash program memory, executes them using internal registers and ALU, and manages data through the 256-byte internal RAM and 1024-byte extended RAM (XRAM). The 10-bit ADC converts analog signals from up to 8 channels at speeds up to 300K samples per second, with results stored in special function registers accessible via software. The Programmable Counter Array (PCA) provides 2 channels of capture/compare/PWM functionality, useful for motor control, timing measurement, and waveform generation. The SPI interface enables high-speed serial communication with external peripherals. The UART supports standard serial communication with flexible baud rate generation. ISP/IAP technology allows firmware updates through the serial port without requiring a dedicated programmer, significantly simplifying production and field upgrades. The internal RC oscillator provides clock frequencies adjustable from 5MHz to 35MHz, eliminating the need for external crystals in cost-sensitive applications.

Pin Group Pins Description
P0 Port P0.0-P0.7 (8 pins) 8-bit I/O port, open drain output, 8-bit data/address bus
P1 Port P1.0-P1.7 (8 pins) 8-bit I/O port, quasi-bidirectional, ADC input (P1.0-P1.7)
P2 Port P2.0-P2.7 (8 pins) 8-bit I/O port, quasi-bidirectional, high address byte
P3 Port P3.0-P3.7 (8 pins) 8-bit I/O port, quasi-bidirectional, multi-function
P4 Port P4.0-P4.4 (5 pins) 5-bit I/O port, quasi-bidirectional
Reset RST Reset input, high-active
Clock XTAL1, XTAL2 Oscillator pins
Power VCC, GND Power supply and ground
  • Industrial control and automation systems
  • Home appliances and smart home devices
  • Motor drive and motion control systems
  • Consumer electronics products
  • IoT devices and sensor network nodes
  • LED display and lighting control
  • Power supply and battery management
  • Data acquisition and measurement systems
Model Manufacturer Description
STC12C5A32S2 STC Micro 32KB Flash version, same family
STC15W4K56S4 STC Micro STC15 series, 1T, 56KB Flash
STC89C52RC STC Micro Classic 12T 8051, 8KB Flash
STC8A8K64D4 STC Micro STC8 series, high-end 8051 MCU
AT89S52 Microchip Traditional 8051, 8KB Flash
