STC15W408AS-35I

Enhanced 1T 8051 MCU, 35MHz, 2.4-5.5V, 8KB Flash, 5KB EEPROM, 10-bit 8-ch ADC, 3-ch PWM, SPI, UART

4242

Effective Inventory
Go to Inquiry

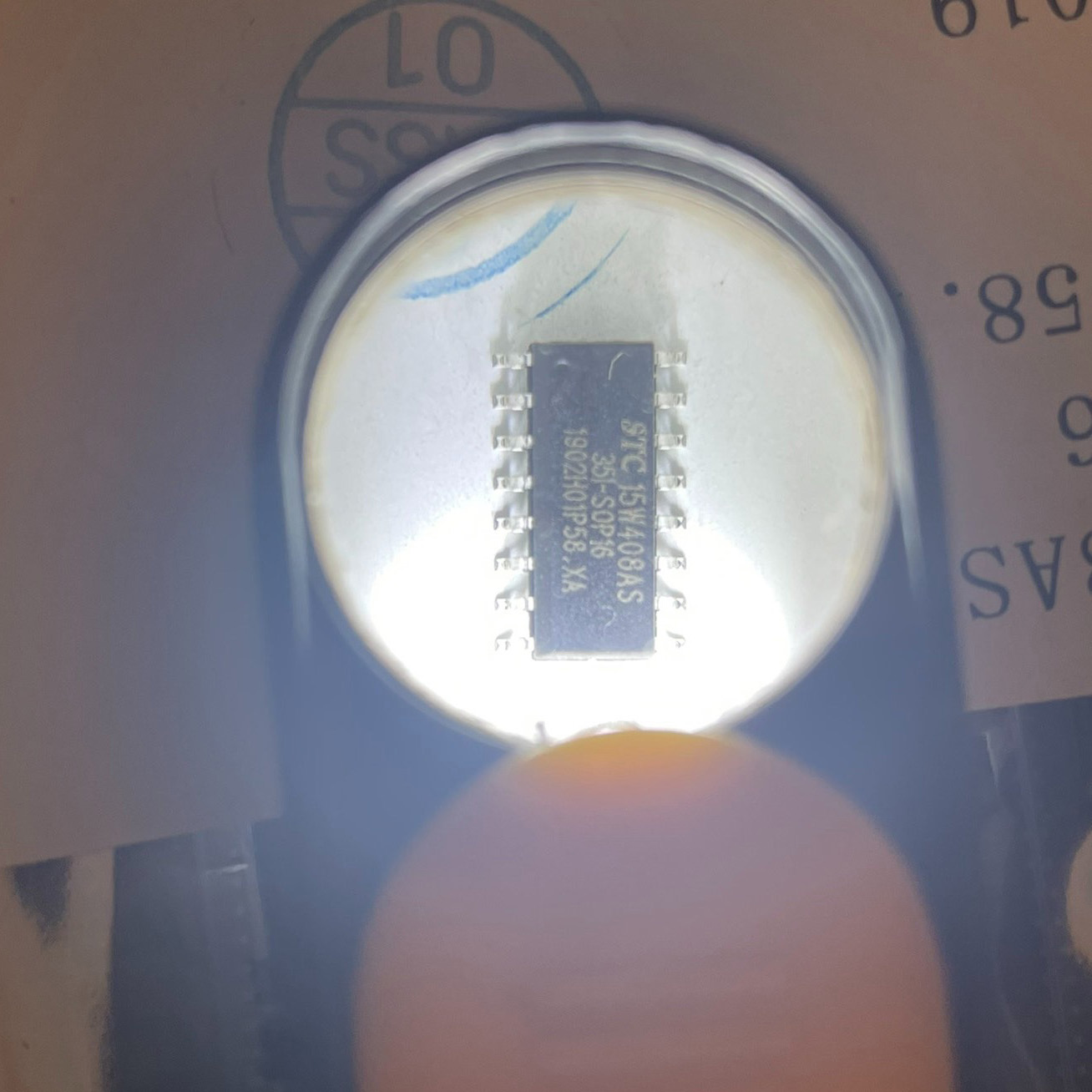

Image for reference only

Manufacturer Part：

STC15W408AS-35I

Package：

TSSOP-20 / SOP-16 / SOP-20 / DIP-16

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STC15W408AS-35I is a high-performance 8051 microcontroller from STC Micro’s STC15W series. Featuring an enhanced 1T 8051 core at up to 35MHz, it delivers 8-12 times the performance of traditional 8051 MCUs. The ‘W’ indicates wide voltage operation (2.4V to 5.5V), ‘408’ denotes 8KB Flash, and ‘AS’ indicates the ADC/SPI enhanced variant. With 8-channel 10-bit ADC, 3-channel PCA/PWM, SPI, UART, and multiple timers, this industrial-grade (35I, -40 to 85°C) MCU is ideal for a broad range of embedded control applications.

Key Specifications

Manufacturer STC Micro (Hongjing Technology)
Product Category Enhanced 8051 Microcontroller (MCU)
CPU Core Enhanced 8051 (1T, single clock cycle)
Maximum Clock Frequency 35 MHz
Program Flash Memory 8 KB
RAM 512 Bytes (256 + 256 XRAM)
EEPROM 5 KB
ADC 10-bit, 8 channels, 300K sps
PWM / PCA 3 channels (CCP/PCA/PWM)
Timers 2 x 16-bit (T0, T2) + WDT + low-power timer
UART 1 x UART (pin-switchable, 3 pin groups)
SPI 1 x SPI interface
Comparator 1 x analog comparator
I/O Pins Up to 26 I/O pins
Voltage Supply Range 2.4V to 5.5V (W – Wide Voltage)
Internal Oscillator ±0.3% precision RC, 5-35MHz adjustable
Operating Temperature -40°C to +85°C (industrial, 35I)
ISP/IAP Yes (no external programmer needed)

Features

  • Enhanced 1T 8051 core, 8-12x faster than traditional 8051
  • Up to 35MHz operating frequency
  • Wide operating voltage: 2.4V to 5.5V
  • 8KB Flash program memory, 100,000+ erase cycles
  • 5KB EEPROM, 100,000+ erase cycles
  • 512 bytes RAM (256 + 256 XRAM)
  • ISP/IAP – in-system/in-application programming
  • 8-channel 10-bit high-speed ADC (300K sps)
  • 3-channel CCP/PCA/PWM
  • Hardware SPI interface
  • UART with 3 switchable pin groups
  • Analog comparator
  • Watchdog timer (WDT)
  • Internal high-precision RC oscillator (±0.3%)
  • No external crystal or reset needed
  • 5 timers/counters total
  • Programmable clock output
  • Low power modes: slow-down, idle, power-down
  • Multiple wake-up sources from power-down
  • Industrial temperature: -40°C to +85°C

Applications

  • Industrial control and automation
  • Smart home and IoT devices
  • Motor control and driving
  • LED lighting and display control
  • Power supply and battery management
  • Consumer electronics
  • Sensor interface and data acquisition
  • Low-power wireless modules

The STC15W408AS-35I is a versatile 8051-based microcontroller from STC Micro’s STC15W series, designed for a wide range of embedded control applications. The enhanced 1T core architecture executes instructions 8 to 12 times faster than a traditional 12T 8051 while maintaining full instruction set compatibility. The ‘W’ designates wide voltage operation from 2.4V to 5.5V, making it flexible for both 3.3V and 5V systems. The ‘408’ indicates 8KB of Flash program memory, and ‘AS’ denotes the ADC/SPI enhanced variant. This industrial-grade 35I model operates reliably from -40°C to +85°C. Key features include 5KB of EEPROM, 512 bytes of RAM, an 8-channel 10-bit high-speed ADC (up to 300K samples/second), 3-channel CCP/PCA/PWM modules, a hardware SPI interface, an enhanced UART with 3 switchable pin groups, an analog comparator, two 16-bit timers, plus a watchdog timer and dedicated low-power wake-up timer. The internal high-precision RC oscillator (±0.3%) eliminates the need for an external crystal, reducing system cost and board space. With ISP/IAP capability, firmware can be updated via UART without a dedicated programmer. The device offers multiple low-power modes and various wake-up sources, suitable for battery-powered and energy-efficient applications.

The STC15W408AS is built on a 1T-enhanced 8051 core that executes most instructions in a single clock cycle, providing dramatically higher performance than classic 8051s. The main clock source is an internal high-precision RC oscillator adjustable between 5MHz and 35MHz, though an external crystal can also be used. The CPU fetches instructions from the 8KB Flash program memory, processes data using the ALU and registers, and accesses 512 bytes of RAM (256 bytes direct + 256 bytes XRAM). The 8-channel 10-bit SAR ADC converts analog inputs at speeds up to 300,000 samples per second. The 3-channel PCA (Programmable Counter Array) supports capture, compare, and PWM modes for timing measurement, waveform generation, and motor control. The SPI port provides high-speed serial peripheral connectivity. The UART supports standard serial communication with baud rates generated by the dedicated Timer2. Multiple low-power modes allow significant energy savings, with power-down mode wake-up available through external interrupts, UART, timers, and a dedicated low-power wake-up timer. The analog comparator enables zero-crossing detection, level comparison, and brown-out functions.

Pin Group Function Description
P1.0-P1.7 I/O + ADC + CCP 8-bit port, 8-ch ADC inputs, 3-ch CCP/PWM
P3.0-P3.7 I/O + UART + INT + Timer 8-bit port, RXD/TXD, INT0/INT1, T0/T1
P5.0-P5.5 I/O + Special 6 I/Os, RST, CMP+, CMP-, SysClkO
RST Reset Power-on reset / external reset
VCC / GND Power 2.4-5.5V supply and ground

Note: Package variants include SOP-16 (14 I/O), SOP-20 (18 I/O), TSSOP-20 (18 I/O), DIP-16 (14 I/O), DIP-20 (18 I/O), and SKDIP-28 (26 I/O).

  • Industrial control and automation systems
  • Smart home devices and IoT sensors
  • Motor control and brushless DC drives
  • LED lighting control and dimming
  • Power supply and battery management
  • Consumer electronics products
  • Data acquisition and sensor interfaces
  • Battery-powered wireless modules
Model Manufacturer Description
STC15W4K56S4 STC Micro 56KB Flash, 4K RAM, 4 UARTs
STC15F2K60S2 STC Micro 60KB Flash, 2K RAM, STC15F series
STC8G1K17 STC Micro STC8 series, 17KB Flash, enhanced
STM8S103F3 STMicroelectronics STM8 8-bit MCU, 8KB Flash
ATMEGA8 Microchip AVR MCU, 8KB Flash, TQFP-32
