STC8G2K64S4-36I

8th gen super-fast 8051 MCU, 36MHz, 64KB Flash, 2KB RAM, 12-bit ADC, 4 UARTs, 6-ch PWM, SPI/I2C, LQFP-48

11784

Effective Inventory
Go to Inquiry

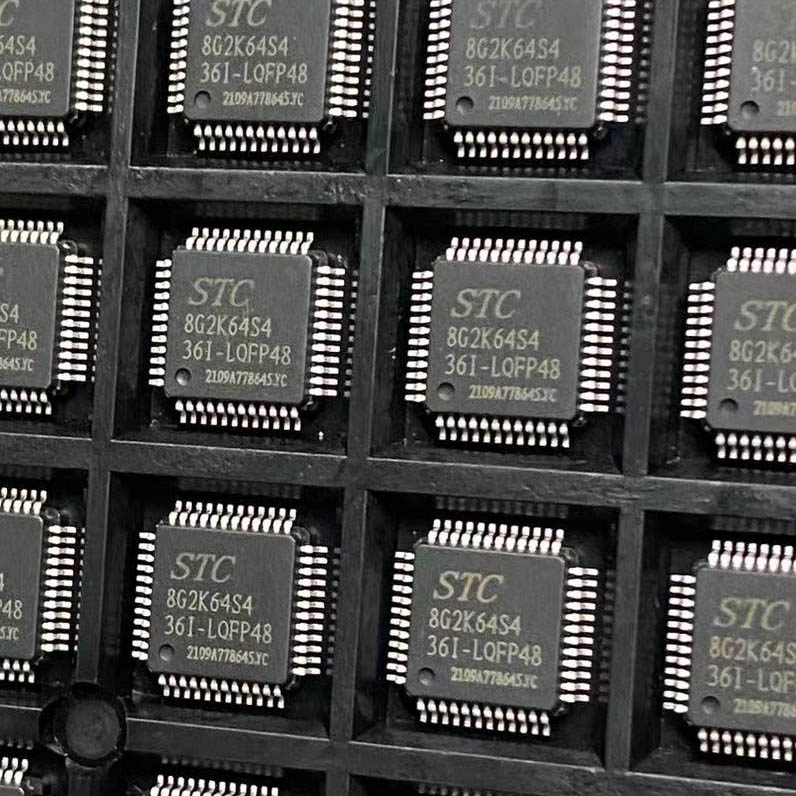

Image for reference only

Manufacturer Part：

STC8G2K64S4-36I

Package：

LQFP-48

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STC8G2K64S4-36I-LQFP48 is a high-performance 8051 microcontroller from STC Micro’s 8th generation STC8G series. Featuring a super-fast 1T 8051 core (more than 12x faster than traditional 8051), it operates at up to 36MHz with 64KB Flash, 2KB SRAM, and 4 UARTs. The ‘S4’ variant includes 4 sets of serial ports, multiple 16-bit timers, 12-bit ADC, enhanced PWM/PCA, SPI, I2C, and comparator. This industrial-grade (36I) MCU in LQFP-48 package offers exceptional integration for complex embedded applications.

Key Specifications

Manufacturer STC Micro (Hongjing Technology)
Product Category Enhanced 8th Gen 8051 MCU
CPU Core Super-Fast 8051 (1T, >12x traditional)
Maximum Clock Frequency 36 MHz
Program Flash Memory 64 KB
RAM 2 KB SRAM + 256B internal RAM
EEPROM Up to 64KB (Flash EEPROM)
ADC 12-bit, up to 15 channels, 800K sps
UART 4 x UART (UART1-UART4)
PWM / PCA 6-channel enhanced PWM / PCA
Timers 5 x 16-bit timers + WDT
SPI 1 x SPI (Master/Slave)
I2C 1 x I2C interface
Comparator 2 x analog comparators
I/O Pins Up to 42 I/O pins (LQFP-48)
Voltage Supply Range 1.9V to 5.5V (wide voltage)
Internal Oscillator ±0.3% IRC, 5-48MHz adjustable
Operating Temperature -40°C to +85°C (industrial, 36I)
Package LQFP-48
ISP/IAP Yes (no external programmer needed)

Features

  • Super-fast 1T 8051 core (>12x faster than traditional 8051)
  • Up to 36MHz operating frequency
  • Ultra-wide voltage range: 1.9V to 5.5V
  • 64KB Flash program memory
  • 2KB + 256B RAM
  • ISP/IAP – in-system/in-application programming
  • 12-bit high-speed ADC, up to 15 channels, 800K sps
  • 6-channel advanced PWM/PCA (motor control optimized)
  • 4 UARTs (UART1 to UART4)
  • 1 SPI interface (Master/Slave mode)
  • 1 I2C interface
  • 2 analog comparators
  • 5 x 16-bit timers/counters
  • Watchdog timer (WDT)
  • Internal high-precision IRC (±0.3% accuracy)
  • No external crystal or reset required
  • Up to 42 I/O pins, 8 configurable modes
  • Programmable clock output
  • Low power modes: idle, stop/power-down
  • Multiple power-down wake-up sources
  • Industrial temperature: -40°C to +85°C
  • LQFP-48 package

Applications

  • Industrial control and automation
  • Motor control (BLDC, FOC, servo)
  • Smart home and IoT gateways
  • Power supply and battery management
  • Consumer electronics
  • Networking and communication modules
  • Medical and health devices
  • Automotive electronics

The STC8G2K64S4-36I-LQFP48 is the flagship member of STC Micro’s 8th generation STC8G series of enhanced 8051 microcontrollers. Featuring a super-fast 1T 8051 core that delivers more than 12 times the performance of a traditional 12T 8051 while maintaining full instruction compatibility, this device operates at clock frequencies up to 36MHz. The ‘8G’ denotes the 8th generation core, ‘2K’ indicates 2KB of RAM, ’64’ represents 64KB of Flash program memory, and ‘S4’ signifies 4 UART serial ports. This industrial-grade 36I model provides reliable operation from -40°C to +85°C. The STC8G2K64S4 is exceptionally well-integrated, featuring a 12-bit high-speed ADC with up to 15 channels, 6-channel advanced PWM/PCA optimized for motor control applications, 4 independent UARTs, SPI, I2C, 2 analog comparators, 5 16-bit timers, and a watchdog timer. The ultra-wide operating voltage range of 1.9V to 5.5V supports both low-voltage battery systems and standard 5V industrial designs. With up to 42 I/O pins in the LQFP-48 package, each configurable in 8 different modes, this MCU offers exceptional design flexibility. The internal high-precision IRC oscillator eliminates the need for external crystals. The device also supports ISP/IAP for convenient firmware updates via serial port, making it ideal for industrial control, motor drives, IoT gateways, power management, and automotive applications.

The STC8G2K64S4 utilizes STC Micro’s 8th generation 1T-enhanced 8051 core with significant architectural improvements over earlier generations. The core executes most instructions in a single clock cycle, achieving performance equivalent to more than 12 times that of a classic 12T 8051. The internal high-precision IRC (Internal RC Oscillator) provides ±0.3% frequency accuracy and is software-adjustable between 5MHz and 48MHz. The CPU accesses 64KB of Flash program memory via an instruction prefetch mechanism, with 2KB of SRAM plus 256 bytes of internal RAM for data storage. The 12-bit SAR ADC converts analog inputs from up to 15 channels at speeds up to 800,000 samples per second. The 6-channel advanced PWM/PCA module supports complementary outputs with dead-time control, making it particularly suitable for BLDC motor control and FOC applications. Four independent UARTs support multiple serial communication links simultaneously, while SPI and I2C interfaces provide connectivity to external peripherals. Two analog comparators enable zero-crossing detection and over-current protection. Multiple low-power modes including idle and stop/power-down modes allow energy-efficient operation, with numerous wake-up sources including external interrupts, UARTs, timers, and comparators.

Pin Group Count Key Functions
P0 Port 8 pins 8-bit I/O, ADC inputs, CCP/PWM, SPI, UART4
P1 Port 8 pins 8-bit I/O, ADC inputs, CCP/PWM, UART1, T2/T3
P2 Port 8 pins 8-bit I/O, ADC inputs, I2C, SPI, UART3
P3 Port 8 pins 8-bit I/O, UART1 (alt), INT0-4, T0/T1, CCP
P4 Port 8 pins 8-bit I/O, UART2, CCP, RST, comparator
P5 Port 2+ pins I/O, SysClkO, comparator inputs
Power – VDD (1.9-5.5V), VSS, VDDIO, VSSIO, AVCC, AGND

Note: LQFP-48 package provides up to 42 general-purpose I/O pins with multiple alternate functions.

  • Industrial automation and control systems
  • BLDC motor control and FOC drives
  • Smart home hubs and IoT gateways
  • Power supply management and BMS
  • Consumer electronics and appliances
  • Networking and communication modules
  • Medical devices and health monitors
  • Automotive body electronics
Model Manufacturer Description
STC8A8K64D4 STC Micro STC8A series, 64KB, higher performance
STC8H1K28 STC Micro STC8H series, 28KB Flash, high speed
STC15W4K56S4 STC Micro STC15 series, 56KB Flash, 4 UARTs
STM8S207C8 STMicroelectronics STM8 8-bit MCU, 64KB Flash, LQFP-48
STM32F030C8 STMicroelectronics ARM Cortex-M0, 64KB Flash, LQFP-48
