STM32F051K6U6

ARM Cortex-M0 32-bit MCU, 48MHz, 32KB Flash, 8KB SRAM, UFQFPN-32, 12-bit ADC/DAC, motor control PWM

8520

Effective Inventory
Go to Inquiry

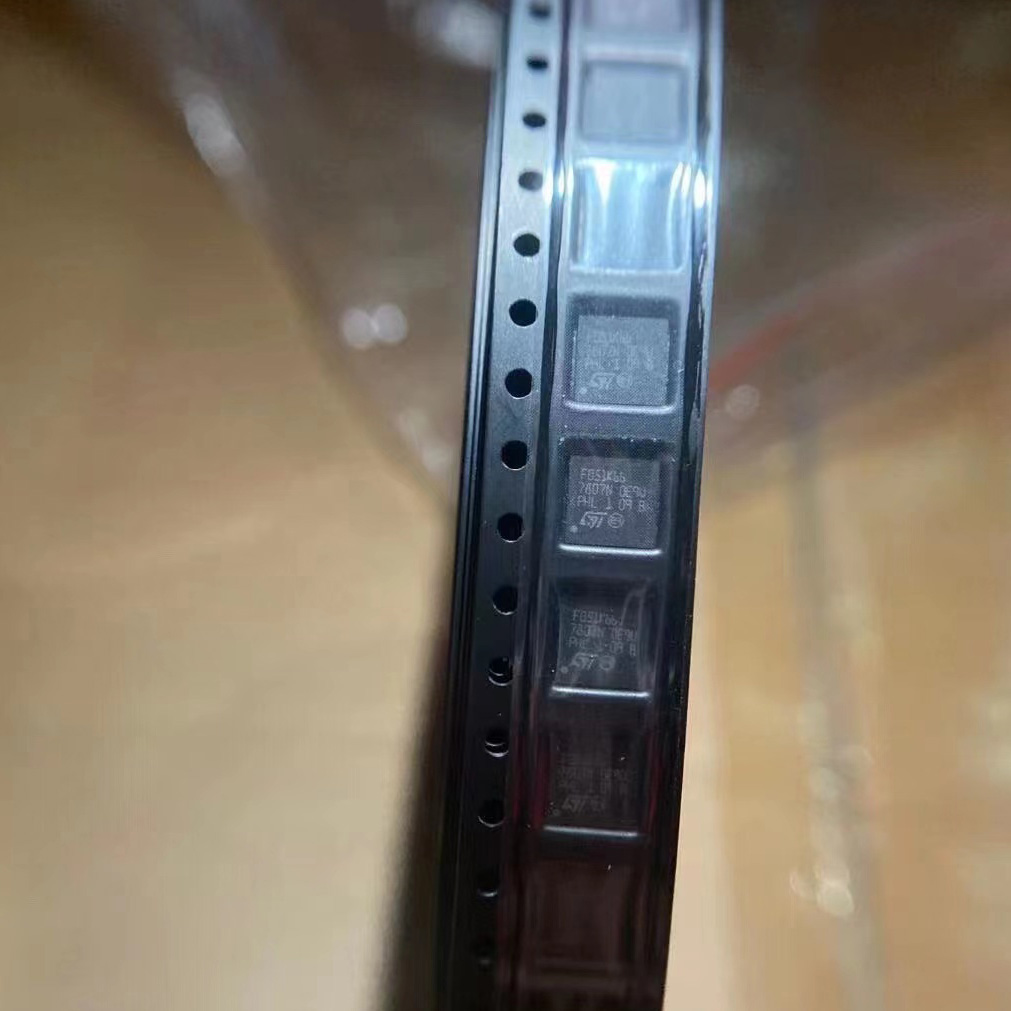

Image for reference only

Manufacturer Part：

STM32F051K6U6

Package：

UFQFPN-32

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STM32F051K6U6 is a mainstream ARM Cortex-M0 based 32-bit microcontroller from STMicroelectronics, featuring 32 Kbytes of Flash memory and 8 Kbytes of SRAM. Operating at up to 48 MHz, this device is housed in a UFQFPN-32 package (5x5x0.55 mm) and offers an excellent balance of performance, power efficiency, and cost-effectiveness for entry-level embedded applications. It includes a rich set of peripherals such as 12-bit ADC, 12-bit DAC, multiple communication interfaces (I2C, SPI, USART), and advanced-control PWM timers for motor control applications.

Key Specifications

Core ARM Cortex-M0 32-bit
Maximum Frequency 48 MHz
Flash Memory 32 KB
SRAM 8 KB
Package UFQFPN-32 (5x5x0.55 mm)
Supply Voltage 2.0 V to 3.6 V
Operating Temperature -40C to +85C
ADC 1x 12-bit, up to 16 channels
DAC 1x 12-bit
DMA Channels 5
I/O Pins Up to 27
Timers Up to 11
Communication Interfaces 2x I2C, 2x SPI, 2x USART, HDMI CEC

Features

  • ARM 32-bit Cortex-M0 CPU with up to 48 MHz frequency
  • 32 Kbytes Flash memory with CRC calculation unit
  • 8 Kbytes SRAM with hardware parity checking
  • Power-on/Power down reset (POR/PDR) and programmable voltage detector (PVD)
  • Low power modes: Sleep, Stop, Standby
  • VBAT supply for RTC and backup registers
  • One 12-bit, 1.0 us ADC (up to 16 channels) with temperature sensor
  • One 12-bit DAC channel with two analog comparators
  • Up to 18 capacitive sensing channels for touchkey, linear and rotary touch sensors
  • Advanced-control PWM timer with deadtime generation and emergency stop
  • 5-channel DMA controller
  • Serial wire debug (SWD) interface
  • 96-bit unique ID
  • ECOPACK2 compliant, RoHS certified

Applications

  • Application control and user interfaces
  • Hand-held equipment and portable devices
  • A/V receivers and digital TV
  • PC peripherals and gaming platforms
  • Industrial applications and PLCs
  • Motor control and inverter systems
  • Printers and scanners
  • Alarm systems and video intercoms
  • HVAC systems
  • GPS platforms

The STM32F051K6U6 is a mainstream ARM Cortex-M0 based 32-bit microcontroller from STMicroelectronics, part of the STM32F0 series Access line. It incorporates a high-performance ARM Cortex-M0 32-bit RISC core operating at up to 48 MHz frequency, with 32 Kbytes of Flash memory and 8 Kbytes of SRAM with hardware parity checking. The device is packaged in a compact UFQFPN-32 (5x5x0.55 mm) package, making it suitable for space-constrained applications. It offers an extensive range of enhanced peripherals including a 12-bit ADC with up to 16 channels, a 12-bit DAC, two analog comparators, up to 11 timers (including an advanced-control PWM timer for motor control), and multiple communication interfaces (I2C, SPI, USART, HDMI CEC). The STM32F051K6U6 operates from a 2.0 to 3.6 V power supply in the -40 to +85C temperature range, with comprehensive power-saving modes enabling low-power application design.

The STM32F051K6U6 is based on the ARM Cortex-M0 32-bit RISC core, which executes Thumb-2 instructions for optimal code density and performance. The core operates at up to 48 MHz, delivering 1.25 DMIPS/MHz. Program code and constant data are stored in the embedded Flash memory, while the SRAM provides fast read/write access for runtime data. The system clock can be derived from an internal 8 MHz RC oscillator (with x6 PLL option), an external 4-32 MHz crystal oscillator, or an internal 40 kHz RC oscillator. The MCU features a nested vectored interrupt controller (NVIC) for efficient interrupt handling with up to 32 interrupt channels. Power management includes multiple low-power modes (Sleep, Stop, Standby) to minimize current consumption, with VBAT supporting RTC operation during main power loss. The 5-channel DMA controller offloads data transfer tasks from the CPU, improving system efficiency for peripheral-to-memory and memory-to-memory transfers.

Pin Name Type Function
PA0-PA15 I/O Port A general-purpose I/O pins with alternate functions
PB0-PB15 I/O Port B general-purpose I/O pins with alternate functions
PC13-PC15 I/O Port C general-purpose I/O pins
PF0-PF1 I/O Port F I/O pins (oscillator pins)
VDDA Power Analog power supply (2.4V to 3.6V)
VSSA Ground Analog ground
VDD Power Digital power supply (2.0V to 3.6V)
VSS Ground Digital ground
NRST Input Reset pin (active low)
VBAT Power Battery supply for RTC and backup registers
OSC_IN Input High-speed external oscillator input
OSC_OUT Output High-speed external oscillator output
SWDIO I/O Serial wire debug data I/O
SWCLK Input Serial wire debug clock input
BOOT0 Input Boot mode selection
  • Industrial control systems and PLCs
  • Motor drives and inverter systems
  • Consumer electronics and home appliances
  • Human-machine interface (HMI) devices
  • Portable and battery-powered equipment
  • Building automation and HVAC
  • Security systems and alarm devices
  • Sensor interfaces and data acquisition
Model Difference
STM32F051K6T6 LQFP-32 package instead of UFQFPN-32
STM32F051K8U6 64KB Flash, same package and core
STM32F030K6T6 Value line, fewer peripherals, lower cost
STM32F072C8U6 UFQFPN-48, 64KB Flash, USB interface
STM32G031K6 Newer generation, Cortex-M0+, 64MHz, enhanced features
