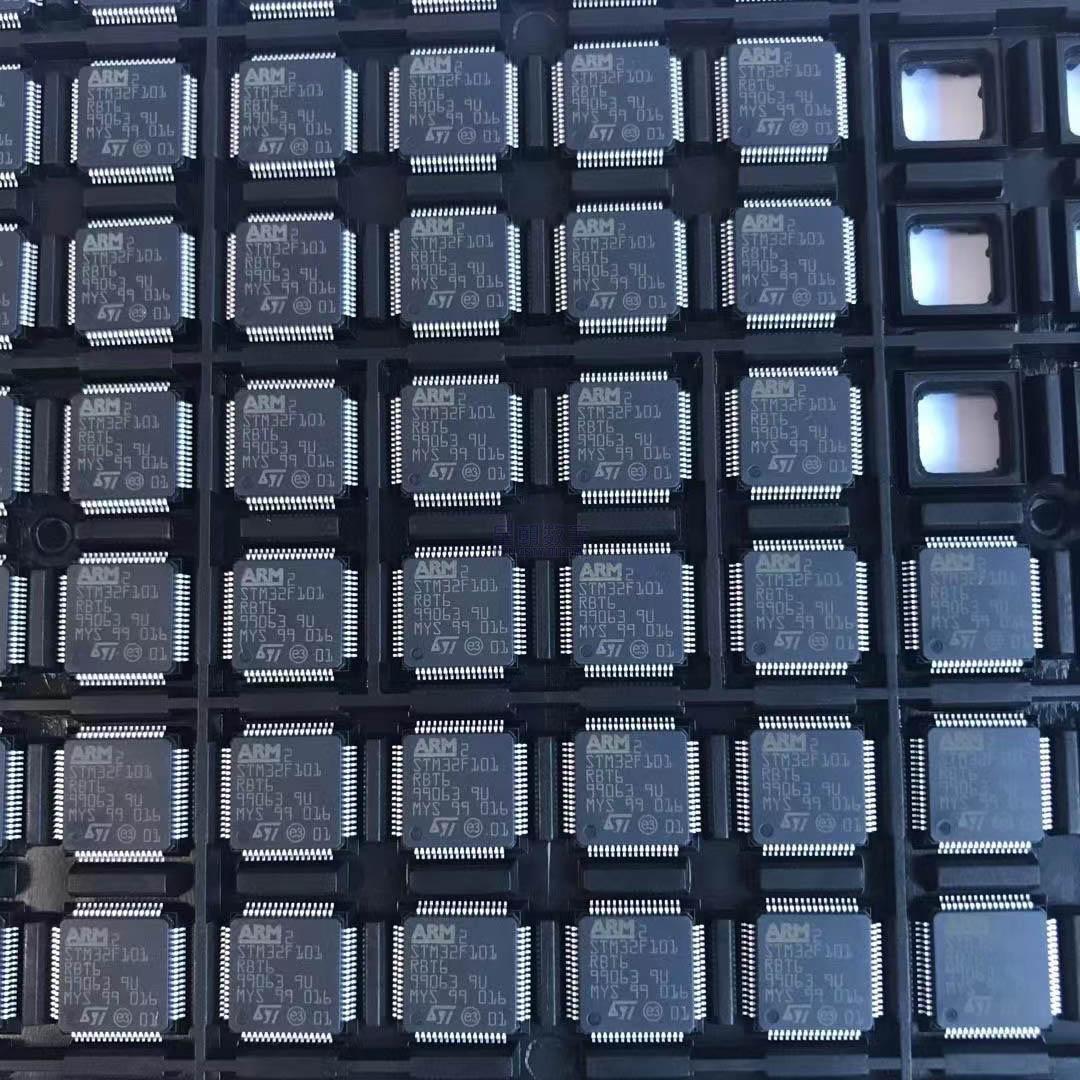

Image for reference only

Manufacturer Part：

STM32F101RBT6

Package：

LQFP-64

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STM32F101RBT6 is a medium-density access line 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M3 core operating at up to 36 MHz. With 128 Kbytes of Flash memory and 16 Kbytes of SRAM in an LQFP-64 package, this device provides a balanced combination of performance, memory capacity, and peripheral integration. It includes a 12-bit ADC, multiple timers, and comprehensive communication interfaces, making it suitable for a wide range of industrial and consumer embedded applications.

Key Specifications

Core ARM Cortex-M3 32-bit
Maximum Frequency 36 MHz
Flash Memory 128 KB
SRAM 16 KB
Package LQFP-64 (10x10x1.4 mm)
Supply Voltage 2.0 V to 3.6 V
Operating Temperature -40C to +85C
ADC 1x 12-bit, up to 16 channels
DMA Channels 7
I/O Pins 51
Timers 6 (3 general-purpose + 2 watchdog + SysTick)
Communication Interfaces 2x I2C, 2x SPI, 3x USART

Features

  • ARM 32-bit Cortex-M3 CPU at 36 MHz, 1.25 DMIPS/MHz
  • Single-cycle multiplication and hardware division
  • 128 Kbytes Flash memory, 16 Kbytes SRAM
  • 2.0 to 3.6 V application supply and I/Os
  • POR, PDR and programmable voltage detector (PVD)
  • 4-to-16 MHz crystal oscillator with internal 8 MHz factory-trimmed RC
  • Low power modes: Sleep, Stop and Standby
  • VBAT supply for RTC and backup registers
  • Serial wire debug (SWD) and JTAG interfaces
  • 7-channel DMA controller
  • 1 x 12-bit, 1 us A/D converter (up to 16 channels) with temperature sensor
  • 51 fast I/O ports, all mappable on 16 external interrupt vectors
  • Three 16-bit general-purpose timers with IC/OC/PWM
  • Two watchdog timers (Independent and Window)
  • Up to 7 communication interfaces (I2C, SPI, USART)
  • CRC calculation unit, 96-bit unique ID
  • ECOPACK compliant, RoHS certified

Applications

  • Application control and user interfaces
  • Medical and hand-held equipment
  • PC peripherals and gaming
  • GPS platforms
  • Industrial applications and PLCs
  • Inverters and motor control
  • Printers and scanners
  • Alarm systems and video intercoms
  • HVAC systems
  • Consumer electronics

The STM32F101RBT6 is a medium-density access line microcontroller from STMicroelectronics, based on the ARM Cortex-M3 32-bit RISC core operating at up to 36 MHz. Part of the STM32F1 series, this device features 128 Kbytes of Flash memory and 16 Kbytes of SRAM, packaged in an LQFP-64 (10x10x1.4 mm) package. It offers an extensive range of enhanced peripherals and I/Os connected to two APB buses, including a 12-bit ADC with up to 16 channels and a conversion time of 1 us, three general-purpose 16-bit timers, two watchdog timers, and up to 7 communication interfaces (2x I2C, 2x SPI, 3x USART). The STM32F101RBT6 operates from a 2.0 to 3.6 V power supply in the -40 to +85C temperature range, with comprehensive power-saving modes enabling low-power application design. Its access line positioning provides a cost-effective balance between the value line (F100) and performance line (F103), offering higher SRAM and slightly higher clock speed than the value line without the advanced peripherals (USB, CAN, advanced PWM) of the performance line.

The STM32F101RBT6 is built on the ARM Cortex-M3 32-bit RISC core, delivering 1.25 DMIPS/MHz with single-cycle multiplication and hardware division. The core implements the Thumb-2 instruction set for optimal code density. The clock system includes a 4-16 MHz HSE crystal oscillator, an 8 MHz factory-trimmed HSI RC oscillator, a 40 kHz LSI RC oscillator, and a 32 kHz LSE oscillator for RTC operation. A PLL multiplies the clock source to achieve the maximum 36 MHz CPU frequency. Power management features include Sleep mode (CPU halted, peripherals active), Stop mode (all clocks stopped, registers and SRAM retained), and Standby mode (minimum power consumption, only RTC and backup registers active). The nested vectored interrupt controller (NVIC) provides low-latency interrupt handling with up to 43 maskable channels and 16 priority levels. The 7-channel DMA controller supports transfers between memory and peripherals (timers, ADC, SPI, I2C, USART), reducing CPU overhead and improving system throughput.

Pin Name Type Function
PA0-PA15 I/O Port A I/O, 5V-tolerant, ADC_IN0-7
PB0-PB15 I/O Port B I/O, 5V-tolerant, ADC_IN8-9
PC0-PC15 I/O Port C I/O, 5V-tolerant, ADC_IN10-15
PD0-PD2 I/O Port D I/O (PD0=OSC_IN, PD1=OSC_OUT)
VDD_1, VDD_2, VDD_3 Power Digital power supply (2.0-3.6V)
VSS_1, VSS_2, VSS_3 Ground Digital ground
VDDA Power Analog power supply
VSSA Ground Analog ground
VBAT Power Battery supply for RTC
NRST I/O Active-low reset
OSC_IN/PD0 Input High-speed oscillator input
OSC_OUT/PD1 Output High-speed oscillator output
OSC32_IN/PC14 Input 32kHz oscillator input
OSC32_OUT/PC15 Output 32kHz oscillator output
BOOT0 Input Boot configuration pin
PA13/JTMS/SWDIO I/O JTAG TMS / SWDIO
PA14/JTCK/SWCLK I/O JTAG TCK / SWCLK
PA15/JTDI I/O JTAG TDI
  • Industrial control and factory automation
  • Motor drives and power inverters
  • Consumer electronics and home appliances
  • Medical and handheld devices
  • Building automation systems
  • Security and alarm systems
  • Human-machine interface (HMI)
  • Data acquisition and sensor interfaces
Model Difference
STM32F101R8T6 64KB Flash, same package and peripherals
STM32F101VBT6 LQFP-100, 80 I/O pins
STM32F100RBT6B Value line, 24MHz, 8KB SRAM, dual DAC
STM32F103RBT6 Performance line, 72MHz, 20KB SRAM, USB/CAN
STM32G071RBT6 Newer Cortex-M0+, 64MHz, enhanced features
