STM32F205VET6

ARM Cortex-M3 32-bit MCU, 120MHz, 512KB Flash, 128KB+4KB SRAM, LQFP-100, triple ADC, USB HS/FS OTG, Ethernet, camera IF

4260

Effective Inventory
Go to Inquiry

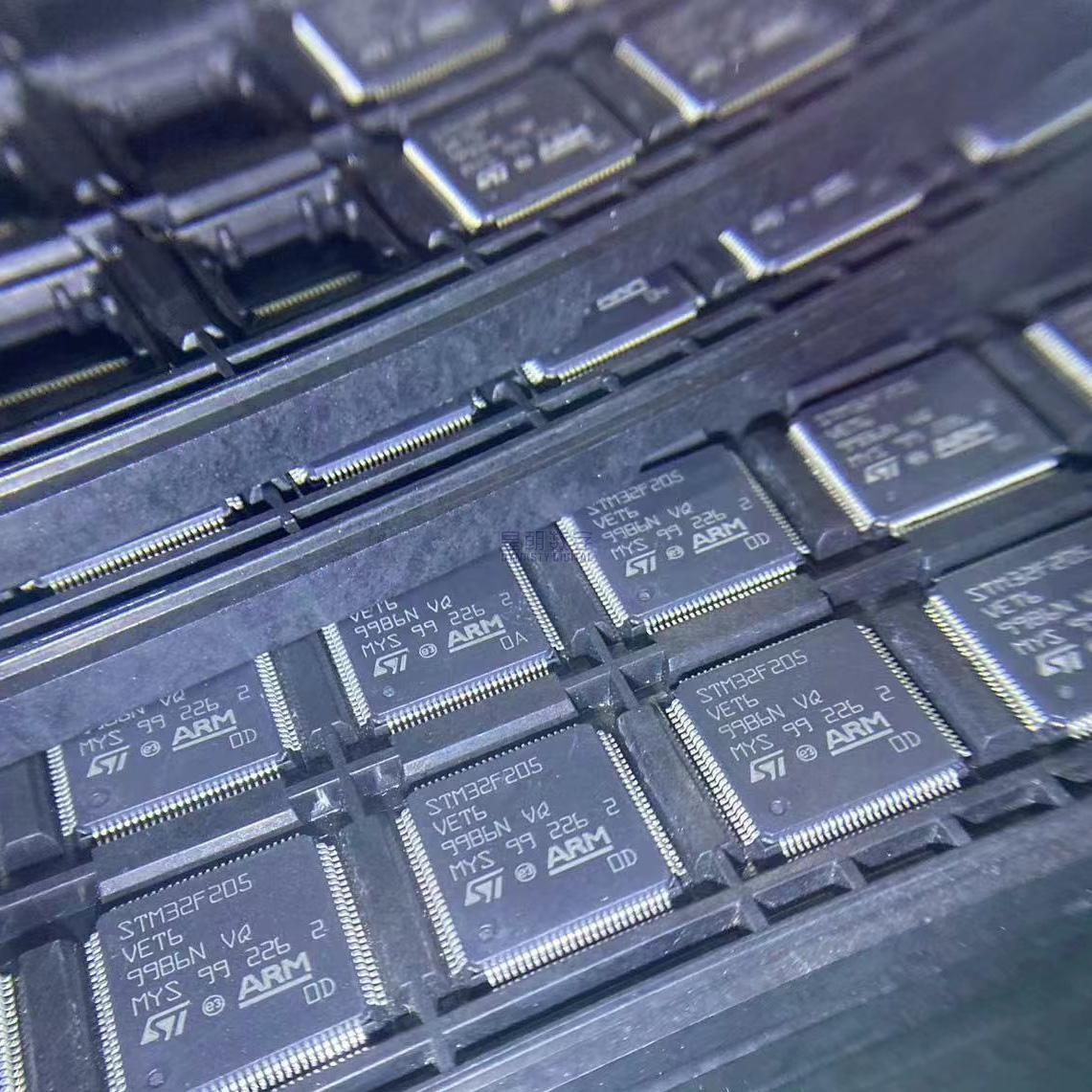

Image for reference only

Manufacturer Part：

STM32F205VET6

Package：

LQFP-100

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STM32F205VET6 is a high-performance 32-bit microcontroller from STMicroelectronics, based on the ARM Cortex-M3 core operating at up to 120 MHz. Featuring 512 Kbytes of Flash memory and 128 Kbytes of SRAM plus 4 Kbytes of backup SRAM in an LQFP-100 package, this device represents the high end of the STM32F2 series. It includes three 12-bit ADCs, two 12-bit DACs, USB OTG HS/FS, Ethernet MAC, camera interface, and extensive communication peripherals, making it suitable for demanding industrial and connectivity applications.

Key Specifications

Core ARM Cortex-M3 32-bit
Maximum Frequency 120 MHz
Flash Memory 512 KB
SRAM 128 KB + 4 KB backup SRAM
Package LQFP-100 (14x14x1.4 mm)
Supply Voltage 1.8 V to 3.6 V
Operating Temperature -40C to +85C
Performance 150 DMIPS / 1.25 DMIPS/MHz
ADC 3x 12-bit, up to 16 channels, 6 MSPS triple interleaved
DAC 2x 12-bit
DMA Streams 16-stream DMA controller
I/O Pins 82
Timers Up to 17 (12x 16-bit + 2x 32-bit)
USB USB 2.0 FS OTG + USB 2.0 HS OTG
Ethernet 10/100 Ethernet MAC with IEEE 1588
Communication 3x I2C, 6x U(S)ART, 3x SPI, 2x CAN, SDIO

Features

  • ARM 32-bit Cortex-M3 CPU at 120 MHz with ART Accelerator (0-wait state Flash execution)
  • 150 DMIPS performance, 1.25 DMIPS/MHz (Dhrystone 2.1)
  • Memory Protection Unit (MPU) for secure application partitioning
  • 512 Kbytes Flash memory with 512 bytes OTP
  • 128 + 4 Kbytes SRAM with hardware parity check
  • Flexible static memory controller (FSMC) for SRAM, PSRAM, NOR, NAND
  • LCD parallel interface (8080/6800 modes)
  • 1.8 to 3.6 V application supply with POR, PDR, PVD and BOR
  • Low power modes: Sleep, Stop and Standby with VBAT RTC supply
  • 3 x 12-bit, 0.5 us ADCs with up to 24 channels (triple interleaved up to 6 MSPS)
  • 2 x 12-bit D/A converters
  • 16-stream DMA controller with FIFOs and burst support
  • Up to 17 timers (12x 16-bit, 2x 32-bit) with PWM and quadrature encoder input
  • USB 2.0 full-speed and high-speed OTG with on-chip PHY
  • 10/100 Ethernet MAC with IEEE 1588v2 hardware timestamp
  • 8- to 14-bit parallel camera interface (DCMI)
  • Serial wire debug (SWD), JTAG, and ETM
  • True random number generator (TRNG)
  • CRC calculation unit, 96-bit unique ID
  • ECOPACK2 compliant, RoHS certified

Applications

  • Industrial control and factory automation
  • Motor drives and robotics
  • Ethernet-connected devices and IoT gateways
  • Medical equipment and instrumentation
  • Industrial PLCs and HMIs
  • Networking and communication equipment
  • Security systems and surveillance
  • Consumer electronics and set-top boxes
  • Automotive infotainment (secondary systems)
  • Camera and imaging applications

The STM32F205VET6 is a high-performance 32-bit microcontroller from STMicroelectronics, based on the ARM Cortex-M3 RISC core operating at up to 120 MHz. Part of the STM32F2 series, it features ST’s Adaptive Real-Time memory accelerator (ART Accelerator) that enables 0-wait state program execution from Flash memory, delivering 150 DMIPS of performance. The device includes 512 Kbytes of Flash memory, 128 Kbytes of system SRAM, 4 Kbytes of backup SRAM, and 512 bytes of OTP memory, all housed in an LQFP-100 package (14x14x1.4 mm). Its rich peripheral set includes three 12-bit ADCs with up to 16 channels and triple interleaved mode for up to 6 MSPS sampling, two 12-bit DACs, a 16-stream DMA controller with FIFOs and burst support, up to 17 timers including two 32-bit timers, USB 2.0 full-speed and high-speed OTG controllers, 10/100 Ethernet MAC with IEEE 1588v2 hardware timestamp support, a parallel camera interface (DCMI), SDIO interface, two CAN interfaces, and multiple serial communication interfaces. The flexible static memory controller (FSMC) supports external memory expansion with SRAM, PSRAM, NOR, and NAND Flash interfaces. The STM32F205VET6 operates from 1.8 to 3.6 V in the -40 to +85C temperature range.

The STM32F205VET6 is built on the ARM Cortex-M3 32-bit RISC core with Thumb-2 instruction set, operating at up to 120 MHz. The ART Accelerator (Adaptive Real-Time memory accelerator) is a key feature that prefetches instructions from Flash memory, allowing the core to execute at full speed with effectively 0 wait states, achieving 1.25 DMIPS/MHz or 150 DMIPS total. The memory protection unit (MPU) enables privileged/user mode separation for enhanced system security. The clock architecture includes a 4-26 MHz HSE crystal oscillator, a 16 MHz factory-trimmed HSI RC oscillator (+/-1% accuracy), a 32 kHz LSE oscillator, and a 32 kHz LSI RC oscillator. Two PLLs generate the system clock and dedicated clocks for USB and audio peripherals. The multi-AHB bus matrix with 32-bit buses connects the core, memories, DMA, and peripherals, enabling parallel access and high system throughput. The 16-stream DMA controller with centralized FIFOs and burst support efficiently handles data transfers without CPU intervention. Power management includes multiple low-power modes with progressively lower consumption: Sleep (CPU halted), Stop (clocks stopped, regulators in low-power mode, SRAM retained), and Standby (minimum power, only RTC and backup domain active). The VBAT supply maintains RTC operation and backup register contents during main power loss.

Pin Group Count Description
PA0-PA15 16 Port A I/O, 5V-tolerant, ADC channels, timers, communication
PB0-PB15 16 Port B I/O, 5V-tolerant, ADC channels, timers, communication
PC0-PC15 16 Port C I/O, 5V-tolerant, ADC channels, oscillators
PD0-PD15 16 Port D I/O, FSMC data/control, USART
PE0-PE15 16 Port E I/O, FSMC data/control, timers, ADC
PH0-PH1 2 Port H I/O (OSC_IN/OSC_OUT)
VDD pins Multiple Digital power supply (1.8-3.6V)
VSS pins Multiple Digital ground
VDDA 1 Analog power supply
VSSA 1 Analog ground
VBAT 1 Battery supply for RTC/backup
NRST 1 Active-low reset
BOOT0 1 Boot mode selection pin
PA13/SWDIO 1 SWD data I/O / JTAG TMS
PA14/SWCLK 1 SWD clock / JTAG TCK
PA11/PA12 2 USB FS D-/D+ data lines
ETH pins Multiple Ethernet MAC interface (MII/RMII)
DCMI pins Multiple Camera interface data and control
  • Industrial automation systems and PLCs
  • Motor control and robotics with high precision
  • Ethernet-enabled IoT gateways and edge devices
  • Medical equipment and diagnostic instruments
  • Human-machine interfaces (HMI) with displays
  • Networked security and surveillance systems
  • Industrial communication protocol converters
  • Smart grid and energy management systems
  • Camera and vision processing applications
  • Automotive infotainment and telematics
Model Difference
STM32F205VGT6 1MB Flash, same package and peripherals
STM32F207VET6 Adds Ethernet MAC, same Flash/package
STM32F405VGT6 Cortex-M4F, 168MHz, DSP/FPU, 1MB Flash
STM32F205ZET6 LQFP-144, 114 I/O pins, 24 ADC channels
STM32F205RET6 LQFP-64, 51 I/O pins, smaller form factor
