STM32F302RBT6

ARM Cortex-M4F MCU at 72MHz with 128KB Flash, 40KB SRAM, 2x 12-bit ADC (5MSPS), 2x Op-Amp PGA, 4x comparators, CAN, USB in LQFP-64.

6532

Effective Inventory
Go to Inquiry

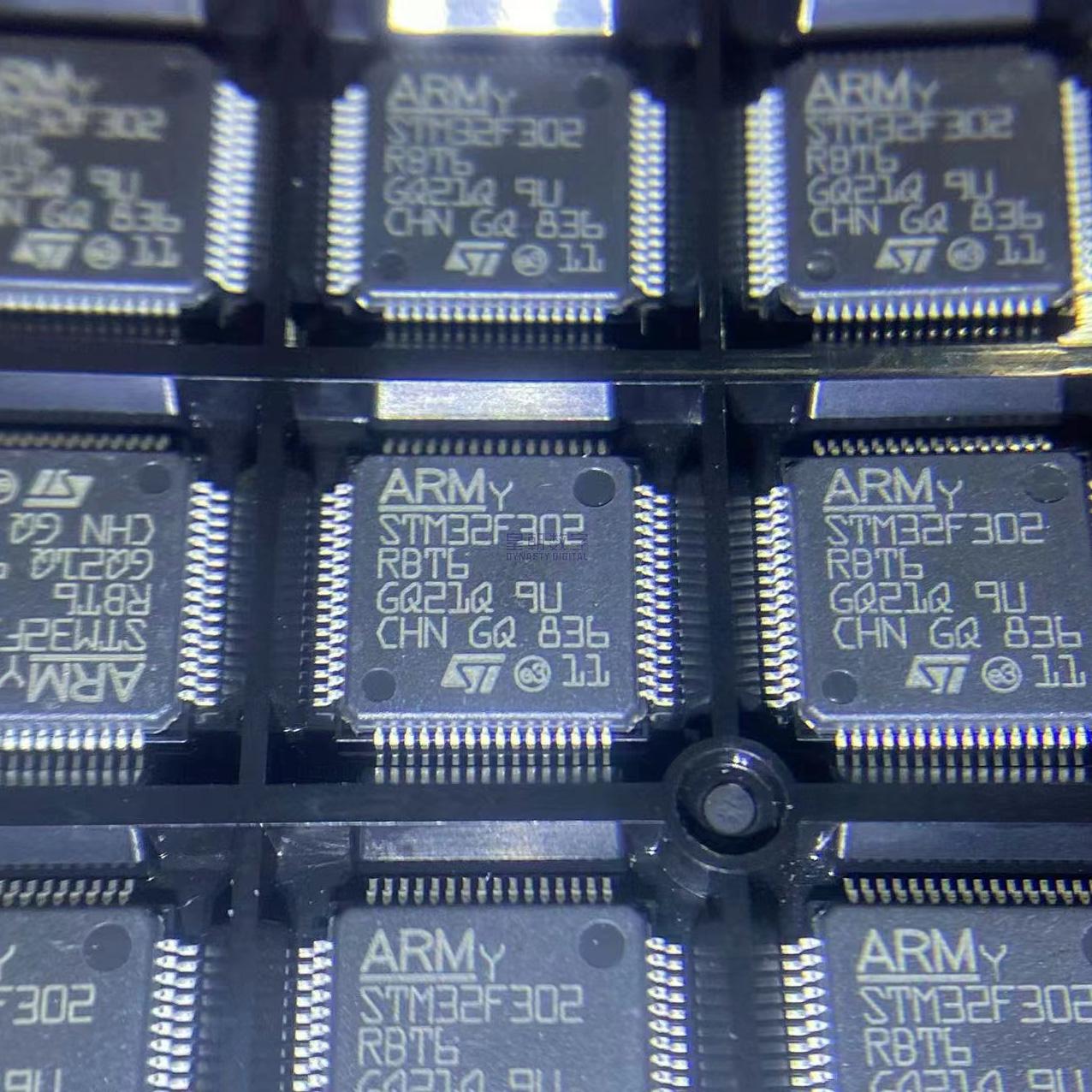

Image for reference only

Manufacturer Part：

STM32F302RBT6

Package：

LQFP-64

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STM32F302RBT6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M4 32-bit with FPU and DSP operating at up to 72 MHz. It integrates 128 KB of Flash memory and 40 KB (with hardware parity check on 16KB) of SRAM. Housed in a LQFP-64 package with 52 I/O pins, this MCU offers an excellent balance of performance, peripheral integration, and power efficiency. The device operates from 2.0V to 3.6V and supports industrial temperature range of -40°C to +85°C.

Key Specifications

Core ARM Cortex-M4 32-bit with FPU and DSP
Maximum Frequency 72 MHz
Flash Memory 128 KB
SRAM 40 KB (with hardware parity check on 16KB)
Package LQFP-64
Operating Voltage 2.0V to 3.6V
Operating Temperature -40°C to +85°C
I/O Pins 52
2x 12-bit ADC up to 17 channels, 5 MSPS, differential mode
DAC 1x 12-bit channel
DMA 12-channel controller
Timers Up to 11 (1x 32-bit + 7x 16-bit + 2x WDT + SysTick)
USART/UART 3x USART + 2x UART
SPI/I2S 3x SPI, 2 with muxed I2S
I2C 2x Fast-mode Plus (1 Mbit/s)
CAN 1x CAN 2.0B Active
USB USB 2.0 Full Speed interface
Other Peripherals 2x Op-Amp PGA + 4x Comparators + Capacitive Sensing + Interconnect Matrix
Performance 90 DMIPS (Cortex-M4F)

Features

  • High-performance ARM core with FPU and DSP instructions
  • ART Accelerator enabling 0-wait state execution from Flash memory
  • Rich set of analog peripherals including high-speed ADC(s) and DAC(s)
  • DMA controller for autonomous data transfers
  • Advanced timers including PWM motor control and watchdog timers
  • Multiple communication interfaces: I2C, USART, SPI/I2S
  • Low-power modes: Sleep, Stop, Standby with VBAT support
  • CRC calculation unit and unique device ID
  • Industrial temperature range and RoHS compliant

Applications

  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices

The STM32F302RBT6 is a mainstream value-line microcontroller from STMicroelectronics, built on the ARM Cortex-M4 32-bit with FPU and DSP operating at up to 72 MHz. It integrates 128 KB of Flash memory and 40 KB (with hardware parity check on 16KB) of SRAM, providing ample resources for complex embedded applications. The device features up to 17 channels, 5 MSPS, differential mode, along with comprehensive communication interfaces including 2x Fast-mode Plus (1 Mbit/s), 3x USART + 2x UART, and 3x SPI, 2 with muxed I2S. Additional connectivity includes CAN interface, USB OTG. Housed in a LQFP-64 package with 52 I/O pins, the STM32F302RBT6 operates from 2.0V to 3.6V supply voltage across the -40°C to +85°C industrial temperature range. It is ideal for a wide range of applications including industrial control, IoT devices, motor drives, consumer electronics, and automotive systems (where applicable).

The STM32F302RBT6 operates on the ARM Cortex-M4 32-bit with FPU and DSP architecture with an advanced pipeline design. The core runs at up to 72 MHz with a nested vectored interrupt controller (NVIC) for low-latency interrupt handling. The multi-layer bus matrix connects the core, DMA controllers, and peripherals to memory resources, enabling parallel data transfers without CPU intervention. The DMA controller handles data transfers between peripherals and memory autonomously, freeing the CPU for application processing. The analog subsystem includes high-speed ADC(s) with multiple channels and DMA support. Power management is achieved through multiple low-power modes including Sleep, Stop, and Standby, with progressive power reduction. The integrated voltage regulator operates in various modes depending on system state. The VBAT pin maintains RTC operation and backup register contents during main power loss. The device supports multiple boot options including user Flash, system memory bootloader, and embedded SRAM, depending on BOOT pin configuration.

Pin Group Type Function
VDD (multiple) Power Main power supply
VSS (multiple) Ground Ground
VDDA Power Analog power supply for ADC/DAC
VSSA Ground Analog ground
VBAT Power Battery backup for RTC and backup registers
NRST I/O Active-low reset
PA13 I/O SWDIO (Serial Wire Debug Data I/O)
PA14 I/O SWCLK (Serial Wire Debug Clock)
PA9/PA10 I/O USART1_TX/RX / I2C1 pins
PA2/PA3 I/O USART2_TX/RX / ADC channels
PA5/PA6/PA7 I/O SPI1_SCK/MISO/MOSI / ADC channels
PA0 I/O ADC_IN0 / WKUP1 / TIM2_CH1
PC13 I/O GPIO / TAMPER / RTC_OUT
PC14/PC15 I/O LSE oscillator pins / GPIO
PH0/PH1 I/O HSE oscillator pins
Total I/O – Up to 52 I/O pins, most 5V tolerant
  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices
Model Manufacturer Key Difference
STM32F302CBT6 STMicroelectronics 48-pin LQFP, same core/memory, fewer I/O
STM32F303RBT6 STMicroelectronics 4 ADCs, 4 Op-Amps, more comparators, full analog features
STM32F030R8T6 STMicroelectronics Cortex-M0 at 48MHz, lower cost, basic peripherals
STM32G431RBT6 STMicroelectronics Cortex-M4F at 170MHz, higher performance, math accelerator
GD32F303RBT6 GigaDevice Pin-compatible alternative, 108MHz Cortex-M4
