STM32F401CCU6

ARM Cortex-M4F MCU at 84MHz with 256KB Flash, 64KB SRAM, USB OTG FS, SDIO, 12-bit ADC, compact UFQFPN-48 package.

9124

Effective Inventory
Go to Inquiry

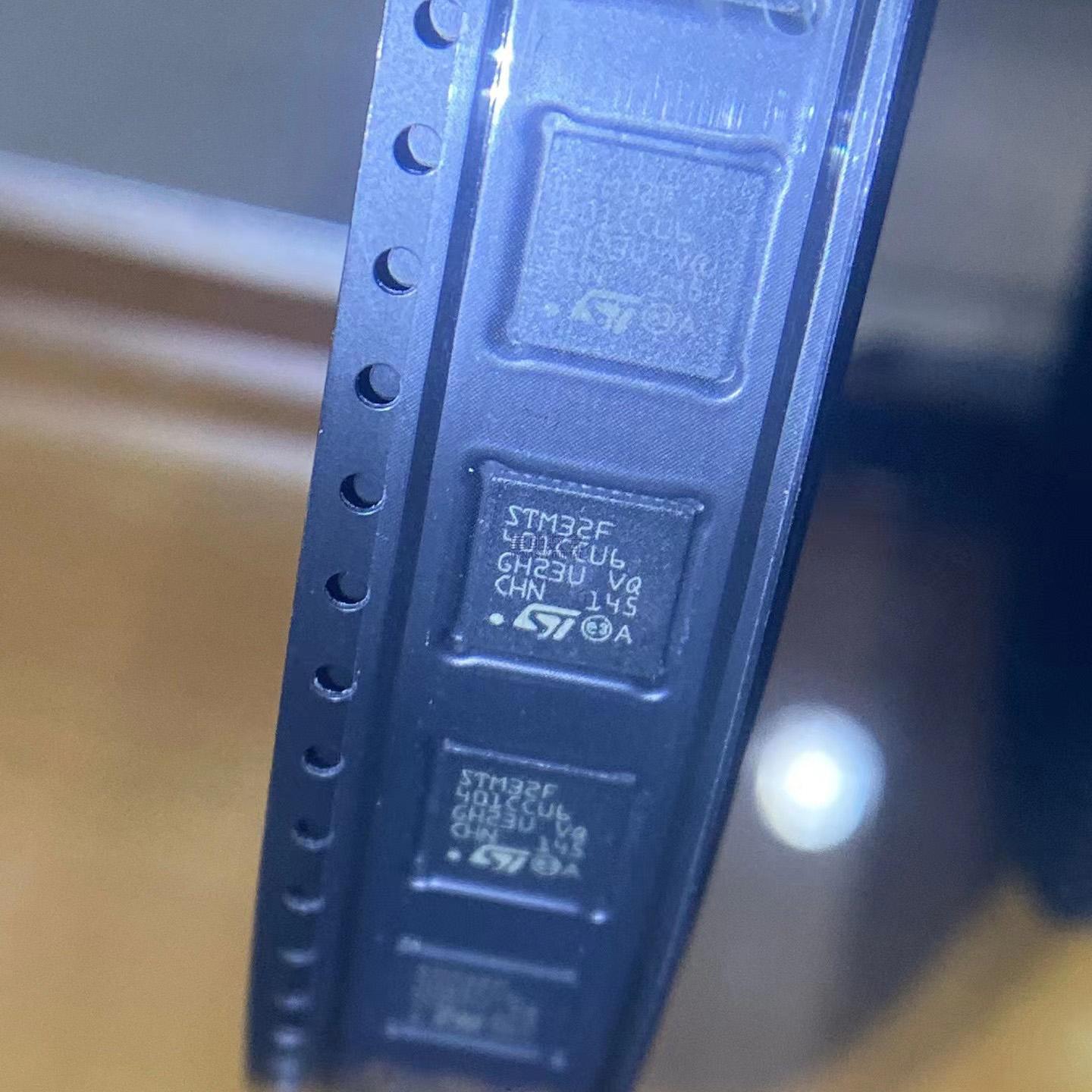

Image for reference only

Manufacturer Part：

STM32F401CCU6

Package：

UFQFPN-48

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STM32F401CCU6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M4 32-bit with DSP and FPU operating at up to 84 MHz. It integrates 256 KB of Flash memory and 64 KB of SRAM. Housed in a UFQFPN-48 package with 36 (5V tolerant) I/O pins, this MCU offers an excellent balance of performance, peripheral integration, and power efficiency. The device operates from 1.7V to 3.6V and supports industrial temperature range of -40°C to +85°C.

Key Specifications

Core ARM Cortex-M4 32-bit with DSP and FPU
Maximum Frequency 84 MHz
Flash Memory 256 KB
SRAM 64 KB
Package UFQFPN-48
Operating Voltage 1.7V to 3.6V
Operating Temperature -40°C to +85°C
I/O Pins 36 (5V tolerant)
1x 12-bit ADC 2.4 MSPS, up to 16 channels
DAC N/A
DMA 16-stream controller with FIFOs and burst support
Timers Up to 11 (6x 16-bit + 2x 32-bit + 2x WDT + SysTick)
USART/UART 3x USART
SPI/I2S 3x SPI (up to 42 Mbit/s), 2 with muxed I2S
I2C 3x (up to 1 Mbit/s, SMBus/PMBus)
USB USB 2.0 Full-Speed Device/Host/OTG with on-chip PHY
Other Peripherals SDIO + CRC + 96-bit UID + ART Accelerator
Performance 105 DMIPS / 1.25 DMIPS/MHz

Features

  • High-performance ARM core with FPU and DSP instructions
  • ART Accelerator enabling 0-wait state execution from Flash memory
  • Rich set of analog peripherals including high-speed ADC(s) and DAC(s)
  • DMA controller for autonomous data transfers
  • Advanced timers including PWM motor control and watchdog timers
  • Multiple communication interfaces: I2C, USART, SPI/I2S
  • Low-power modes: Sleep, Stop, Standby with VBAT support
  • CRC calculation unit and unique device ID
  • Industrial temperature range and RoHS compliant

Applications

  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices

The STM32F401CCU6 is a mainstream value-line microcontroller from STMicroelectronics, built on the ARM Cortex-M4 32-bit with DSP and FPU operating at up to 84 MHz. It integrates 256 KB of Flash memory and 64 KB of SRAM, providing ample resources for complex embedded applications. The device features 2.4 MSPS, up to 16 channels, along with comprehensive communication interfaces including 3x (up to 1 Mbit/s, SMBus/PMBus), 3x USART, and 3x SPI (up to 42 Mbit/s), 2 with muxed I2S. Additional connectivity includes USB OTG. Housed in a UFQFPN-48 package with 36 (5V tolerant) I/O pins, the STM32F401CCU6 operates from 1.7V to 3.6V supply voltage across the -40°C to +85°C industrial temperature range. It is ideal for a wide range of applications including industrial control, IoT devices, motor drives, consumer electronics, and automotive systems (where applicable).

The STM32F401CCU6 operates on the ARM Cortex-M4 32-bit with DSP and FPU architecture with an advanced pipeline design. The core runs at up to 84 MHz with a nested vectored interrupt controller (NVIC) for low-latency interrupt handling. The multi-layer bus matrix connects the core, DMA controllers, and peripherals to memory resources, enabling parallel data transfers without CPU intervention. The DMA controller handles data transfers between peripherals and memory autonomously, freeing the CPU for application processing. The analog subsystem includes high-speed ADC(s) with multiple channels and DMA support. Power management is achieved through multiple low-power modes including Sleep, Stop, and Standby, with progressive power reduction. The integrated voltage regulator operates in various modes depending on system state. The VBAT pin maintains RTC operation and backup register contents during main power loss. The device supports multiple boot options including user Flash, system memory bootloader, and embedded SRAM, depending on BOOT pin configuration.

Pin Group Type Function
VDD (multiple) Power Main power supply
VSS (multiple) Ground Ground
VDDA Power Analog power supply for ADC/DAC
VSSA Ground Analog ground
VBAT Power Battery backup for RTC and backup registers
NRST I/O Active-low reset
PA13 I/O SWDIO (Serial Wire Debug Data I/O)
PA14 I/O SWCLK (Serial Wire Debug Clock)
PA9/PA10 I/O USART1_TX/RX / I2C1 pins
PA2/PA3 I/O USART2_TX/RX / ADC channels
PA5/PA6/PA7 I/O SPI1_SCK/MISO/MOSI / ADC channels
PA0 I/O ADC_IN0 / WKUP1 / TIM2_CH1
PC13 I/O GPIO / TAMPER / RTC_OUT
PC14/PC15 I/O LSE oscillator pins / GPIO
PH0/PH1 I/O HSE oscillator pins
Total I/O – Up to 36 I/O pins, most 5V tolerant
  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices
Model Manufacturer Key Difference
STM32F401CBU6 STMicroelectronics 128KB Flash (half), same package and peripherals
STM32F411CEU6 STMicroelectronics 512KB Flash, 128KB SRAM, 100MHz, similar package
STM32F401RCT6 STMicroelectronics LQFP-64 package, 256KB Flash, more I/O pins
STM32G431CBU6 STMicroelectronics Cortex-M4F at 170MHz, math accelerator, more analog
GD32F403CBU6 GigaDevice Pin-compatible alternative, 168MHz Cortex-M4
