STM32F745VET6

ARM Cortex-M7 MCU at 216MHz with 512KB Flash, 340KB SRAM, L1 cache, Ethernet, dual USB OTG, SAI, camera I/F, QSPI in LQFP-100.

4876

Effective Inventory
Go to Inquiry

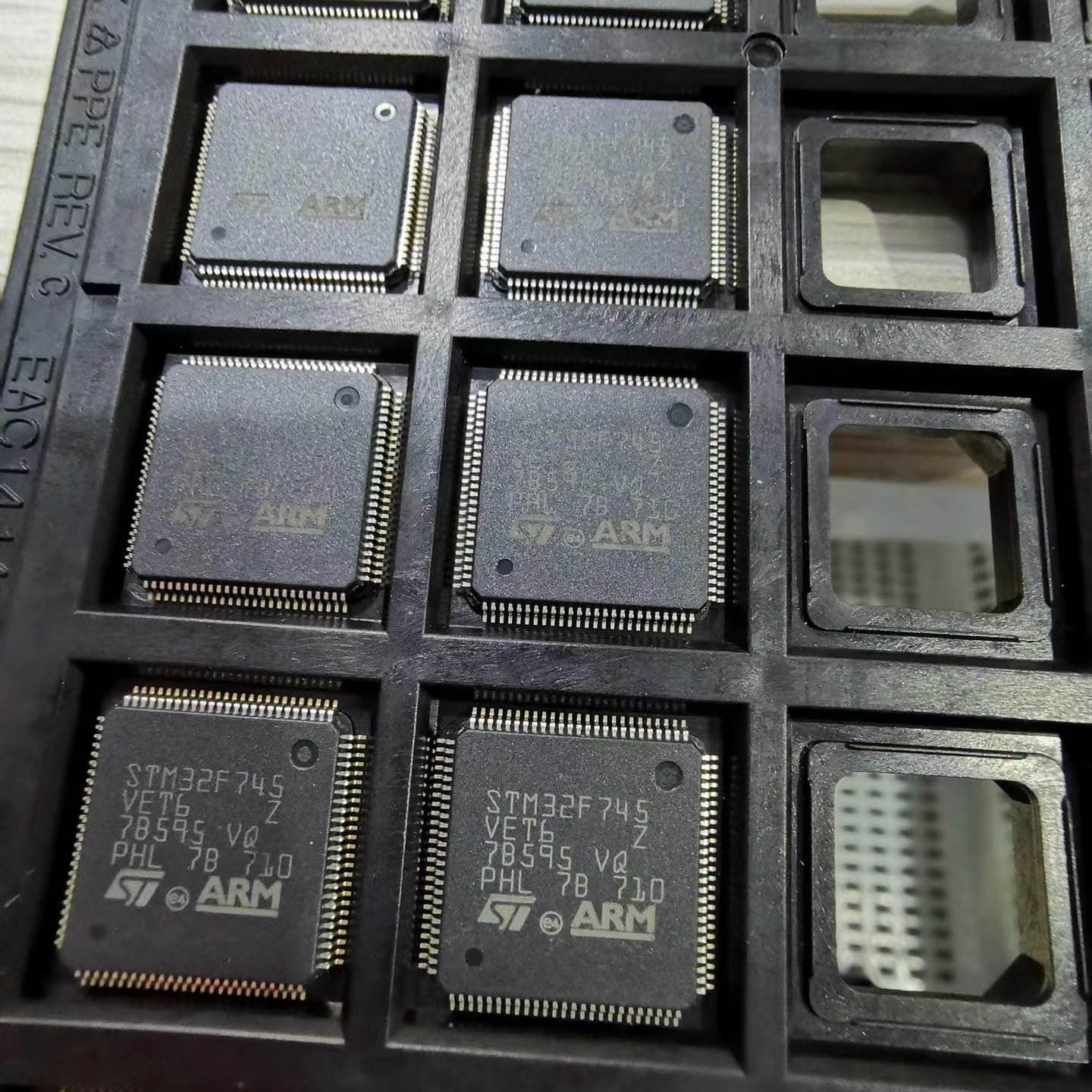

Image for reference only

Manufacturer Part：

STM32F745VET6

Package：

LQFP-100

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

Description

Product Overview

The STM32F745VET6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M7 32-bit with DP-FPU and DSP operating at up to 216 MHz. It integrates 512 KB of Flash memory and 340 KB (320KB system + 16KB I-TCM + 4KB backup) of SRAM. Housed in a LQFP-100 package with 82 (up to 80 fast I/Os up to 108 MHz) I/O pins, this MCU offers an excellent balance of performance, peripheral integration, and power efficiency. The device operates from 1.7V to 3.6V and supports industrial temperature range of -40°C to +85°C.

Key Specifications

Core ARM Cortex-M7 32-bit with DP-FPU and DSP
Maximum Frequency 216 MHz
Flash Memory 512 KB
SRAM 340 KB (320KB system + 16KB I-TCM + 4KB backup)
Package LQFP-100
Operating Voltage 1.7V to 3.6V
Operating Temperature -40°C to +85°C
I/O Pins 82 (up to 80 fast I/Os up to 108 MHz)
3x 12-bit ADC 2.4 MSPS, up to 16 channels, 7.2 MSPS triple interleaved
DAC 2x 12-bit
DMA 16-stream controller with FIFOs and burst support
Timers Up to 18 (13x 16-bit + 2x 32-bit + 1x LPTIM + 2x WDT + SysTick)
USART/UART 4x USART + 4x UART
SPI/I2S 4x SPI + 3x I2S
I2C 4x
CAN 2x CAN 2.0B Active
Ethernet 10/100 MAC with IEEE 1588v2, MII/RMII
USB USB OTG HS (with ULPI) + USB OTG FS
Other Peripherals 2x SAI + SPDIFRX + SDMMC + Camera I/F + QSPI + FMC + Chrom-ART + RNG
Performance 462 DMIPS / 2.14 DMIPS/MHz

Features

  • High-performance ARM core with FPU and DSP instructions
  • ART Accelerator enabling 0-wait state execution from Flash memory
  • Rich set of analog peripherals including high-speed ADC(s) and DAC(s)
  • DMA controller for autonomous data transfers
  • Advanced timers including PWM motor control and watchdog timers
  • Multiple communication interfaces: I2C, USART, SPI/I2S
  • Low-power modes: Sleep, Stop, Standby with VBAT support
  • CRC calculation unit and unique device ID
  • Industrial temperature range and RoHS compliant

Applications

  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices

The STM32F745VET6 is a high-performance microcontroller from STMicroelectronics, built on the ARM Cortex-M7 32-bit with DP-FPU and DSP operating at up to 216 MHz. It integrates 512 KB of Flash memory and 340 KB (320KB system + 16KB I-TCM + 4KB backup) of SRAM, providing ample resources for complex embedded applications. The device features 2.4 MSPS, up to 16 channels, 7.2 MSPS triple interleaved, along with comprehensive communication interfaces including 4x, 4x USART + 4x UART, and 4x SPI + 3x I2S. Additional connectivity includes CAN interface, Ethernet MAC, USB OTG. Housed in a LQFP-100 package with 82 (up to 80 fast I/Os up to 108 MHz) I/O pins, the STM32F745VET6 operates from 1.7V to 3.6V supply voltage across the -40°C to +85°C industrial temperature range. It is ideal for a wide range of applications including industrial control, IoT devices, motor drives, consumer electronics, and automotive systems (where applicable).

The STM32F745VET6 operates on the ARM Cortex-M7 32-bit with DP-FPU and DSP architecture with an advanced pipeline design. The core runs at up to 216 MHz with a nested vectored interrupt controller (NVIC) for low-latency interrupt handling. The multi-layer bus matrix connects the core, DMA controllers, and peripherals to memory resources, enabling parallel data transfers without CPU intervention. The DMA controller handles data transfers between peripherals and memory autonomously, freeing the CPU for application processing. The analog subsystem includes high-speed ADC(s) with multiple channels and DMA support. Power management is achieved through multiple low-power modes including Sleep, Stop, and Standby, with progressive power reduction. The integrated voltage regulator operates in various modes depending on system state. The VBAT pin maintains RTC operation and backup register contents during main power loss. The device supports multiple boot options including user Flash, system memory bootloader, and embedded SRAM, depending on BOOT pin configuration.

Pin Group Type Function
VDD (multiple) Power Main power supply
VSS (multiple) Ground Ground
VDDA Power Analog power supply for ADC/DAC
VSSA Ground Analog ground
VBAT Power Battery backup for RTC and backup registers
NRST I/O Active-low reset
PA13 I/O SWDIO (Serial Wire Debug Data I/O)
PA14 I/O SWCLK (Serial Wire Debug Clock)
PA9/PA10 I/O USART1_TX/RX / I2C1 pins
PA2/PA3 I/O USART2_TX/RX / ADC channels
PA5/PA6/PA7 I/O SPI1_SCK/MISO/MOSI / ADC channels
PA0 I/O ADC_IN0 / WKUP1 / TIM2_CH1
PC13 I/O GPIO / TAMPER / RTC_OUT
PC14/PC15 I/O LSE oscillator pins / GPIO
PH0/PH1 I/O HSE oscillator pins
Total I/O – Up to 82 I/O pins, most 5V tolerant
  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices
Model Manufacturer Key Difference
STM32F746VGT6 STMicroelectronics 1MB Flash, LCD-TFT controller, more graphics features
STM32F745VGT6 STMicroelectronics 1MB Flash, same peripherals and package
STM32F767VIT6 STMicroelectronics 2MB Flash, 512KB SRAM, JPEG codec, DFSDM, more peripherals
STM32H743VIT6 STMicroelectronics Cortex-M7 at 480MHz, 2MB Flash, 1MB SRAM, higher performance
STM32F429VIT6 STMicroelectronics Cortex-M4F at 180MHz, 2MB Flash, LCD controller, lower cost
