STM32G030F6P6TR

ARM Cortex-M0+ MCU at 64MHz with 32KB Flash, 8KB SRAM, 12-bit ADC (2.5MSPS), 2x I2C FMP, 2x USART, 2x SPI, compact TSSOP-20 package.

12459

Effective Inventory
Go to Inquiry

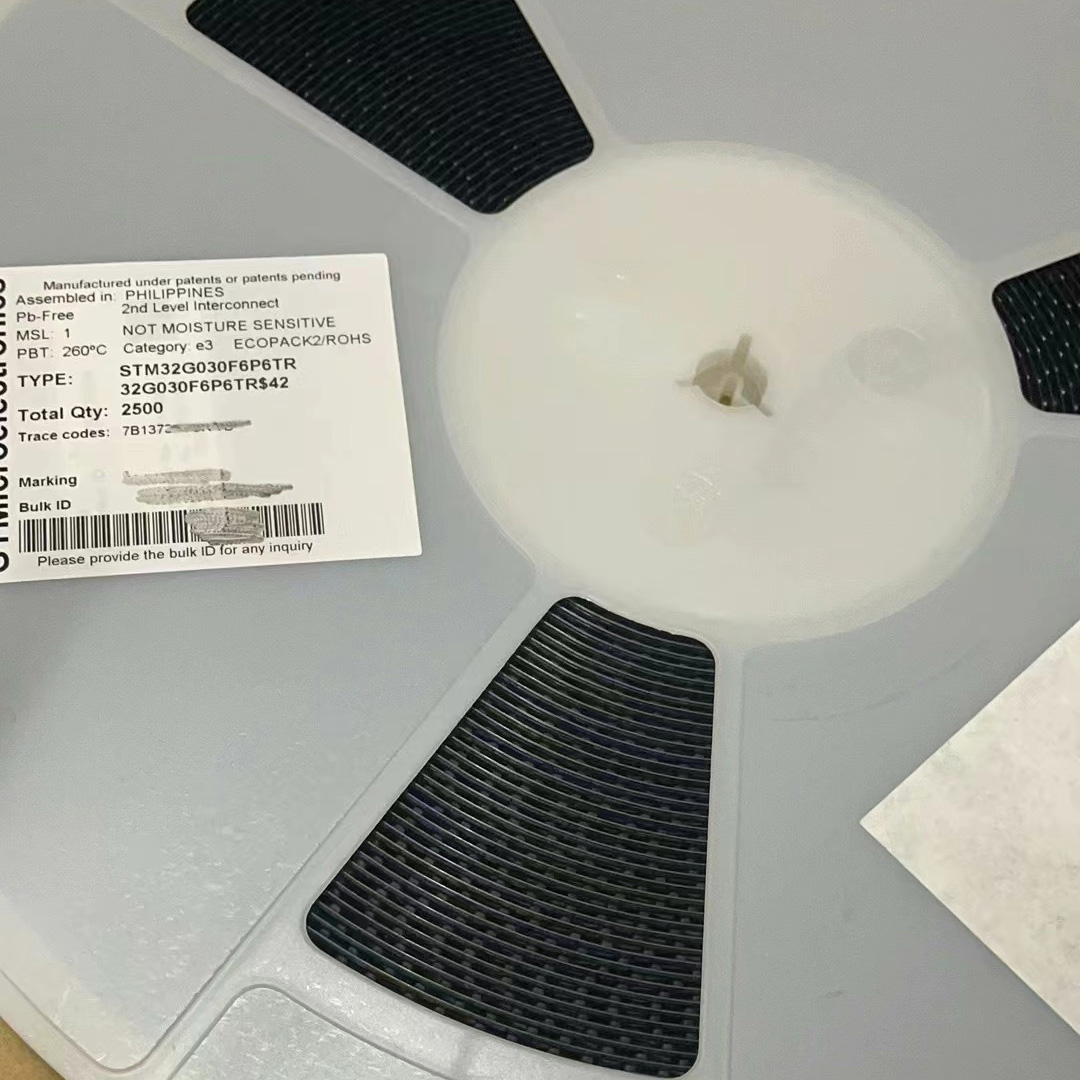

Image for reference only

Manufacturer Part：

STM32G030F6P6TR

Package：

TSSOP-20

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32F767IIT6

STM32F745VET6

Description

Product Overview

The STM32G030F6P6TR is a high-performance 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M0+ 32-bit RISC operating at up to 64 MHz. It integrates 32 KB (with read/write protection) of Flash memory and 8 KB (with hardware parity check) of SRAM. Housed in a TSSOP-20 package with 17 (5V tolerant) I/O pins, this MCU offers an excellent balance of performance, peripheral integration, and power efficiency. The device operates from 2.0V to 3.6V and supports industrial temperature range of -40°C to +85°C.

Key Specifications

Core ARM Cortex-M0+ 32-bit RISC
Maximum Frequency 64 MHz
Flash Memory 32 KB (with read/write protection)
SRAM 8 KB (with hardware parity check)
Package TSSOP-20
Operating Voltage 2.0V to 3.6V
Operating Temperature -40°C to +85°C
I/O Pins 17 (5V tolerant)
1x 12-bit ADC 2.5 MSPS, up to 14 external channels + 2 internal
DAC N/A
DMA 5-channel controller with flexible mapping
Timers 8 total: 1x advanced motor control, 4x 16-bit GP, 2x WDT, SysTick
USART/UART 2x USART (with SPI, LIN, IrDA, auto baud rate)
SPI/I2S 2x SPI (32 Mbit/s), 1 muxed with I2S
I2C 2x Fast-mode Plus (1 Mbit/s)
Other Peripherals CRC + MPU + RTC Calendar + Capacitive Sensing + Hardware Oversampling ADC
Performance ~60 DMIPS (Cortex-M0+)

Features

  • High-performance ARM core with FPU and DSP instructions
  • ART Accelerator enabling 0-wait state execution from Flash memory
  • Rich set of analog peripherals including high-speed ADC(s) and DAC(s)
  • DMA controller for autonomous data transfers
  • Advanced timers including PWM motor control and watchdog timers
  • Multiple communication interfaces: I2C, USART, SPI/I2S
  • Low-power modes: Sleep, Stop, Standby with VBAT support
  • CRC calculation unit and unique device ID
  • Industrial temperature range and RoHS compliant

Applications

  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices

The STM32G030F6P6TR is a mainstream value-line microcontroller from STMicroelectronics, built on the ARM Cortex-M0+ 32-bit RISC operating at up to 64 MHz. It integrates 32 KB (with read/write protection) of Flash memory and 8 KB (with hardware parity check) of SRAM, providing ample resources for complex embedded applications. The device features 2.5 MSPS, up to 14 external channels + 2 internal, along with comprehensive communication interfaces including 2x Fast-mode Plus (1 Mbit/s), 2x USART (with SPI, LIN, IrDA, auto baud rate), and 2x SPI (32 Mbit/s), 1 muxed with I2S. Housed in a TSSOP-20 package with 17 (5V tolerant) I/O pins, the STM32G030F6P6TR operates from 2.0V to 3.6V supply voltage across the -40°C to +85°C industrial temperature range. It is ideal for a wide range of applications including industrial control, IoT devices, motor drives, consumer electronics, and automotive systems (where applicable).

The STM32G030F6P6TR operates on the ARM Cortex-M0+ 32-bit RISC architecture with an advanced pipeline design. The core runs at up to 64 MHz with a nested vectored interrupt controller (NVIC) for low-latency interrupt handling. The multi-layer bus matrix connects the core, DMA controllers, and peripherals to memory resources, enabling parallel data transfers without CPU intervention. The DMA controller handles data transfers between peripherals and memory autonomously, freeing the CPU for application processing. The analog subsystem includes high-speed ADC(s) with multiple channels and DMA support. Power management is achieved through multiple low-power modes including Sleep, Stop, and Standby, with progressive power reduction. The integrated voltage regulator operates in various modes depending on system state. The VBAT pin maintains RTC operation and backup register contents during main power loss. The device supports multiple boot options including user Flash, system memory bootloader, and embedded SRAM, depending on BOOT pin configuration.

Pin Group Type Function
VDD (multiple) Power Main power supply
VSS (multiple) Ground Ground
VDDA Power Analog power supply for ADC/DAC
VSSA Ground Analog ground
VBAT Power Battery backup for RTC and backup registers
NRST I/O Active-low reset
PA13 I/O SWDIO (Serial Wire Debug Data I/O)
PA14 I/O SWCLK (Serial Wire Debug Clock)
PA9/PA10 I/O USART1_TX/RX / I2C1 pins
PA2/PA3 I/O USART2_TX/RX / ADC channels
PA5/PA6/PA7 I/O SPI1_SCK/MISO/MOSI / ADC channels
PA0 I/O ADC_IN0 / WKUP1 / TIM2_CH1
PC13 I/O GPIO / TAMPER / RTC_OUT
PC14/PC15 I/O LSE oscillator pins / GPIO
PH0/PH1 I/O HSE oscillator pins
Total I/O – Up to 17 I/O pins, most 5V tolerant
  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices
Model Manufacturer Key Difference
STM32G030C6T6 STMicroelectronics LQFP-48 package, 32KB Flash, more I/O and peripherals
STM32G030K6T6 STMicroelectronics LQFP-32 package, 32KB Flash, 29 I/O pins
STM32G030J6M6 STMicroelectronics SO8N package, minimal footprint, 5 GPIO, entry-level
STM32C031F6P6 STMicroelectronics Lower cost, similar specs, C0 series value line
GD32E230F6P6 GigaDevice Pin-compatible alternative, Cortex-M23 at 72MHz
