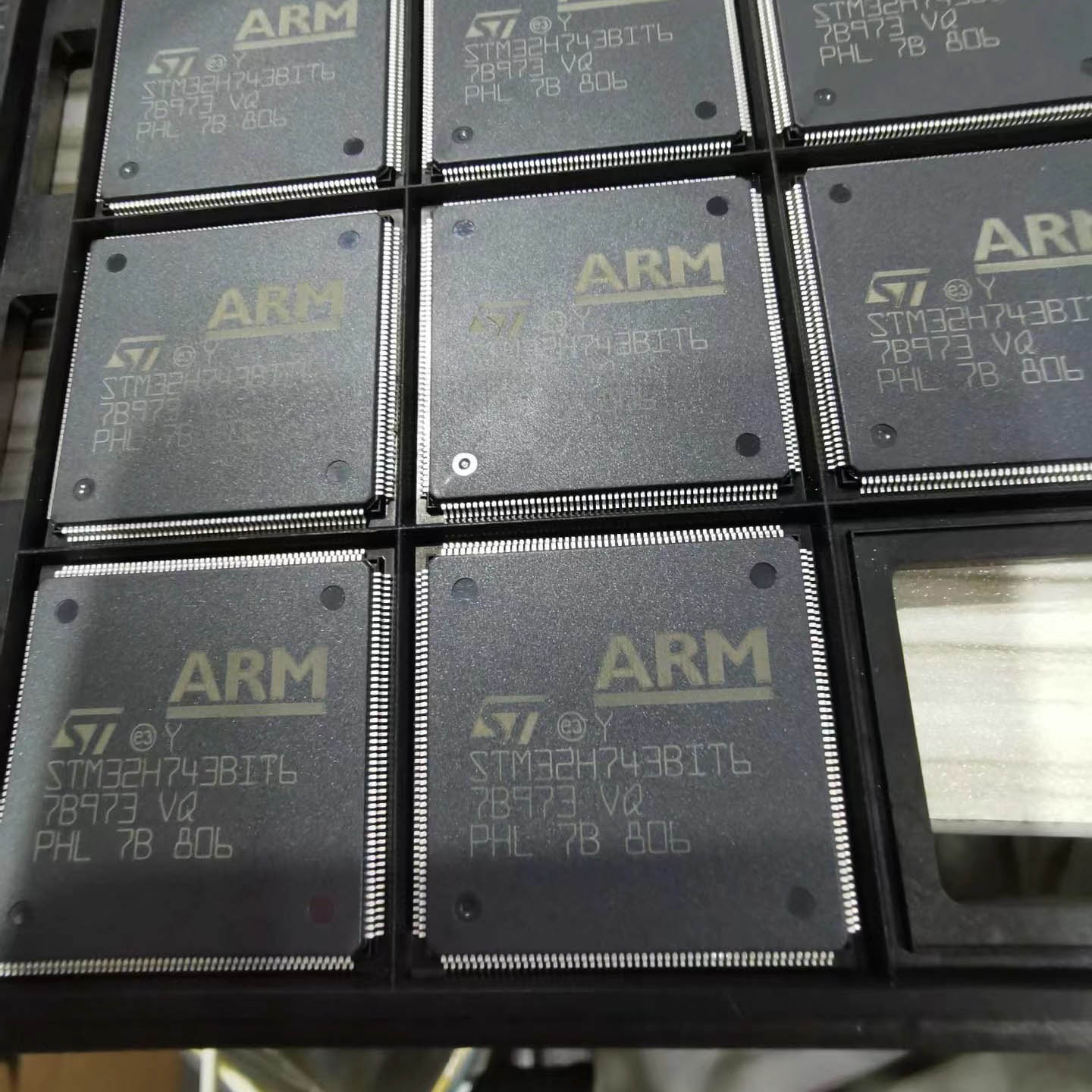

STM32H743BIT6

Flagship ARM Cortex-M7 MCU at 480MHz with 2MB dual-bank Flash, 1MB SRAM, LCD-TFT, JPEG, FDCAN, Ethernet, DFSDM, HRTIM in LQFP-208.

2743

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

STM32H743BIT6

Package：

LQFP-208

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32G030F6P6TR

STM32F767IIT6

STM32F745VET6

Description

Product Overview

The STM32H743BIT6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M7 32-bit with DP-FPU and DSP operating at up to 480 MHz. It integrates 2 MB (dual bank, ECC, read-while-write) of Flash memory and 1 MB (192KB TCM + 864KB user + 4KB backup) of SRAM. Housed in a LQFP-208 package with Up to 168 I/O pins, this MCU offers an excellent balance of performance, peripheral integration, and power efficiency. The device operates from 1.62V to 3.6V and supports industrial temperature range of -40°C to +85°C.

Key Specifications

Core ARM Cortex-M7 32-bit with DP-FPU and DSP
Maximum Frequency 480 MHz
Flash Memory 2 MB (dual bank, ECC, read-while-write)
SRAM 1 MB (192KB TCM + 864KB user + 4KB backup)
Package LQFP-208
Operating Voltage 1.62V to 3.6V
Operating Temperature -40°C to +85°C
I/O Pins Up to 168
3x 12-bit ADC 3.6 MSPS, up to 36 channels
DAC 2x 12-bit
DMA Multiple DMA controllers
Timers Up to 20+ (12x 16-bit + 2x 32-bit + 5x LPTIM + 2x WDT + HRTIM)
USART/UART 4x USART + 4x UART + 1x LPUART
SPI/I2S 6x SPI + 3x half-duplex I2S
I2C 4x
CAN 1x FDCAN + 1x TT-FDCAN
Ethernet 10/100 MAC with IEEE 1588v2 PTP
USB USB OTG HS (ULPI) + USB OTG FS
Other Peripherals 4x SAI + SPDIFRX + 2x SDMMC + DCMI + LCD-TFT + JPEG Codec + Chrom-ART + QSPI + FMC + DFSDM + HRTIM + 2x Comp + RNG
Performance Up to 1027 DMIPS (CoreMark > 3000)

Features

  • High-performance ARM core with FPU and DSP instructions
  • ART Accelerator enabling 0-wait state execution from Flash memory
  • Rich set of analog peripherals including high-speed ADC(s) and DAC(s)
  • DMA controller for autonomous data transfers
  • Advanced timers including PWM motor control and watchdog timers
  • Multiple communication interfaces: I2C, USART, SPI/I2S
  • Low-power modes: Sleep, Stop, Standby with VBAT support
  • CRC calculation unit and unique device ID
  • Industrial temperature range and RoHS compliant

Applications

  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices

The STM32H743BIT6 is a high-performance microcontroller from STMicroelectronics, built on the ARM Cortex-M7 32-bit with DP-FPU and DSP operating at up to 480 MHz. It integrates 2 MB (dual bank, ECC, read-while-write) of Flash memory and 1 MB (192KB TCM + 864KB user + 4KB backup) of SRAM, providing ample resources for complex embedded applications. The device features 3.6 MSPS, up to 36 channels, along with comprehensive communication interfaces including 4x, 4x USART + 4x UART + 1x LPUART, and 6x SPI + 3x half-duplex I2S. Additional connectivity includes CAN interface, Ethernet MAC, USB OTG. Housed in a LQFP-208 package with Up to 168 I/O pins, the STM32H743BIT6 operates from 1.62V to 3.6V supply voltage across the -40°C to +85°C industrial temperature range. It is ideal for a wide range of applications including industrial control, IoT devices, motor drives, consumer electronics, and automotive systems (where applicable).

The STM32H743BIT6 operates on the ARM Cortex-M7 32-bit with DP-FPU and DSP architecture with an advanced pipeline design. The core runs at up to 480 MHz with a nested vectored interrupt controller (NVIC) for low-latency interrupt handling. The multi-layer bus matrix connects the core, DMA controllers, and peripherals to memory resources, enabling parallel data transfers without CPU intervention. The DMA controller handles data transfers between peripherals and memory autonomously, freeing the CPU for application processing. The analog subsystem includes high-speed ADC(s) with multiple channels and DMA support. Power management is achieved through multiple low-power modes including Sleep, Stop, and Standby, with progressive power reduction. The integrated voltage regulator operates in various modes depending on system state. The VBAT pin maintains RTC operation and backup register contents during main power loss. The device supports multiple boot options including user Flash, system memory bootloader, and embedded SRAM, depending on BOOT pin configuration.

Pin Group Type Function
VDD (multiple) Power Main power supply
VSS (multiple) Ground Ground
VDDA Power Analog power supply for ADC/DAC
VSSA Ground Analog ground
VBAT Power Battery backup for RTC and backup registers
NRST I/O Active-low reset
PA13 I/O SWDIO (Serial Wire Debug Data I/O)
PA14 I/O SWCLK (Serial Wire Debug Clock)
PA9/PA10 I/O USART1_TX/RX / I2C1 pins
PA2/PA3 I/O USART2_TX/RX / ADC channels
PA5/PA6/PA7 I/O SPI1_SCK/MISO/MOSI / ADC channels
PA0 I/O ADC_IN0 / WKUP1 / TIM2_CH1
PC13 I/O GPIO / TAMPER / RTC_OUT
PC14/PC15 I/O LSE oscillator pins / GPIO
PH0/PH1 I/O HSE oscillator pins
Total I/O – Up to 168 I/O pins, most 5V tolerant
  • Industrial automation and control systems
  • IoT gateways and edge computing devices
  • Motor control and drive systems
  • Human-machine interface (HMI) and touch panels
  • Consumer electronics and smart accessories
  • Medical devices and instrumentation
  • Building automation and smart home
  • Communication equipment and networking
  • Automotive electronics (where applicable)
  • Battery-powered and portable devices
Model Manufacturer Key Difference
STM32H743IIT6 STMicroelectronics LQFP-176 package, same core/Flash/RAM, fewer I/O
STM32H743VIT6 STMicroelectronics LQFP-100 package, 2MB Flash, 1MB SRAM, limited peripherals
STM32H753BIT6 STMicroelectronics Same specs, adds crypto/hash (AES, HMAC, SHA-2)
STM32H723ZGT6 STMicroelectronics 550MHz Cortex-M7, 1MB Flash, LQFP-144, lower cost
STM32F777BIT6 STMicroelectronics 216MHz Cortex-M7, 2MB Flash, crypto/hash, lower performance
