STM32H745ZIT6

Dual-core ARM Cortex-M7@480MHz + M4@240MHz MCU with 2MB dual-bank Flash, 1MB SRAM, LCD-TFT, JPEG, Ethernet, FDCAN, SMPS in LQFP-144.

10853

Effective Inventory
Go to Inquiry

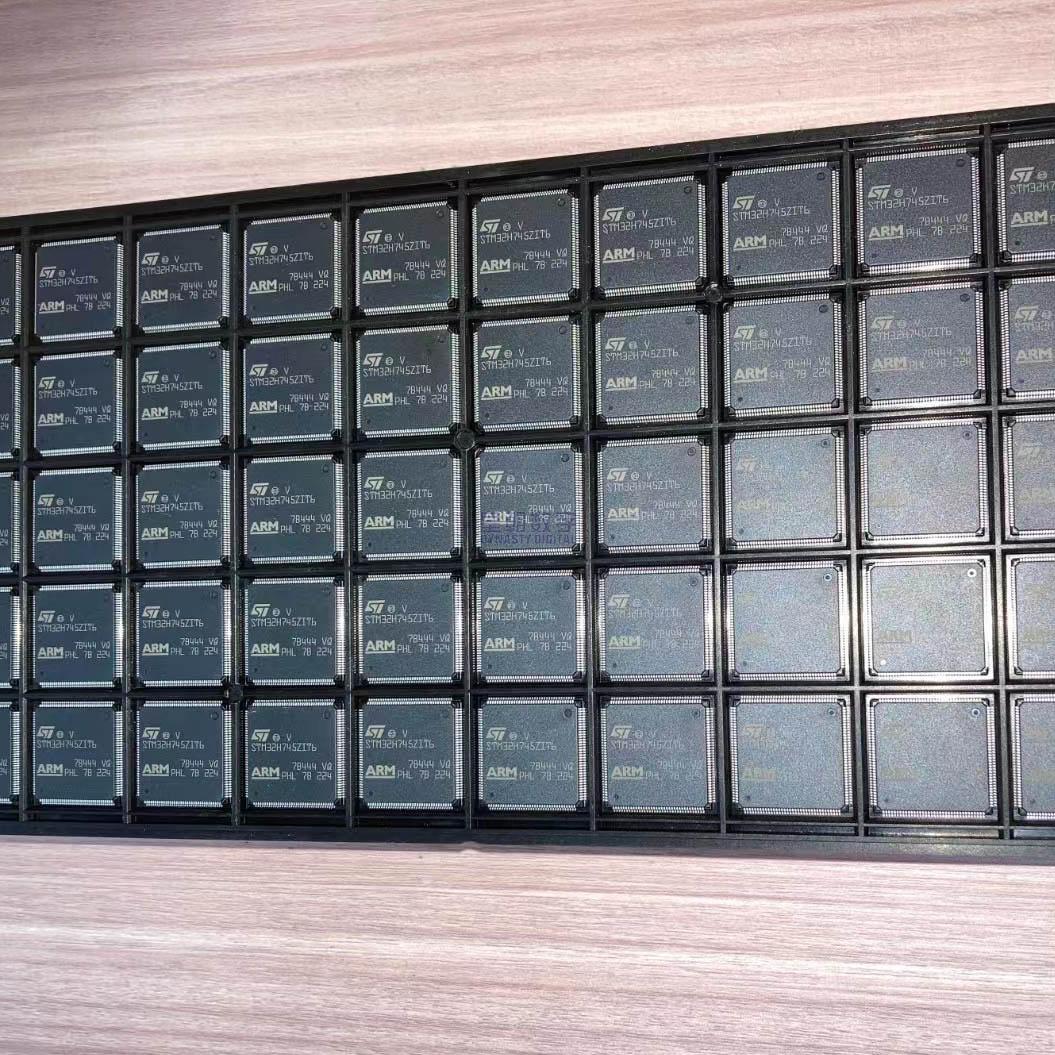

Image for reference only

Manufacturer Part：

STM32H745ZIT6

Package：

LQFP-144

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L053C8T6

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

STM32F745VET6

Description

Product Overview

The STM32H745ZIT6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring Dual-core: ARM Cortex-M7 (480MHz) + Cortex-M4 (240MHz) with DP-FPU. The device integrates 2 MB (dual bank, read-while-write, ECC) of Flash memory and 1 MB (192KB TCM + 864KB user SRAM + 4KB backup) of SRAM, providing extensive memory resources for demanding embedded applications. This dual-core architecture combines the high-performance Cortex-M7 for complex applications with a Cortex-M4 for real-time peripheral handling, enabling efficient task partitioning. Housed in a LQFP-144 package with Up to 168 (up to 164 5V-tolerant, up to 133 MHz fast I/Os) I/O pins, this MCU offers an exceptional combination of processing power, peripheral integration, and power efficiency. The device operates from 1.62V to 3.6V and supports industrial temperature range of -40°C to +85°C.

Key Specifications

Core Dual-core: ARM Cortex-M7 (480MHz) + Cortex-M4 (240MHz) with DP-FPU
Maximum Frequency 480 MHz (M7) / 240 MHz (M4)
Flash Memory 2 MB (dual bank, read-while-write, ECC)
SRAM 1 MB (192KB TCM + 864KB user SRAM + 4KB backup)
Package LQFP-144
Operating Voltage 1.62V to 3.6V
Operating Temperature -40°C to +85°C
I/O Pins Up to 168 (up to 164 5V-tolerant, up to 133 MHz fast I/Os)
3x 12-bit ADC up to 36 channels, up to 3.6 MSPS, 16-bit max with oversampling
DAC 2x 12-bit DAC (1 MHz)
DMA 4 DMA controllers: MDMA + 2x dual-port DMA + basic DMA
Timers Up to 22+ timers incl. HRTIM (2.1ns), 2x 32-bit, 12x 16-bit, 5x LPTIM, 2x WDT
USART/UART 4x USART + 4x UART + 1x LPUART (up to 12.5 Mbit/s)
SPI/I2S 6x SPI (up to 150 MHz), 3 with muxed full-duplex I2S
I2C 4x I2C Fast-mode Plus (1 Mbit/s)
CAN 2x CAN FD (1 with TT-CAN time-triggered)
Ethernet 10/100 Ethernet MAC with DMA and IEEE 1588 PTP
USB Dual USB OTG: HS/FS with ULPI + FS with on-chip PHY
Other Peripherals LCD-TFT + Chrom-ART + JPEG Codec + 4x SAI + SPDIFRX + 2x SDMMC + DCMI + Quad-SPI (133MHz) + FMC + DFSDM (8ch/4filt) + 2x Op-Amp + 2x Comp + RNG + SMPS + 3 power domains
Performance 1027 DMIPS (M7) + 300 DMIPS (M4)

Features

  • High-performance ARM core with FPU and DSP: 1027 DMIPS (M7) + 300 DMIPS (M4) performance
  • Dual-core architecture for application/real-time task partitioning
  • Advanced memory architecture with TCM for deterministic real-time performance
  • Rich analog subsystem: 3x 12-bit ADC, 2x 12-bit DAC (1 MHz)
  • Multiple DMA controllers for autonomous data transfers
  • Advanced timers including motor control PWM, high-resolution timer, low-power timers
  • Extensive communication: 4x I2C Fast-mode Plus (1 Mbit/s), 4x USART + 4x UART + 1x LPUART, 6x SPI
  • SMPS step-down converter for high power efficiency
  • Advanced graphics: LCD-TFT + Chrom-ART + JPEG hardware codec
  • Industrial temperature range, RoHS compliant, ECOPACK2 packaging

Applications

  • High-performance industrial control and PLC with multi-tasking
  • Dual-core real-time systems: M7 for application, M4 for real-time I/O
  • Advanced motor control and high-precision servo drives
  • High-end HMI and embedded GUI platforms with graphics acceleration
  • Medical devices with display and signal processing
  • IoT edge gateways with multiple connectivity protocols
  • Automotive ADAS and body electronics controllers
  • Professional audio processing and DSP equipment
  • Industrial networking and protocol converters
  • Edge AI inference with camera and sensor fusion

The STM32H745ZIT6 is a 1027 DMIPS (M7) + 300 DMIPS (M4) performance microcontroller from STMicroelectronics, built on the Dual-core: ARM Cortex-M7 (480MHz) + Cortex-M4 (240MHz) with DP-FPU. The innovative dual-core architecture pairs a high-performance Cortex-M7 core for complex application processing with a Cortex-M4 core dedicated to real-time peripheral management, enabling asymmetric multiprocessing for maximum efficiency. It integrates 2 MB (dual bank, read-while-write, ECC) of Flash memory and 1 MB (192KB TCM + 864KB user SRAM + 4KB backup) of SRAM, providing extensive resources for sophisticated embedded applications. The analog subsystem includes 3x 12-bit ADC offering 36 channels with high sampling rates, complemented by 2x 12-bit DAC (1 MHz) DAC outputs. Communication interfaces are comprehensive: 4x I2C Fast-mode Plus (1 Mbit/s), 4x USART + 4x UART + 1x LPUART, and 6x SPI. Additional connectivity includes 2x CAN FD (1 with TT-CAN time-triggered), 10/100 Ethernet MAC with DMA and IEEE 1588 PTP, Dual USB OTG: HS/FS with ULPI + FS with on-chip PHY, and specialized peripherals for graphics, audio, and storage. Housed in a LQFP-144 package with up to 168 I/O pins, the STM32H745ZIT6 operates from 1.62V to 3.6V across the -40°C to +85°C industrial temperature range. It is ideally suited for high-performance embedded systems requiring advanced processing, rich connectivity, and efficient power management.

The STM32H745ZIT6 features a dual-core architecture with ARM Cortex-M7 and Cortex-M4 cores operating at different performance levels. The Cortex-M7 core handles complex application processing with its 6-stage superscalar pipeline, double-precision FPU, L1 cache, and ART Accelerator for 0-wait state Flash execution. The Cortex-M4 core with FPU manages real-time peripherals and communication interfaces, operating at a lower frequency for power efficiency. Inter-core communication is handled through hardware semaphores and shared memory regions. The multi-layer AXI and AHB bus matrices connect both cores, DMA controllers, and peripherals to memory resources, enabling high-bandwidth parallel access. The smart power domain architecture (D1, D2, D3 domains) allows independent power gating for maximum efficiency. The integrated SMPS step-down converter provides high-efficiency power delivery to the core, significantly reducing power consumption in Run mode. Multiple low-power modes (Sleep, Stop, Standby, VBAT) offer progressive power reduction levels. The VBAT domain maintains RTC operation and backup register contents during main power loss, with battery charging capability.

Pin Group Type Function
VDD (multiple) Power Main power supply
VSS (multiple) Ground Ground
VDDA Power Analog power supply for ADC/DAC
VSSA Ground Analog ground
VBAT Power Battery backup for RTC and backup registers
VSW / FB Power SMPS step-down converter (external inductor)
NRST I/O Active-low reset
PA13 / PA14 I/O SWDIO / SWCLK (Serial Wire Debug)
PA9 / PA10 I/O USART1_TX/RX / I2C pins / TIM channels
PA2 / PA3 I/O USART2_TX/RX / ADC channels / TIM channels
PA5 / PA6 / PA7 I/O SPI1_SCK/MISO/MOSI / ADC channels
PB6 / PB7 I/O I2C1_SCL/SDA / USART1_TX/RX
PB10 / PB11 I/O I2C2_SCL/SDA / USART3 / SPI2
PC13 I/O GPIO / TAMPER / RTC_OUT
PC14 / PC15 I/O LSE oscillator (32.768kHz) / GPIO
PH0 / PH1 (or PF0/PF1) I/O HSE oscillator pins
Total I/O – Up to 168 I/O pins
  • High-performance industrial control and PLC with multi-tasking
  • Dual-core real-time systems: M7 for application, M4 for real-time I/O
  • Advanced motor control and high-precision servo drives
  • High-end HMI and embedded GUI platforms with graphics acceleration
  • Medical devices with display and signal processing
  • IoT edge gateways with multiple connectivity protocols
  • Automotive ADAS and body electronics controllers
  • Professional audio processing and DSP equipment
  • Industrial networking and protocol converters
  • Edge AI inference with camera and sensor fusion
Model Manufacturer Key Difference
STM32H745IIT6 STMicroelectronics LQFP-176 package, same dual-core specs, more I/O
STM32H745BIT6 STMicroelectronics LQFP-208 package, maximum I/O and peripherals
STM32H755ZIT6 STMicroelectronics Same dual-core, adds crypto/hash acceleration
STM32H743ZIT6 STMicroelectronics Single-core M7@480MHz, similar package, lower cost
STM32H747ZIT6 STMicroelectronics Dual-core M7@480+240MHz, 2MB Flash, graphics enhanced
Recommend Parts

STM32L053C8T6

Ultra-low-power ARM Cortex-M0+ MCU at 32MHz with 64KB Flash, 8KB SRAM + 2KB EEPROM, USB FS, 2x DAC, LCD, capacitive touch in LQFP-48.

Brand:

Package:

LQFP-48

In stock:

3655pcs

Cargo cycle: 3~7 Days
The minimum order is 1

Go to Inquiry

STM32L052R8T6

Ultra-low-power ARM Cortex-M0+ MCU at 32MHz with 64KB Flash, 8KB SRAM + 2KB EEPROM, 2x DAC, LCD controller, capacitive touch, LPUART in LQFP-64.

Brand:

Package:

LQFP-64

In stock:

8117pcs
