STM32L053C8T6

Ultra-low-power ARM Cortex-M0+ MCU at 32MHz with 64KB Flash, 8KB SRAM + 2KB EEPROM, USB FS, 2x DAC, LCD, capacitive touch in LQFP-48.

3655

Effective Inventory
Go to Inquiry

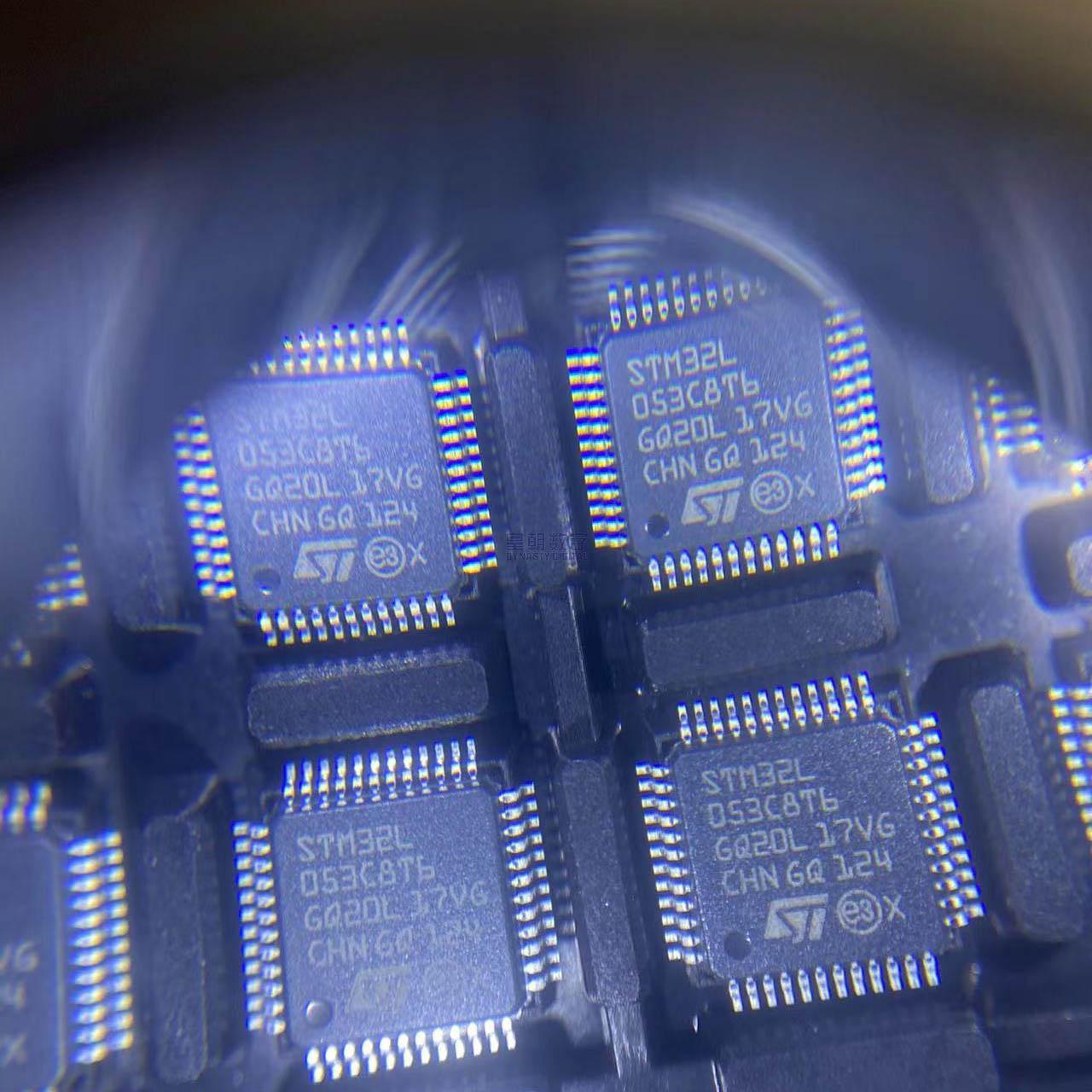

Image for reference only

Manufacturer Part：

STM32L053C8T6

Package：

LQFP-48

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

STM32L052R8T6

STM32L010C6T6

STM32H7A3ZIT6

STM32H745ZIT6

STM32H743BIT6

STM32G030F6P6TR

STM32F767IIT6

STM32F745VET6

Description

Product Overview

The STM32L053C8T6 is a high-performance 32-bit microcontroller from STMicroelectronics, featuring ARM Cortex-M0+ 32-bit RISC (ultra-low-power). The device integrates 64 KB of Flash memory and 8 KB (with ECC) + 2KB EEPROM of SRAM, providing extensive memory resources for demanding embedded applications. Housed in a LQFP-48 package with 37 (up to 36 fast I/Os) I/O pins, this MCU offers an exceptional combination of processing power, peripheral integration, and power efficiency. The device operates from 1.65V to 3.6V and supports industrial temperature range of -40°C to +125°C.

Key Specifications

Core ARM Cortex-M0+ 32-bit RISC (ultra-low-power)
Maximum Frequency 32 MHz
Flash Memory 64 KB
SRAM 8 KB (with ECC) + 2KB EEPROM
Package LQFP-48
Operating Voltage 1.65V to 3.6V
Operating Temperature -40°C to +125°C
I/O Pins 37 (up to 36 fast I/Os)
1x 12-bit ADC up to 16 channels, hardware oversampling, 16-bit max resolution
DAC 2x 12-bit with output buffer, DMA capable
DMA 7-channel DMA controller with flexible mapping
Timers Up to 11: 3x 16-bit GP, 2x 16-bit low-power, 1x SysTick, 2x WDT, 1x RTC, 2x LPTIM
USART/UART 2x USART + 1x LPUART (LIN, IrDA, auto baud rate, ISO 7816)
SPI/I2S 2x SPI (up to 16 Mbit/s)
I2C 2x I2C (1x FM+ 1Mbit/s, 1x standard/smbus)
USB USB 2.0 Full Speed Device/Host/OTG with on-chip PHY (crystal-less)
Other Peripherals 2KB EEPROM + CRC + True RNG + RTC calendar + Capacitive sensing (24 ch) + LCD controller (8×20 or 4×24) + 2x Comparators + 2x Op-Amp + temperature sensor
Performance ~32 DMIPS (Cortex-M0+)

Features

  • High-performance ARM core with FPU and DSP: ~32 DMIPS (Cortex-M0+) performance
  • Efficient memory architecture with low-power design
  • Rich analog subsystem: 1x 12-bit ADC, 2x 12-bit with output buffer, DMA capable
  • Multiple DMA controllers for autonomous data transfers
  • Advanced timers including motor control PWM, high-resolution timer, low-power timers
  • Extensive communication: 2x I2C (1x FM+ 1Mbit/s, 1x standard/smbus), 2x USART + 1x LPUART, 2x SPI
  • Ultra-low-power modes for battery operation
  • LCD controller and capacitive sensing for user interfaces
  • Industrial temperature range, RoHS compliant, ECOPACK2 packaging

Applications

  • USB-connected low-power sensors and data loggers
  • Wearable devices with USB charging
  • IoT nodes with USB connectivity
  • Smart accessories and USB peripherals
  • Portable medical devices with USB interface
  • Industrial USB dongles and adapters
  • Consumer electronics with USB FS
  • Battery-powered devices requiring USB OTG
  • Home automation USB gateway modules
  • Educational and prototyping platforms

The STM32L053C8T6 is a ~32 DMIPS (Cortex-M0+) performance microcontroller from STMicroelectronics, built on the ARM Cortex-M0+ 32-bit RISC (ultra-low-power). It integrates 64 KB of Flash memory and 8 KB (with ECC) + 2KB EEPROM of SRAM, providing extensive resources for sophisticated embedded applications. The analog subsystem includes 1x 12-bit ADC offering 16 channels with high sampling rates, complemented by 2x 12-bit with output buffer, DMA capable DAC outputs. Communication interfaces are comprehensive: 2x I2C (1x FM+ 1Mbit/s, 1x standard/smbus), 2x USART + 1x LPUART, and 2x SPI. Additional connectivity includes USB 2.0 Full Speed Device/Host/OTG with on-chip PHY (crystal-less), and specialized peripherals for graphics, audio, and storage. Housed in a LQFP-48 package with up to 37 I/O pins, the STM32L053C8T6 operates from 1.65V to 3.6V across the -40°C to +125°C industrial temperature range. It is ideally suited for high-performance embedded systems requiring advanced processing, rich connectivity, and efficient power management.

The STM32L053C8T6 operates on the ARM Cortex-M0+ 32-bit RISC architecture with an efficient 2-stage pipeline, optimized for ultra-low-power operation. The core runs at up to 32 MHz with a nested vectored interrupt controller (NVIC) for fast interrupt response. The ultra-low-power design features multiple power-saving modes: Sleep mode halts the CPU while keeping peripherals and SRAM active; Stop mode further reduces power with most clocks stopped while retaining full SRAM and register contents; Standby mode achieves the lowest power with only the RTC and backup registers operational. The device can achieve sub-microamp current consumption in the lowest power modes. The 7-channel DMA controller operates independently, transferring data between peripherals and memory without CPU intervention. The 12-bit ADC features hardware oversampling for up to 16-bit effective resolution, useful for precision measurement applications. The internal voltage regulator supports various power modes. The LPUART can operate in Stop mode, enabling wake-on-receive functionality for battery-powered communication nodes. The device supports boot from user Flash, system memory bootloader, or SRAM.

Pin Group Type Function
VDD (multiple) Power Main power supply
VSS (multiple) Ground Ground
VDDA Power Analog power supply for ADC/DAC
VSSA Ground Analog ground
VBAT Power Battery backup for RTC and backup registers
NRST I/O Active-low reset
PA13 / PA14 I/O SWDIO / SWCLK (Serial Wire Debug)
PA9 / PA10 I/O USART1_TX/RX / I2C pins / TIM channels
PA2 / PA3 I/O USART2_TX/RX / ADC channels / TIM channels
PA5 / PA6 / PA7 I/O SPI1_SCK/MISO/MOSI / ADC channels
PB6 / PB7 I/O I2C1_SCL/SDA / USART1_TX/RX
PB10 / PB11 I/O I2C2_SCL/SDA / USART3 / SPI2
PC13 I/O GPIO / TAMPER / RTC_OUT
PC14 / PC15 I/O LSE oscillator (32.768kHz) / GPIO
PH0 / PH1 (or PF0/PF1) I/O HSE oscillator pins
Total I/O – Up to 37 I/O pins
  • USB-connected low-power sensors and data loggers
  • Wearable devices with USB charging
  • IoT nodes with USB connectivity
  • Smart accessories and USB peripherals
  • Portable medical devices with USB interface
  • Industrial USB dongles and adapters
  • Consumer electronics with USB FS
  • Battery-powered devices requiring USB OTG
  • Home automation USB gateway modules
  • Educational and prototyping platforms
Model Manufacturer Key Difference
STM32L052C8T6 STMicroelectronics Same specs without USB, LQFP-48 package
STM32L063C8T6 STMicroelectronics Same specs + USB + AES crypto, LQFP-48
STM32L073CBT6 STMicroelectronics 128KB Flash, 20KB SRAM, USB, more peripherals
STM32F072C8T6 STMicroelectronics 48MHz M0, 64KB Flash, USB, mainstream with USB
STM32G071C8U6 STMicroelectronics 64MHz M0+, 64KB Flash, USB-C PD, newer generation
