STM32L071CZT6

Ultra-low-power ARM Cortex-M0+ MCU, 32MHz, 192KB Flash, 20KB RAM, 6KB EEPROM, LQFP48

8420

Effective Inventory
Go to Inquiry

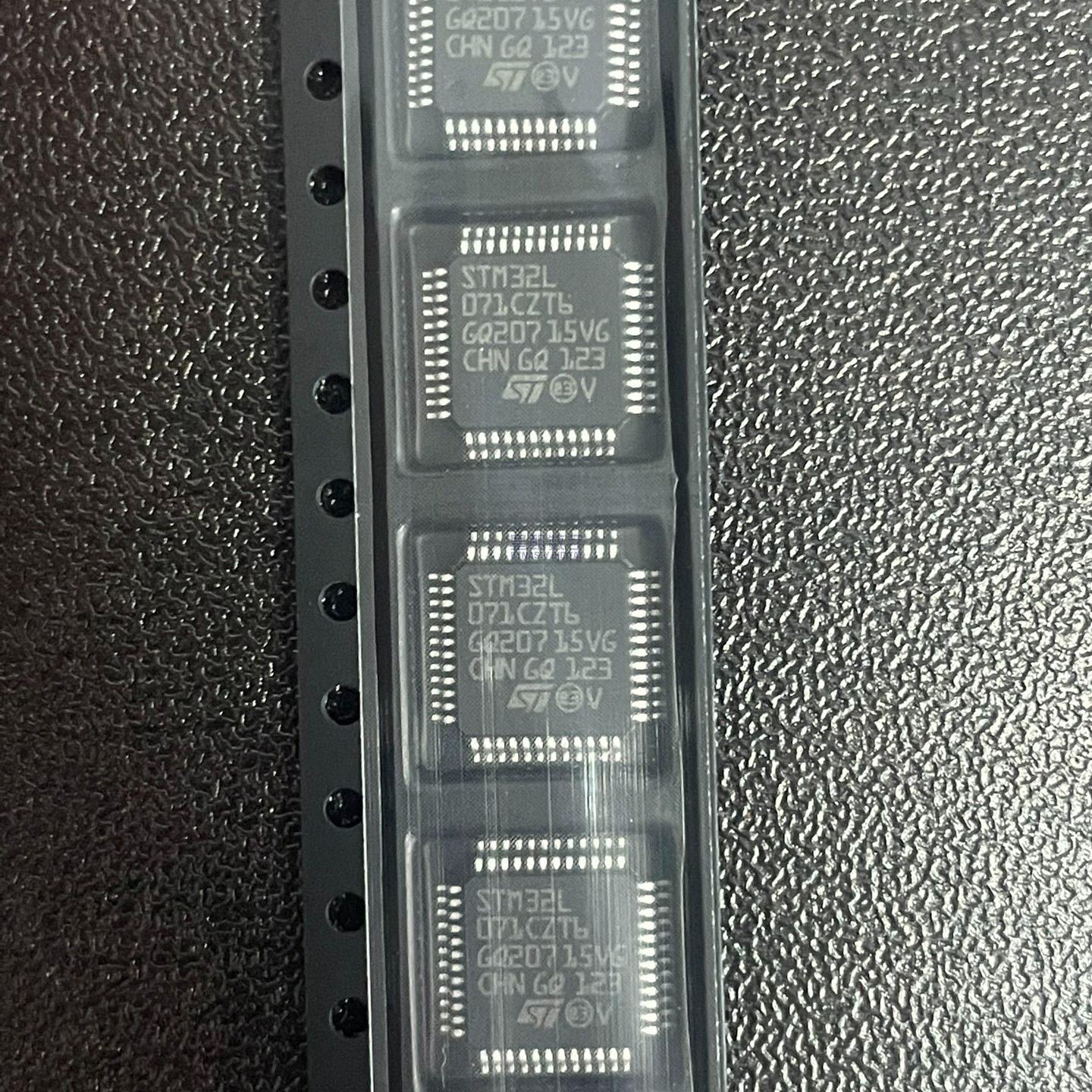

Image for reference only

Manufacturer Part：

STM32L071CZT6

Package：

LQFP-48 (7x7x1.4 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

UAF42AU

TMS320F28062PZT

TMS320DM368ZCE

TMS320C6657CZHA

STR710FZ2T6

STM8S207C8T6

STM8S105K4T6C

STM8S105C6T6C

Description

Product Overview

The STM32L071CZT6 is an ultra-low-power ARM Cortex-M0+ microcontroller from STMicroelectronics, part of the STM32L0 access line family. Operating at up to 32 MHz, it features 192 Kbytes of Flash memory, 20 Kbytes of SRAM, and 6 Kbytes of data EEPROM in an LQFP48 package. This device is optimized for battery-powered and energy-harvesting applications with its comprehensive set of power-saving modes and flexible clocking architecture.

Key Specifications

Core ARM Cortex-M0+ 32-bit
Maximum Frequency 32 MHz
Flash Memory 192 KB (with ECC)
RAM 20 KB
EEPROM 6 KB
Supply Voltage 1.65 V to 3.6 V
Operating Temperature -40°C to +85°C
GPIO Count 37 (up to 40)
ADC 12-bit, 13 channels, 1.14 Msps
Package LQFP-48 (7×7 mm)

Features

  • Ultra-low-power platform: 0.29 uA Standby mode, 0.43 uA Stop mode
  • 93 uA/MHz in Run mode with 5 us wakeup time
  • ARM Cortex-M0+ core with MPU, 0.95 DMIPS/MHz
  • 12-bit ADC 1.14 Msps with hardware oversampling
  • 2x ultra-low-power comparators
  • 7-channel DMA controller
  • 10x communication interfaces: 4x USART, 1x LPUART, 3x I2C, 2x SPI
  • 11x timers including LPTIM, RTC, watchdogs
  • CRC calculation unit, 96-bit unique ID
  • Brown-out reset, POR/PDR, programmable voltage detector

Applications

  • Smart meters (gas/water/heat)
  • Healthcare and fitness devices
  • Wireless sensor networks
  • IoT and battery-powered devices
  • Industrial control and monitoring
  • Wearable electronics

The STM32L071CZT6 is an ultra-low-power microcontroller based on the high-performance ARM Cortex-M0+ 32-bit RISC core operating at a 32 MHz frequency. It incorporates a memory protection unit (MPU), high-speed embedded memories including 192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM, plus an extensive range of enhanced I/Os and peripherals. The device provides high power efficiency achieved through a large choice of internal and external clock sources, internal voltage adaptation and several low-power modes. It offers a 12-bit ADC with hardware oversampling, two ultra-low-power comparators, multiple timers, and rich communication interfaces including I2C, SPI, USART, and LPUART.

The STM32L071CZT6 operates on the ARM Cortex-M0+ core with a 3-stage pipeline, delivering 0.95 DMIPS/MHz. The ultra-low-power architecture features multiple power modes: Run mode at 93 uA/MHz, Stop mode at 0.43 uA with 16 wakeup lines, and Standby mode at 0.29 uA. The internal voltage regulator dynamically adjusts based on performance requirements. Clock sources include a 16 MHz factory-trimmed RC, 37 kHz low-power RC, and external crystal oscillators. The device uses a 7-channel DMA controller to offload data transfer from the CPU, supporting ADC, SPI, I2C, USART, and timer peripherals for efficient low-power operation.

Pin Name Type Description
PA0-PA15 I/O Port A – 16 GPIO pins with multiple alternate functions
PB0-PB11 I/O Port B – 12 GPIO pins with 5V tolerance
PC0-PC15 I/O Port C – 16 GPIO pins including wakeup capability
NRST I Reset pin – active low
VDDA P Analog power supply (1.65V to 3.6V)
VSSA P Analog ground
VDD P Digital power supply
VSS P Digital ground
BOOT0 I Boot mode selection
OSC_IN/OSC_OUT I/O High speed external crystal oscillator
SWDIO/SWCLK I/O Serial wire debug interface
  • Smart meters (gas, water, heat) and industrial sensors
  • Healthcare and fitness equipment
  • Remote control and user interfaces
  • PC peripherals, gaming, and GPS equipment
  • Alarm systems, wired and wireless sensors
  • Battery-powered IoT edge devices
  • Energy harvesting applications
  • Wearable technology
Model Flash Package Description
STM32L071CBT6 128KB LQFP48 Same family, smaller Flash memory
STM32L071KZT6 192KB LQFP32 Same memory, smaller package
STM32L071RZT6 192KB LQFP64 Same memory, more I/O pins
STM32L072CZT6 192KB LQFP48 USB crystal-less, LCD controller
STM32L051C8T6 64KB LQFP48 Lower cost variant
