STM32L452RCT6

Ultra-low-power ARM Cortex-M4 MCU with FPU, 80MHz, 256KB Flash, 160KB SRAM, USB FS, LQFP64

10650

Effective Inventory
Go to Inquiry

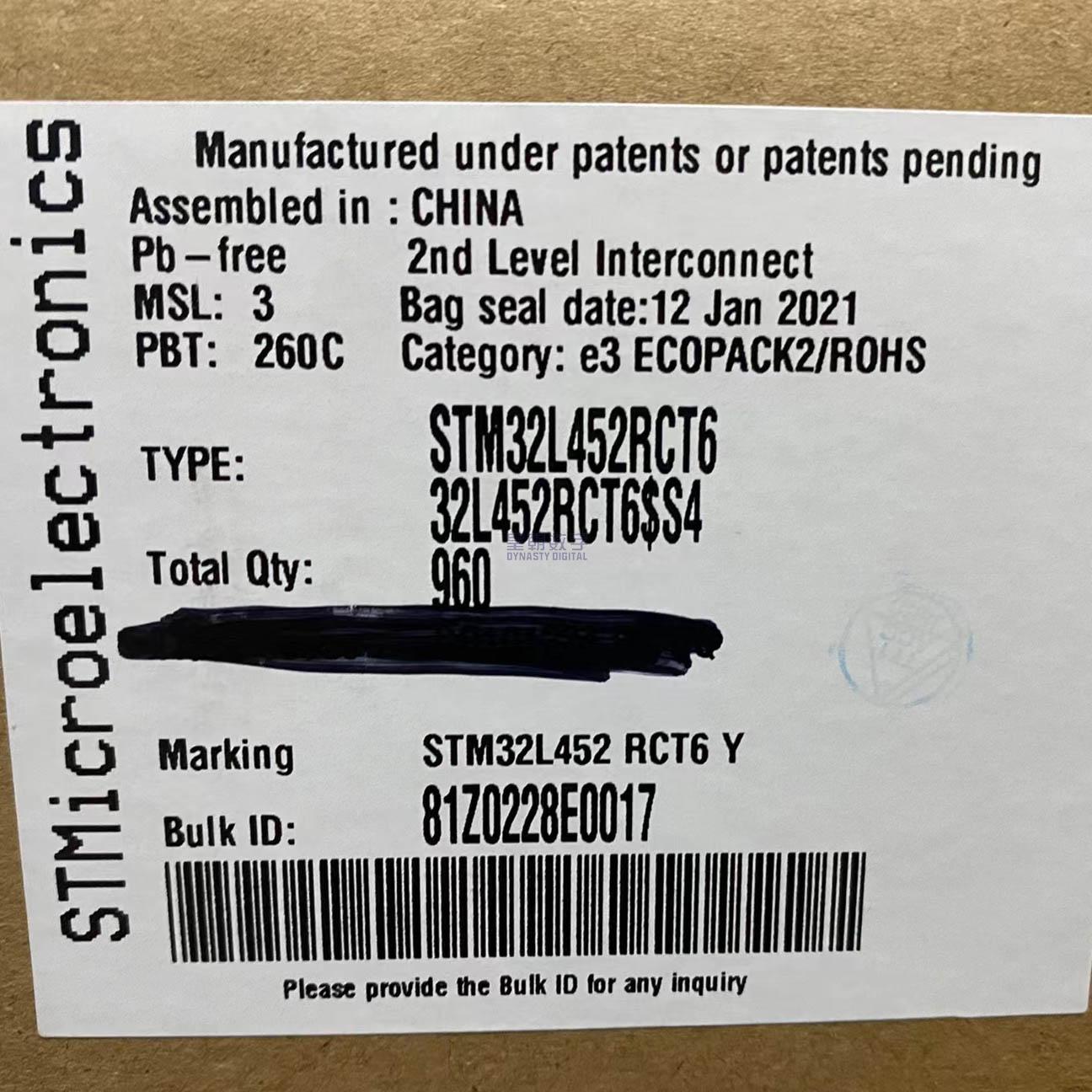

Image for reference only

Manufacturer Part：

STM32L452RCT6

Package：

LQFP-64 (10x10x1.4 mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

UAF42AU

TMS320F28062PZT

TMS320DM368ZCE

TMS320C6657CZHA

STR710FZ2T6

STM8S207C8T6

STM8S105K4T6C

STM8S105C6T6C

Description

Product Overview

The STM32L452RCT6 is an ultra-low-power microcontroller featuring an ARM Cortex-M4 core with FPU and DSP instructions, operating at up to 80 MHz. With 256 KB of Flash memory and 160 KB of SRAM in an LQFP64 package, it delivers 100 DMIPS performance while maintaining exceptional energy efficiency through ST’s FlexPowerControl technology. The device supports both internal LDO and external SMPS power modes, achieving as low as 36 uA/MHz in SMPS mode. It integrates a comprehensive set of analog peripherals, 21 capacitive touch channels, and 17 communication interfaces including USB FS, CAN, and SAI audio interface.

Key Specifications

Core ARM Cortex-M4 32-bit with FPU
Maximum Frequency 80 MHz
Flash Memory 256 KB
SRAM 160 KB (32 KB with parity)
Supply Voltage 1.71 V to 3.6 V
Operating Temperature -40°C to +85°C
GPIO Count 52 (most 5V-tolerant)
ADC 12-bit, 5 Msps, up to 16-bit with oversampling
DAC 1x 12-bit
Package LQFP-64 (10×10 mm)

Features

  • FlexPowerControl: 22 nA Shutdown, 106 nA Standby, 2.05 uA Stop 2
  • 36 uA/MHz SMPS mode, 84 uA/MHz LDO mode
  • ART Accelerator for 0-wait-state Flash execution
  • 12-bit ADC 5 Msps with hardware oversampling
  • 1x 12-bit DAC, 1x op-amp with PGA, 2x comparators
  • 21 capacitive sensing channels (touchkey, linear, rotary)
  • 17x communication interfaces: USB FS crystal-less, CAN, SAI, 4x I2C, 3x SPI, 3x USART, LPUART, SDMMC
  • 12x timers including motor-control timer, low-power timers
  • True random number generator, CRC unit, 96-bit unique ID
  • Memory protection: readout protection, write protection, Firewall

Applications

  • Wearable devices and health/fitness trackers
  • Smart meters and energy management systems
  • Industrial sensor nodes and automation
  • Portable medical and healthcare equipment
  • Audio processing and voice user interfaces
  • Motor control and power management
  • USB and CAN connected devices
  • Low-power IoT and edge computing

The STM32L452RCT6 is an ultra-low-power microcontroller based on the high-performance ARM Cortex-M4 32-bit RISC core with FPU, operating at up to 80 MHz. It features 256 Kbytes of Flash memory and 160 Kbytes of SRAM in an LQFP64 package. The device includes a rich set of analog peripherals including a 12-bit ADC (5 Msps), two comparators, one operational amplifier, and one DAC channel. It offers 17 communication interfaces including USB full-speed crystal-less, CAN, SAI, SDMMC, I2C, SPI, and USART. With FlexPowerControl technology and support for external SMPS, it achieves exceptional energy efficiency for battery-powered applications.

The STM32L452RCT6 features the ARM Cortex-M4 core with FPU and DSP instructions, delivering 100 DMIPS at 80 MHz with ART Accelerator for 0-wait-state Flash execution. The FlexPowerControl architecture offers multiple low-power modes: Shutdown at 22 nA, Standby at 106 nA, Stop 2 at 2.05 uA, and Run at 84 uA/MHz (LDO mode) or 36 uA/MHz (SMPS mode). Batch Acquisition Mode (BAM) enables autonomous data capture while the CPU sleeps. The analog peripherals operate from an independent supply (VDDA), with internal voltage reference options of 2.5V or 2.048V. The 14-channel DMA controller and interconnect matrix enable peripheral-to-peripheral communication without CPU intervention.

Pin Name Type Description
PA0-PA15 I/O Port A – 16 GPIO with wakeup capability
PB0-PB15 I/O Port B – 16 GPIO with 5V tolerance
PC0-PC15 I/O Port C – 16 GPIO with alternate functions
PD0-PD2 I/O Port D – 3 GPIO pins
PH0-PH3 I/O Port H – 4 GPIO pins (oscillator)
NRST I Active-low reset
VDDA/VSSA P Analog power supply/ground
VDD/VSS P Digital power supply/ground
VBAT P Battery backup supply for RTC
VDD12 P External SMPS supply (optional)
BOOT0 I Boot mode select
SWDIO/SWCLK I/O Serial wire debug interface
  • Industrial and home automation sensor nodes
  • Wearable devices and health monitors
  • Smart metering and energy management
  • Portable medical devices
  • Audio and voice processing applications
  • Motor control and industrial drives
  • USB-connected peripherals
  • CAN bus industrial networks
  • Low-power IoT edge computing
Model Flash Package Description
STM32L452RET6 512KB LQFP64 Same package, double Flash
STM32L452CET6 512KB UFQFPN48 Smaller package, 512KB Flash
STM32L452CEU6 256KB UFQFPN48 Same memory, smaller footprint
STM32L432RCT6 256KB LQFP64 Lower cost variant
STM32L476RCT6 256KB LQFP64 More peripherals, LCD driver
