STW33N60M2

N-channel 600V 26A MDmesh M2 MOSFET, 0.108 Ohm RDS(on), 45.5nC Qg, 450mJ EAS, TO-247

2345

Effective Inventory
Go to Inquiry

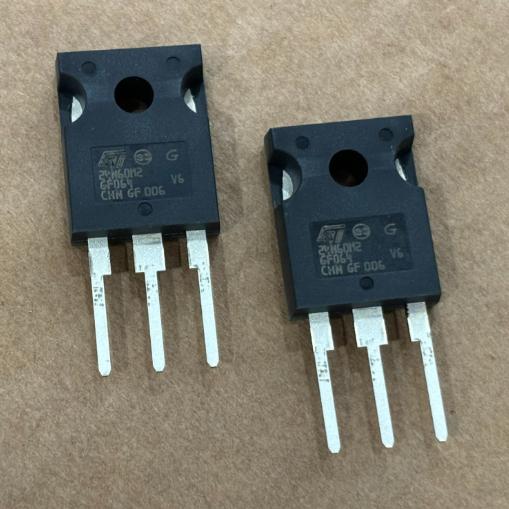

Image for reference only

Manufacturer Part：

STW33N60M2

Package：

TO-247 (15.75 x 20.15mm, through-hole)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The STW33N60M2 is an N-channel 600V power MOSFET from STMicroelectronics using MDmesh M2 technology, offering 0.108 Ohm typical on-resistance and 26A continuous drain current. It features extremely low gate charge (45.5nC), excellent output capacitance profile, 100% avalanche tested, and Zener-protected gate. Packaged in TO-247, it is designed for high-efficiency switching applications including LLC and resonant converters.

Key Specifications

Type N-channel Power MOSFET
Technology MDmesh M2 (strip layout)
VDS (Drain-Source Voltage) 600V
ID (Continuous Drain Current) 26A @ TC=25°C (16A @ TC=100°C)
IDM (Pulsed Drain Current) 104A
RDS(on) (On-Resistance) 0.108 Ohm typ. / 0.125 Ohm max @ VGS=10V
VGS(th) (Gate Threshold) 2V min / 3V typ / 4V max
VGS (Gate-Source Voltage) +-25V
Qg (Total Gate Charge) 45.5 nC typ.
Qgs (Gate-Source Charge) 9.9 nC typ.
Qgd (Gate-Drain Charge) 18.5 nC typ.
Ciss (Input Capacitance) 1781 pF typ.
Coss (Output Capacitance) 85 pF typ.
Crss (Reverse Transfer) 2.5 pF typ.
EAS (Avalanche Energy) 450 mJ
IAR (Avalanche Current) 5A
dv/dt (MOSFET Ruggedness) 50 V/ns
PTOT (Power Dissipation) 190W @ TC=25°C
Rth(j-c) (Thermal Resistance) 0.66 °C/W
Tj (Operating Junction) -55°C to +150°C
Package TO-247
Part Status Active

Features

  • N-channel 600V MDmesh M2 power MOSFET
  • Extremely low on-resistance: 0.108 Ohm typical
  • Very low gate charge: 45.5 nC (Qg)
  • Excellent output capacitance (Coss) profile
  • 100% avalanche tested (EAS = 450mJ)
  • Zener-protected gate oxide
  • High dv/dt ruggedness: 50 V/ns
  • Low thermal resistance: 0.66 °C/W (junction-to-case)
  • 190W power dissipation at TC=25°C
  • TO-247 through-hole package for high-power applications
  • Industrial grade, Ecopack2 compliant

Applications

  • LLC resonant converters
  • Switching power supplies (SMPS)
  • Power factor correction (PFC) circuits
  • Motor drive inverters
  • Solar micro-inverters
  • Induction heating
  • Welding equipment

The STW33N60M2 is an N-channel 600V power MOSFET from STMicroelectronics developed using the proprietary MDmesh M2 technology. Thanks to its strip layout and improved vertical structure, it exhibits extremely low on-resistance (0.108 Ohm typical) and optimized switching characteristics. The device features 45.5nC total gate charge, 100% avalanche testing with 450mJ single-pulse energy, Zener-protected gate, and 50 V/ns dv/dt ruggedness. Packaged in TO-247 with 190W power dissipation and 0.66°C/W thermal resistance, it is designed for the most demanding high-efficiency converters including LLC, PFC, and motor drive applications.

The STW33N60M2 is an N-channel enhancement-mode power MOSFET. When VGS exceeds the threshold voltage (2-4V), the channel conducts between drain and source. Full enhancement occurs at VGS=10V, achieving 0.108 Ohm RDS(on). The MDmesh M2 technology uses a vertical strip layout with multiple parallel cell fingers to reduce on-resistance while maintaining low gate charge. The body diode (intrinsic) conducts from source to drain for reverse current. During inductive turn-off, avalanche breakdown safely absorbs energy up to 450mJ (EAS). The Zener diode structure between gate and source protects the gate oxide from overvoltage transients. The low Qg (45.5nC) and low Crss (2.5pF) enable fast switching transitions, reducing switching losses in high-frequency converters. The Coss profile is optimized for resonant topologies like LLC where Coss energy is recovered.

Pin Name Type Function
1 Gate (G) Input MOSFET gate, controls channel conduction
2 Drain (D) Power Drain terminal, high-voltage power path
3 Source (S) Power/Reference Source terminal, reference for gate drive
Tab Drain (D) Power Drain tab (connected to pin 2 internally), for heatsinking
  • LLC resonant converter primary-side switch in server/telecom power supplies
  • Power factor correction (PFC) boost converter in SMPS
  • Motor drive inverter switches for industrial motors
  • Solar micro-inverter DC-AC conversion stage
  • Induction heating and welding equipment
  • UPS and energy storage system power conversion
Manufacturer Part Number Package Notes
STMicroelectronics STP33N60M2 TO-220 Same die, lower power (35W) TO-220 package
STMicroelectronics STF33N60M2 TO-220FP Same die, insulated TO-220FP package
STMicroelectronics STI33N60M2 I2PAK Same die, I2PAK package
ON Semiconductor FCH33N60N TO-247 600V 33A alternative MOSFET
Infineon IPW60R045CFD7 TO-247 600V SuperJunction alternative
Recommend Parts
