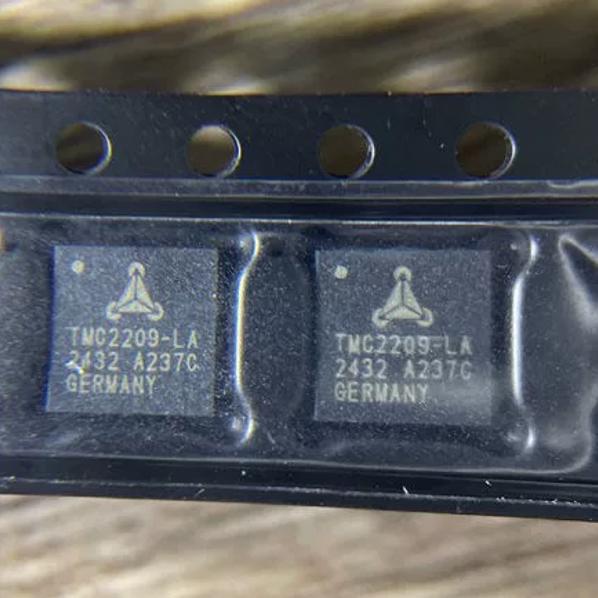

TMC2209-LA

Ultra-silent 2-phase stepper motor driver, 2A RMS/29V, StealthChop2, QFN-28 5x5mm, Trinamic TMC2209

3256

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

TMC2209-LA

Package：

QFN-28 (5x5mm) with exposed thermal pad

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The TMC2209-LA is an ultra-silent stepper motor driver IC from ADI Trinamic, designed for two-phase bipolar stepper motors up to 2A RMS / 2.8A peak current. Featuring the proprietary StealthChop2™ chopper algorithm for noiseless motor operation, this driver delivers industry-leading motion smoothness and energy efficiency. It integrates StallGuard4™ for sensorless stall detection and CoolStep™ for load-adaptive current control, reducing power consumption by up to 75%. With a simple STEP/DIR interface and optional single-wire UART for advanced configuration, the TMC2209-LA is housed in a compact 5x5mm QFN-28 package with an exposed thermal pad for efficient heat dissipation.

Key Specifications

Parameter Value
Manufacturer ADI / Trinamic
Motor Type 2-Phase Bipolar Stepper
Motor Voltage 4.75V to 29V DC
Output Current 2A RMS / 2.8A peak per coil
Microstep Resolution 1 to 256 microsteps (via MicroPlyer)
Control Interface STEP/DIR + Single-Wire UART
RDS(on) (typ) 170mΩ HS + LS @ 25°C
Chopper Modes StealthChop2, SpreadCycle
Stall Detection StallGuard4 (sensorless)
CoolStep Load-adaptive current control
Package QFN-28, 5x5mm with exposed pad
Operating Temperature -40°C to +125°C (TJ)

Features

  • StealthChop2™ — noiseless operation with maximum efficiency and torque
  • SpreadCycle™ — high-dynamic cycle-by-cycle current control
  • MicroPlyer™ — 256 microstep interpolation from lower resolution inputs
  • StallGuard4™ — sensorless load and stall detection for StealthChop
  • CoolStep™ — energy savings up to 75% via load-adaptive current
  • Low RDS(on) integrated power MOSFETs for low heat dissipation
  • Internal sense resistor option — no external sense resistors required
  • Single-wire UART interface with auto-baud and CRC
  • Passive braking, freewheeling, and automatic power-down modes
  • Full protection: short circuit, overtemperature, undervoltage, open load
  • OTP memory for storing configuration parameters
  • Integrated pulse generator for stand-alone velocity mode

Applications

  • 3D printers and additive manufacturing
  • CNC machines and robotics
  • Textile and sewing machines
  • CCTV, security cameras and pan-tilt systems
  • ATM and cash recycling equipment
  • Office automation and POS printers
  • HVAC and building automation
  • Battery-operated equipment

The TMC2209-LA from ADI Trinamic is a highly integrated two-phase stepper motor driver IC that sets the standard for silent, efficient, and precise motor control. At the heart of its performance lies StealthChop2™, a voltage-mode chopper algorithm that delivers absolutely noiseless motor operation at standstill and during slow motion—ideal for noise-sensitive environments. SpreadCycle™ provides high-dynamic cycle-by-cycle current control for applications requiring maximum velocity and acceleration. The MicroPlyer™ microstep interpolator upgrades lower-resolution STEP inputs to smooth 256-microstep operation, significantly improving motion quality without burdening the host controller. StallGuard4™ enables sensorless stall detection and mechanical load sensing, supporting CoolStep™ which dynamically adjusts motor current based on load, cutting energy consumption by up to 75% and reducing heat buildup. The device integrates low RDS(on) power MOSFETs, internal sense resistor options, and comprehensive protection features, all in a compact 5x5mm QFN package.

The TMC2209-LA drives bipolar stepper motors by regulating current in two independent coil windings through integrated H-bridge power MOSFETs. The STEP/DIR interface accepts step pulses and direction signals, with the internal microstep table translating step commands into precise sine/cosine current waveforms for smooth microstepping motion. StealthChop2™ uses a voltage-mode PWM chopper that minimizes current ripple and acoustic noise by optimizing the switching pattern. SpreadCycle™ uses cycle-by-cycle current sensing with mixed decay for high-dynamic performance. StallGuard4™ measures motor back-EMF to detect mechanical load changes without external sensors. CoolStep™ leverages StallGuard data to reduce motor current when the load is light, minimizing power dissipation. The UART interface provides access to internal registers for configuration, diagnostics, and advanced features like the internal velocity mode pulse generator.

Pin Name Description
1-4 OB1, OA1, OA2, OB2 Motor coil A & B outputs (bridge B)
5-6 BRB, BRA Bridge supply pins for coils
7-8 GND Ground (exposed pad must connect to GND)
9 CPN, CPP Charge pump capacitor pins
10 VDD Logic supply voltage (3.3V/5V)
11-12 MS1, MS2 Microstep resolution selection pins
13 STEP Step input (rising edge triggered)
14 DIR Direction input
15 PDN_UART Power-down input / UART I/O
16 DIAG Diagnostic / error output
17-18 VREF_A, VREF_B Current reference analog inputs
19 ENN Enable input (active low)
20 INDEX Index pulse output (microstep zero position)
21-24 OSC, CLK16 Oscillator / clock output
25-28 NC / Reserved No connect / reserved pins
  • 3D printers and desktop manufacturing tools
  • CNC routers, engravers, and pick-and-place machines
  • CCTV camera PTZ (pan-tilt-zoom) positioning systems
  • Textile machinery, sewing and embroidery machines
  • ATM machines, cash recyclers, and vending machines
  • Office automation: printers, scanners, document feeders
  • HVAC damper control and building automation
  • Battery-powered medical devices and lab equipment
Model Manufacturer Current Features Package
TMC2208-LA Trinamic 1.4A RMS StealthChop, UART QFN-28
TMC2225-LA Trinamic 1.5A RMS StealthChop, SPI QFN-28
A4988 Allegro 2A peak Basic microstep QFN-28
DRV8825 TI 2.5A peak 1/32 microstep HTSSOP-28
