TPA5051RSAR

4-ch digital audio lip-sync delay processor, I2C, 85ms/ch, 3.3V, 16-VQFN 4x4mm

11138

Effective Inventory
Go to Inquiry

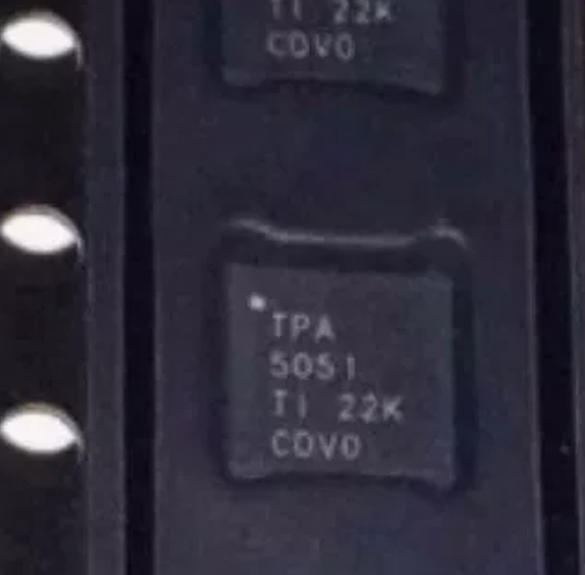

Image for reference only

Manufacturer Part：

TPA5051RSAR

Package：

16-VQFN Exposed Pad (4 x 4mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

5M160ZT100C5N

5G921C

XC9536XL-10VQG44C

XC95144XL-TQG144AW

XC7K160T-2FFG676I

XC7A100T-FGG676

XC6SLX75-2FGG484I

XC6SLX16-2FTG256C

Description

Product Overview

The TPA5051RSAR is a 4-channel digital audio lip-sync delay processor from Texas Instruments with I2C control. It accepts two serial audio inputs, buffers data for a selectable delay period, and outputs the delayed audio on two serial outputs. Each channel supports up to 85 ms delay at fs = 48 kHz with single-sample resolution. The device operates at 3.3V with 5V-tolerant I/O, supports I2S/Left-Justified/Right-Justified formats (16-24 bit), and requires no external crystal. Packaged in a 16-pin VQFN (4x4mm) with exposed pad.

Key Specifications

Manufacturer Texas Instruments
Type 4-Channel Digital Audio Lip-Sync Delay Processor
Channels 4 (2 stereo data ports × 2 channels each)
Interface I2C Control
Digital Audio Format I2S, Left-Justified, Right-Justified (16-24 bit)
Delay Time Up to 85 ms/channel @ fs = 48 kHz
Delay Resolution 1 sample
Sample Rate (fs) 32 kHz to 192 kHz
Bit Clock Rate 32 fs to 64 fs
Supply Voltage 3.0V to 3.6V (3.3V typ)
I/O Tolerance 5V tolerant I/O and I2C pins
External Clock Not required (derived from audio clock)
Cascadable Yes (series connection for longer delay)
Mute Control Yes, per data port
Temperature Range -40°C to +85°C
Package 16-VQFN Exposed Pad (4 x 4mm)
Status Active
RoHS Yes
MSL Level 2 (260°C, 1 year)
Price (1ku) $4.032

Features

  • 4-channel digital audio delay with I2C control
  • Supports I2S, Left-Justified, and Right-Justified formats (16-24 bit)
  • Dual serial input ports with independent clocks
  • Up to 85 ms delay per channel at fs = 48 kHz
  • Single-sample delay resolution
  • Delay memory cleared on power-up or after delay changes — eliminates erroneous output data
  • 3.3V operation with 5V-tolerant I/O and I2C pins
  • Bit clock rates of 32fs to 64fs with fs = 32 kHz–192 kHz
  • No external crystal or oscillator required
  • All internal clocks generated from the audio bit clock
  • Independent clocks for each audio input port
  • Per-port mute control with immediate effect
  • Complete Update register for atomic delay changes
  • Devices can be cascaded in series for extended delay
  • 16-pin VQFN (4 x 4mm) surface-mount package

Applications

  • High Definition (HD) lip-sync delay
  • Flat panel TV lip-sync delay compensation
  • Home theater rear-channel surround effects
  • Wireless speaker front-channel synchronization
  • Audio-video synchronization in video processing pipelines
  • Soundbar and soundbase delay alignment

The TPA5051RSAR is a 4-channel digital audio lip-sync delay processor from Texas Instruments with I2C control, supporting up to 85 ms delay per channel at 48 kHz sample rate in I2S/LJ/RJ formats (16-24 bit), packaged in a 16-VQFN (4x4mm).

The TPA5051 accepts two serial audio data inputs (DATA1 and DATA2), each carrying left and right channels. Audio samples are written into an internal FIFO buffer on the input side and read out after a programmable number of samples, creating a time delay. Delay is set via I2C registers in units of one sample period; a Frame Delay register provides coarse ms-level delay. The Complete Update register ensures atomic application of register changes. Internal clocks are derived from the audio bit clock (BCLK) — no external crystal needed. Mute control takes effect immediately (bypasses Complete Update). Multiple devices can be cascaded for delay beyond 85 ms.

Pin Name Function
1 BCLK1 Bit Clock Input DATA1
2 LRCLK1 Left/Right Clock Input DATA1
3 DIN1 Serial Data Input DATA1
4 DOUT1 Serial Data Output DATA1
5 BCLK2 Bit Clock Input DATA2
6 LRCLK2 Left/Right Clock Input DATA2
7 DIN2 Serial Data Input DATA2
8 DOUT2 Serial Data Output DATA2
9 GND Ground
10 SCL I2C Clock (5V tolerant)
11 SDA I2C Data (5V tolerant)
12 VDD Supply 3.0-3.6V
13-16 NC/EP No Connect / Exposed Pad (GND)
  • HD lip-sync delay in flat panel TVs
  • Home theater rear-channel surround effects
  • Wireless speaker front-channel synchronization
  • AV sync in video processing pipelines
  • Soundbar delay alignment
Part Notes
TPA5051RSAT Same die, small T&R (250 pcs)
DAC38RF TI RF DAC alternative for different use case
