TXS0104EZXUR

4-bit bidirectional voltage-level translator for open-drain/push-pull, auto-direction, 1.65V-3.6V A port, 2.3V-5.5V B port

12350

Effective Inventory
Go to Inquiry

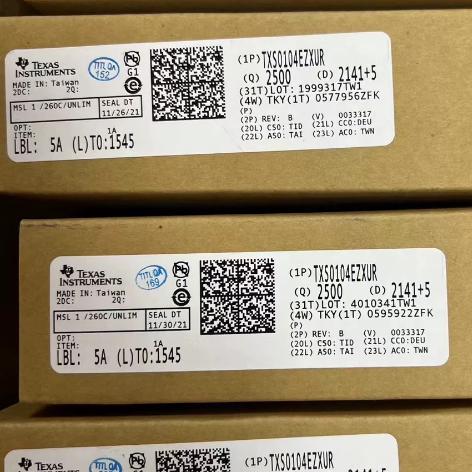

Image for reference only

Manufacturer Part：

TXS0104EZXUR

Package：

DSBGA-12 (ZXU)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MT5016A

MJL4302

MJL4281

MJL21196

MJL21195

MJD50T4G

M65847AFP

KBPC5010

Description

Product Overview

The TXS0104EZXUR is a 4-bit bidirectional voltage-level translator from Texas Instruments, designed for open-drain and push-pull applications. This directionless translator uses two separate configurable power-supply rails, allowing low-voltage bidirectional translation between 1.8V, 2.5V, 3.3V, and 5V voltage nodes. Packaged in a 12-ball DSBGA (ZXU) package, it provides ESD protection up to 15kV on the B port and requires no direction-control signal.

Key Specifications

Parameter Value
Manufacturer Texas Instruments
Bits 4
Data Rate (Max) 24 Mbps (push-pull), 2 Mbps (open drain)
Direction Control Auto-direction (no direction pin needed)
VCCA Range 1.65V to 3.6V
VCCB Range 2.3V to 5.5V
Supply Current (Max) 25uA
Propagation Delay 124 ns
Package DSBGA-12 (ZXU), 1.4mm x 1.8mm
Operating Temperature -40°C to +125°C

Features

  • No direction-control signal needed
  • Maximum data rates: 24Mbps (push pull), 2Mbps (open drain)
  • 1.65V to 3.6V on A port, 2.3V to 5.5V on B port (VCCA ≤ VCCB)
  • No power-supply sequencing required
  • Integrated 10kΩ pull-up resistors on each I/O
  • Edge rate accelerator (one-shot) for improved data rates
  • Output enable (OE) for high-impedance state
  • ESD protection exceeds JESD 22: 15kV HBM on B port
  • IEC 61000-4-2 ESD on B port: ±8kV contact, ±10kV air-gap
  • Latch-up performance exceeds 100mA per JESD 78, class II

Applications

  • I2C, SMBus, and MDIO interfaces
  • SPI, UART, and SDIO communication
  • GPIO voltage translation
  • JTAG and test interfaces
  • Handheld devices, smartphones, and tablets

The TXS0104EZXUR from Texas Instruments is a 4-bit non-inverting bidirectional voltage-level translator designed for open-drain and push-pull applications. It features a pass-gate architecture with edge rate accelerators (one-shots) to improve overall data rates, eliminating the need for direction-control signals. Integrated 10kΩ pull-up resistors save board space in open-drain applications. The A port tracks VCCA (1.65V to 3.6V) and the B port tracks VCCB (2.3V to 5.5V), enabling seamless translation between 1.8V, 2.5V, 3.3V, and 5V systems. With robust ESD protection of up to 15kV HBM on the B port and operation from -40°C to +125°C, this device delivers reliable performance in demanding environments.

The TXS0104E uses a pass-gate architecture with edge rate accelerators to achieve bidirectional voltage translation without requiring a direction control signal. Each I/O channel contains a pass transistor that allows bidirectional data flow. When a low-to-high transition occurs, one-shot circuits (edge rate accelerators) temporarily turn on PMOS transistors to speed up the rising edge, significantly improving data rates. Internal 10kΩ pull-up resistors are provided on both A and B ports for open-drain applications. The OE (output enable) pin places all I/Os in a high-impedance state when low. Power supply sequencing is flexible – either VCCA or VCCB can be ramped first without causing damage.

Pin Name Description
B1-B4 B port I/O B-side bidirectional data lines (2.3V-5.5V)
A1-A4 A port I/O A-side bidirectional data lines (1.65V-3.6V)
OE Output Enable Active high enable (low = high impedance)
VCCA A port supply 1.65V to 3.6V (must be ≤ VCCB)
VCCB B port supply 2.3V to 5.5V
GND Ground Ground reference
  • I2C, SMBus, and MDIO bus level translation
  • SPI, UART, and SDIO interface translation
  • GPIO voltage level shifting in mixed-voltage systems
  • JTAG and test equipment interfaces
  • Smartphones, tablets, and portable electronics
  • Industrial control and automation systems
Model Manufacturer Bits Package
TXB0104 TI 4 Push-pull optimized
TXS0102 TI 2 2-bit version
TXS0108E TI 8 8-bit version
SN74LVC8T245 TI 8 Direction-controlled
