W25Q128JWSIQ

128Mb 1.8V Quad SPI NOR Flash, 133MHz, 4KB sector, XiP, SOIC-8 208mil, industrial temp

3750

Effective Inventory
Go to Inquiry

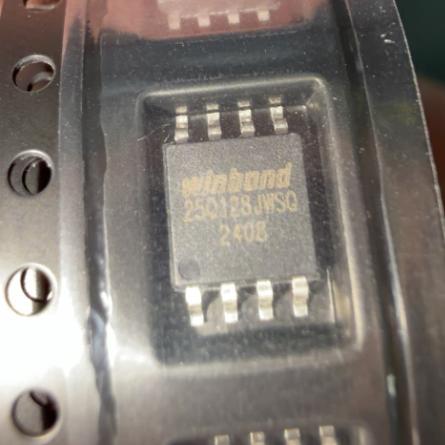

Image for reference only

Manufacturer Part：

W25Q128JWSIQ

Package：

SOIC-8 (208mil / 5.30mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The W25Q128JWSIQ is a 128Mbit (16MB) SPI NOR Flash memory from Winbond operating at 1.7V to 1.95V (1.8V class) with Quad SPI interface and 133 MHz maximum clock. It features 4KB uniform sectors, Dual/Quad I/O for high throughput, and execute-in-place (XiP) capability. Packaged in an 8-pin SOIC-208mil, it is ideal for low-voltage embedded systems requiring high-density code and data storage.

Key Specifications

Density 128Mbit (16MB)
Interface SPI / Dual SPI / Quad SPI
Supply Voltage 1.7V to 1.95V
Max Clock Frequency 133 MHz (STR)
Sector Size 4KB uniform
Block Size 32KB / 64KB
Page Size 256 bytes
Page Program Time 3 ms typ.
Erase Cycles 100,000
Data Retention 20 years
Operating Temp -40°C to +85°C
Package SOIC-8 (208mil)
Part Status Active

Features

  • 128Mbit SPI NOR Flash at 1.8V (1.7~1.95V)
  • Quad SPI interface with 133 MHz STR clock
  • Dual Output and Dual I/O for 2x throughput
  • Quad Output and Quad I/O for 4x throughput
  • Execute-in-Place (XiP) support
  • 4KB uniform sector, 32KB/64KB block erase
  • One-Time Programmable (OTP) region
  • Deep power-down mode for ultra-low standby
  • SFDP and unique ID support
  • 100,000 program/erase cycles, 20-year retention

Applications

  • Low-voltage MCU firmware storage
  • Wearable and IoT device code memory
  • Tablet and smartphone embedded storage
  • AI and smart home device firmware
  • Server and notebook BIOS

The W25Q128JWSIQ is a 128Mbit (16MB) SPI NOR Flash from Winbond operating at 1.7V to 1.95V (1.8V class) with Quad SPI interface and 133 MHz STR clock. It supports standard SPI, Dual SPI, and Quad SPI modes for scalable throughput up to 4x. The device features 4KB uniform sectors, 32KB/64KB block erase, 256-byte page programming, XiP execution, OTP region, and SFDP. Packaged in 8-pin SOIC-208mil, it is designed for low-voltage embedded systems, wearables, IoT devices, and consumer electronics requiring high-density code and data storage at 1.8V.

The W25Q128JW operates via SPI commands (Mode 0 and Mode 3). Standard Read (03h) at up to 50MHz; Fast Read (0Bh) at 133MHz. Dual Output Read (3Bh) and Dual I/O Read (BBh) for 2x throughput. Quad Output Read (6Bh) and Quad I/O Read (EBh) for 4x throughput, enabling XiP at 133MHz. Page Program (02h) writes up to 256 bytes. Erase: Sector Erase (20h, 4KB), Block Erase (52h 32KB / D8h 64KB), Chip Erase (C7h/60h). Status Register controls write protection and status monitoring. Volatile and non-volatile status register bits provide flexible protection. Deep Power-down (B9h) for minimum standby current. The device also supports Read SFDP (5Ah), unique ID (4Bh), and OTP access.

Pin Name Type Function
1 CS# Input Chip select, active low
2 DO (IO1) I/O Data output / Quad data 1
3 WP# (IO2) I/O Write protect / Quad data 2
4 GND Power Ground
5 DI (IO0) I/O Data input / Quad data 0
6 CLK Input Serial clock up to 133 MHz
7 HOLD# (IO3) I/O Hold / Quad data 3
8 VCC Power 1.7V to 1.95V supply
  • 1.8V MCU firmware storage with XiP execution
  • Wearable and IoT device code memory
  • Smartphone and tablet embedded NOR storage
  • AI and smart home device firmware
  • Server and notebook BIOS storage
Manufacturer Part Number Package Notes
Winbond W25Q128JVSIQ SOIC-8 3.3V (2.7~3.6V) variant
Macronix MX25L12835FZNI-10G WSON-8 128Mb 3.3V Quad SPI alternative
GigaDevice GD25Q127C SOIC-8 128Mb SPI flash alternative
Winbond W25Q128JWBIM TFBGA-24 128Mb 1.8V BGA variant
