W25Q16JVSIQ

16Mb Serial NOR Flash, Quad SPI, 133MHz, 2MB, SOIC-8, -40~85°C

23456

Effective Inventory
Go to Inquiry

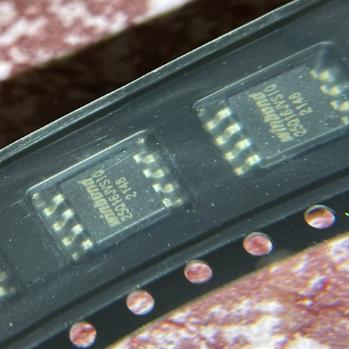

Image for reference only

Manufacturer Part：

W25Q16JVSIQ

Package：

SOIC-8 (208mil)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

LY62L25716LL-55LLI

LY62L5128BRL-45SLI

LY625128SL-55LL

MDS5601URH

DL-6950N

DL-3900N

DL-165

W29N08GVSIAA

Description

Product Overview

The W25Q16JVSIQ is a 16Mbit (2MB) Serial NOR Flash Memory from Winbond with Standard/Dual/Quad SPI interface and 133 MHz clock rate. It is the smallest density in the W25QJV series, ideal for small-footprint bootloader and configuration storage in embedded systems. Packaged in SOIC-8 (208mil).

Key Specifications

Density 16Mbit (2MB)
Supply Voltage 2.7V to 3.6V
Interface Standard/Dual/Quad SPI
Max Clock Rate 133 MHz
Page Size 256 bytes
Sector Size 4KB
Endurance 100,000 P/E cycles
Operating Temp -40°C to +85°C
Package SOIC-8 (208mil)
Part Status Active

Features

  • 16Mbit Serial NOR Flash with Quad SPI
  • 133 MHz clock rate
  • 4KB sectors, 256-byte pages
  • OTP area
  • 100K P/E endurance, 20-year retention

Applications

  • Bootloader storage
  • Configuration data storage
  • Small MCU Flash expansion

The W25Q16JVSIQ is a 16Mbit (2MB) Serial NOR Flash from Winbond with Standard/Dual/Quad SPI and 133 MHz clock. The smallest density in the W25QJV series, it is ideal for bootloader and configuration storage in space-constrained embedded systems.

Serial NOR Flash with Standard/Dual/Quad SPI modes. Read: Command + address + dummy → data. Program: Write enable → page program (256 bytes). Erase: Sector (4KB) or chip erase. SLC 1-bit-per-cell floating-gate technology provides 100K P/E endurance and 20-year retention.

Pin Name Type Function
1 CS# Input Chip select
2 DO/IO1 I/O Data out / IO1
3 WP#/IO2 I/O Write protect / IO2
4 GND Power Ground
5 DI/IO0 I/O Data in / IO0
6 CLK Input Clock
7 HOLD#/IO3 I/O Hold / IO3
8 VCC Power 3.3V supply
  • MCU bootloader storage
  • Configuration/calibration data
  • Small firmware images
Manufacturer Part Number Package Notes
GigaDevice GD25Q16C SOP-8 16Mb QSPI alternative
Macronix MX25L1633F SOP-8 16Mb QSPI alternative
