W25Q32JWBYIQ

32Mbit 1.8V QSPI NOR Flash, 133MHz, WLCSP-12 2.3x2mm Industrial

12086

Effective Inventory
Go to Inquiry

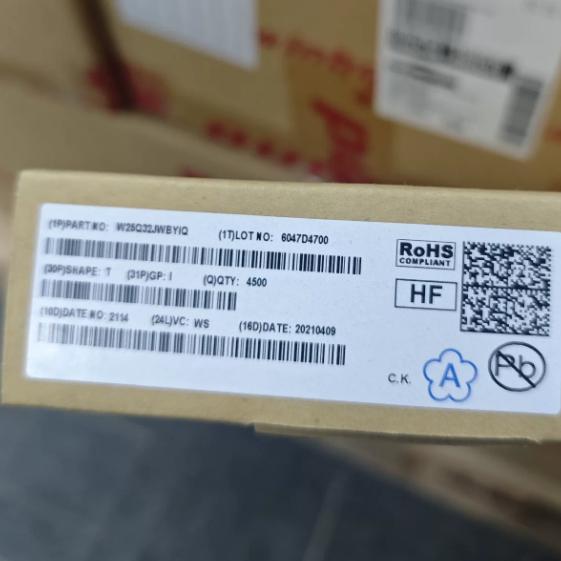

Image for reference only

Manufacturer Part：

W25Q32JWBYIQ

Package：

WLCSP-12 (2.31 x 2.03mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

5M160ZT100C5N

5G921C

XC9536XL-10VQG44C

XC95144XL-TQG144AW

XC7K160T-2FFG676I

XC7A100T-FGG676

XC6SLX75-2FGG484I

XC6SLX16-2FTG256C

Description

Product Overview

The W25Q32JWBYIQ is a 32Mbit 1.8V Serial NOR Flash from Winbond in WLCSP-12 (2.31×2.03mm) wafer-level chip scale package. SPI/Dual/Quad at up to 133MHz.

Key Specifications

Manufacturer Winbond Electronics
Density 32Mbit (4M x 8)
Interface SPI/Dual/Quad
Max Clock 133 MHz
Supply Voltage 1.7V to 1.95V
Sector 4KB/32KB/64KB
Endurance 100,000 cycles
Temperature -40°C to +85°C
Package WLCSP-12 (2.31 x 2.03mm)

Features

  • WLCSP-12 ultra-compact 2.31×2.03mm
  • 1.8V low-power
  • 133MHz SPI/Quad SPI
  • Quad Enabled factory default
  • <1µA power-down

Applications

  • Wearable and mobile devices
  • Ultra-compact IoT
  • SiP integration

32Mbit 1.8V QSPI NOR Flash, 133MHz, WLCSP-12 Industrial.

1.8V NOR Flash in WLCSP-12, smallest possible package. SPI/Dual/Quad at 133MHz. Ideal for SiP integration.

Pin Name Function
IO0-3 Data Quad Data
  • Wearable and mobile devices
  • Ultra-compact IoT
  • SiP integration
Part Notes
W25Q32JWUUIQ USON 4x3mm
