W25X20CLUXIG

2Mbit SPI NOR Flash, 104MHz, 2.3-3.6V, USON 2x3mm Industrial

10639

Effective Inventory
Go to Inquiry

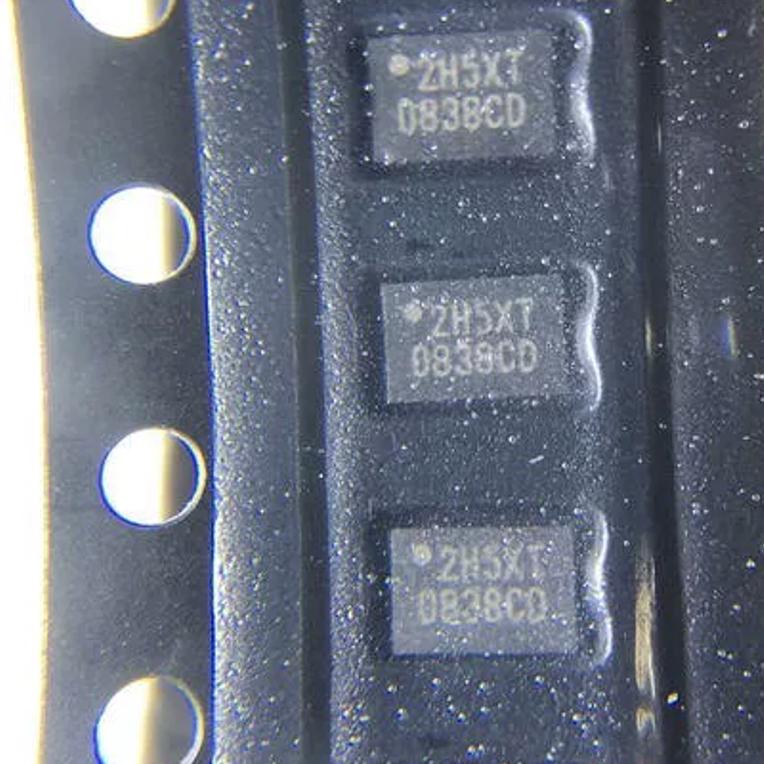

Image for reference only

Manufacturer Part：

W25X20CLUXIG

Package：

USON (2.1 x 2.1mm)

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

5M160ZT100C5N

5G921C

XC9536XL-10VQG44C

XC95144XL-TQG144AW

XC7K160T-2FFG676I

XC7A100T-FGG676

XC6SLX75-2FGG484I

XC6SLX16-2FTG256C

Description

Product Overview

The W25X20CLUXIG is a 2Mbit (256Kx8) Serial NOR Flash from Winbond at 104MHz. SPI/Dual, 2.3V-3.6V, USON 2.1×2.1mm, industrial. Ultra-compact.

Key Specifications

Manufacturer Winbond Electronics
Density 2Mbit (256K x 8)
Interface SPI, Dual SPI
Max Clock 104 MHz
Supply Voltage 2.3V to 3.6V
Active Current 15 mA
Temperature -40°C to +85°C
Package USON (2.1 x 2.1mm)

Features

  • 104MHz SPI clock
  • 2.3V-3.6V wide voltage
  • Ultra-compact USON 2.1×2.1mm
  • 4KB/32KB/64KB erase
  • <1µA power-down

Applications

  • Wearable and IoT devices
  • Portable electronics
  • Embedded firmware storage

2Mbit SPI NOR Flash, 104MHz, USON 2x3mm Industrial.

Standard/Dual SPI interface. Commands clocked on CLK rising edges. Page Program 1-256B. Power-down below 1µA.

Pin Name Function
1 /CS Chip Select
  • Wearable and IoT devices
  • Portable electronics
  • Embedded firmware storage
Part Notes
W25Q20CLUXIG Quad SPI version
