W29N01HVSINA

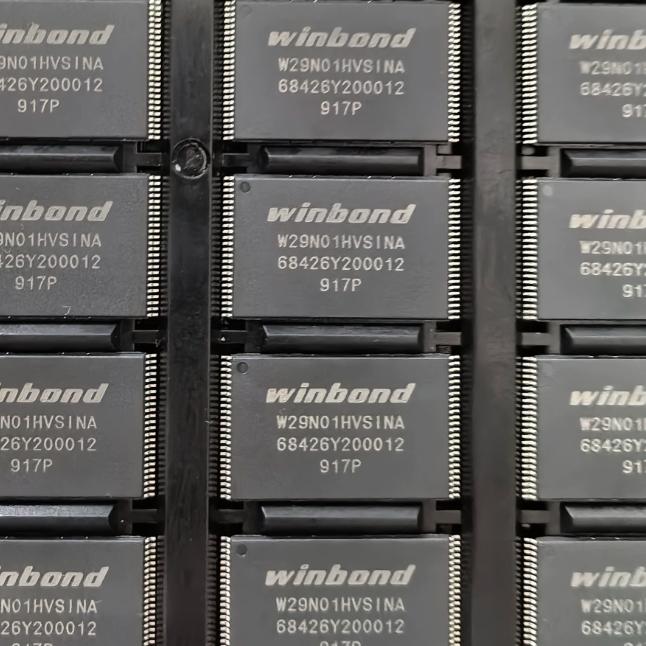

1Gb SLC NAND Flash, x8 parallel, 2.7~3.6V, 40MHz, 2048+64B page, 48-TSOP I, industrial temp

4567

Effective Inventory
Go to Inquiry

Image for reference only

Manufacturer Part：

W29N01HVSINA

Package：

48-TSOP I (12 x 20mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

MSP430F5304IRGZR

MS9282-1

OP2177ARMZ

NJM2068M

NCF3320EHN

NC7SZ126M5X

MT8870DSR1

MCP6S26-I

Description

Product Overview

The W29N01HVSINA is a 1Gbit (128MB) SLC NAND Flash memory from Winbond, operating at 2.7V to 3.6V with a parallel 8-bit multiplexed bus interface. It features 2112-byte pages (2048+64 spare), 64-page blocks (128KB+4KB spare), and 40 MHz maximum frequency. Packaged in a 48-pin TSOP-I, it supports standard NAND command set with copy-back, hardware write protection, and bad block management.

Key Specifications

Density 1Gbit (128MB)
Technology SLC NAND Flash
Interface Parallel 8-bit multiplexed
Supply Voltage 2.7V to 3.6V
Max Frequency 40 MHz
Page Size 2112 bytes (2048 + 64 spare)
Block Size 64 pages (128KB + 4KB spare)
Total Blocks 1024
Random Read Access 25 us
Sequential Read Cycle 25 ns
Page Program Time 250 us typ.
Block Erase Time 2 ms typ.
Erase Cycles 100,000
Data Retention 10 years
Active Current 25 mA typ.
Standby Current 10 uA typ.
Operating Temp -40°C to +85°C
Package 48-TSOP I (12 x 20mm)
Part Status Active

Features

  • 1Gbit SLC NAND Flash with x8 bus width
  • Standard NAND command set with copy-back function
  • 2112-byte page (2048 data + 64 spare)
  • 1024 blocks of 64 pages each
  • 25 us random read, 25 ns sequential read cycle
  • 250 us page program, 2 ms block erase (typical)
  • Hardware write protection (#WP)
  • Bad block management and ECC support
  • Software reset function
  • Ready/Busy (RY/#BY) status monitoring
  • 100,000 program/erase cycles
  • Low power: 25mA active, 10uA CMOS standby

Applications

  • Embedded system mass storage
  • Code shadowing to RAM
  • Solid-state data logging
  • Voice, video, text, and photo storage
  • Industrial and automotive data storage

The W29N01HVSINA is a 1Gbit (128MB) SLC NAND Flash memory from Winbond operating at 2.7V to 3.6V with a parallel 8-bit multiplexed bus interface. The memory array is organized into 1024 blocks of 64 pages, with each page consisting of 2112 bytes (2048 data + 64 spare). The device supports the standard NAND flash command set with copy-back write, hardware write protection, bad block management, and ECC. With 25us random read access, 250us page program, and 2ms block erase, it delivers reliable performance for embedded mass storage. Packaged in 48-pin TSOP-I for industrial temperature range (-40°C to +85°C).

The W29N01HV uses a multiplexed 8-bit bus to transfer data, addresses, and commands. Five control signals (CLE, ALE, #CE, #RE, #WE) handle the bus protocol. Commands are written by asserting CLE high while writing to the data bus. Addresses are written by asserting ALE high. Data is read/written with #RE/#WE pulses. The RY/#BY pin indicates device status during program/erase operations. The copy-back function enables page-to-page data transfer without external buffering. ECC and bad block management ensure data integrity across the 1Gbit SLC array. The #WP pin provides hardware write protection during power transitions.

Pin Group Name Type Function
I/O0-I/O7 Data/Addr/Cmd I/O 8-bit multiplexed data, address, command bus
CLE Command Latch Enable Input Latches command on #WE rising edge
ALE Address Latch Enable Input Latches address on #WE rising edge
#CE Chip Enable Input Activates device, active low
#RE Read Enable Input Sequential data output on falling edge
#WE Write Enable Input Writes data/addr/cmd on rising edge
#WP Write Protect Input Hardware write/erase protection
RY/#BY Ready/Busy Output Device operation status
VCC Power Power 2.7V to 3.6V supply
VSS Ground Power Ground
  • Embedded system mass storage and code shadowing to RAM
  • Industrial data logging and event recording
  • Automotive infotainment media storage
  • Voice, video, and image data storage in consumer devices
Manufacturer Part Number Package Notes
ISSI IS34ML01G081-TLI 48-TSOP I 1Gb SLC NAND, pin-compatible
Micron MT29F1G08ABAEAH4-IT:E 48-TSOP I 1Gb SLC NAND alternative
Winbond W29N01HVSINA TR 48-TSOP I Tape & reel variant
SK Hynix H27U1G8F2BTR-BC 48-TSOP I 1Gb SLC NAND alternative
