W634GU6RB-11

512Mb DDR3-800 SDRAM, 32Mx16, 1.5V, CL11, 8 banks, FBGA-96

1234

Effective Inventory

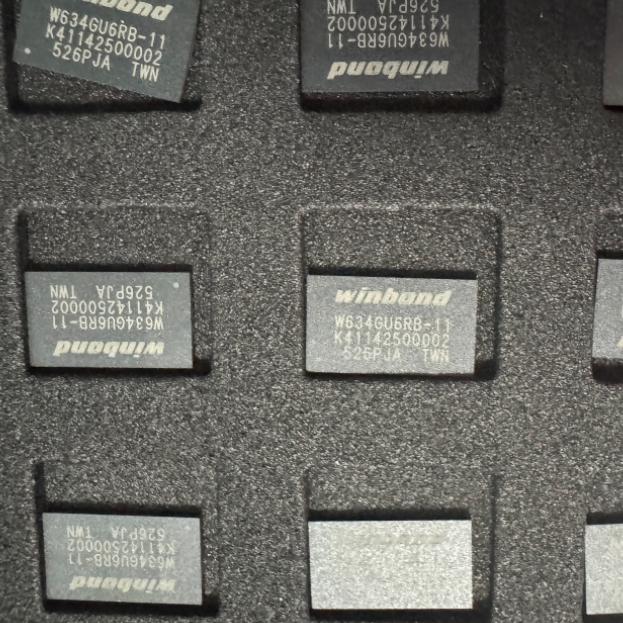

Image for reference only

Manufacturer Part：

W634GU6RB-11

Package：

FBGA-96

Brand：

Winbond

Product Categories：

Analog Linear ICs, Integrated Circuits ICs

Other recommendations you may be interested in.

LY62L12816ML-70LLI

LY62L51216ML-70LLI

IS62WV102416GBLL-45TLI

IS62WV51216HBLL-45TLI

KLM8G1GETF-B041006

Description

Product Overview

The W634GU6RB-11 is a 512Mbit DDR3 SDRAM from Winbond operating at 1.5V with x16 organization and 800 MT/s data rate (CL11). It is part of Winbond’s specialty DRAM portfolio targeting legacy and industrial applications that require DDR3 (not DDR3L) at 1.5V with long-term availability.

Key Specifications

Density	512Mbit (32M x 16 x 8 banks)
Standard	DDR3 SDRAM
Data Rate	800 MT/s (DDR3-800)
Supply Voltage	1.5V
Organization	32M x 16
CAS Latency	CL11 @ 800 MT/s
Banks	8
Operating Temp	0°C to +70°C
Package	FBGA-96
Part Status	Active

Features

512Mbit DDR3 SDRAM with x16 organization
1.5V DDR3 (not DDR3L) operation
800 MT/s data rate (CL11)
8 banks with BL8/BC4
ODT and write leveling
Winbond long-term availability

Applications

Legacy DDR3 memory subsystems
Industrial equipment requiring 1.5V DDR3
Embedded computing

Product Introduction:W634GU6RB-11 Product Introduction

The W634GU6RB-11 is a 512Mbit DDR3 SDRAM from Winbond organized as 32M x 16 bits, operating at 1.5V with 800 MT/s data rate (CL11). It targets legacy and industrial applications requiring standard 1.5V DDR3 with long-term supply availability from Winbond’s specialty DRAM portfolio.

Working Principle:W634GU6RB-11 Working Principle

DDR3 SDRAM per JEDEC JESD79-3. Commands clocked on rising edge of CK/CK#. Data transferred on both DQS edges (double data rate). Read: Activate + Read → data after CL cycles. Write: Activate + Write. ODT reduces signal reflections. Write leveling compensates for DQS-to-CK skew.

Pin Description:W634GU6RB-11 Pin Definition and Functions

Pin Group	Interface	Function
Address/Bank	Input	Address and bank select
DQ0-DQ15	I/O	16-bit data bus
DQS/ODT/Cmd	Mixed	Strobe, termination, command

Application Scenarios:In which products and applications isW634GU6RB-11 used

Legacy 1.5V DDR3 memory systems
Industrial DDR3 subsystems
Embedded computing memory

Alternative Models:What chips are recommended as replacements for W634GU6RB-11

Manufacturer	Part Number	Package	Notes
ISSI	IS43TR16256BL-107KLI	FBGA	512Mb DDR3 x16 alternative
Winbond	W634GU6RB-13	FBGA	Slower speed grade variant
