W9412G6KH-5

128Mbit DDR SDRAM, 8Mx16, DDR400, 2.5V, 66-TSOP-II Commercial

7071

Effective Inventory
Go to Inquiry

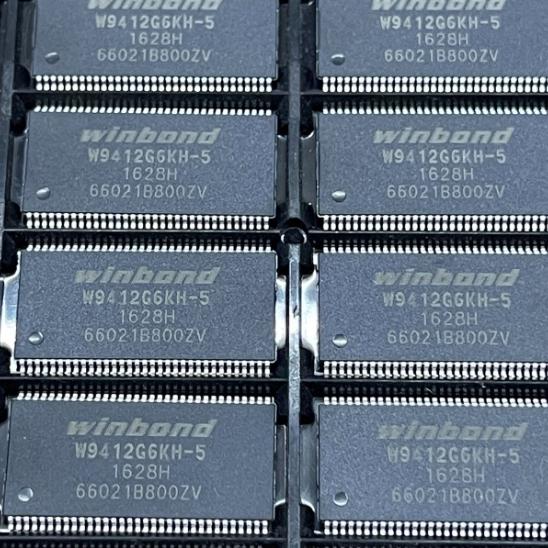

Image for reference only

Manufacturer Part：

W9412G6KH-5

Package：

66-TSOP II

Brand：
Product Categories：

Quality Commitment

Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

5M160ZT100C5N

5G921C

XC9536XL-10VQG44C

XC95144XL-TQG144AW

XC7K160T-2FFG676I

XC7A100T-FGG676

XC6SLX75-2FGG484I

XC6SLX16-2FTG256C

Description

Product Overview

The W9412G6KH-5 is a 128Mbit (8Mx16) DDR SDRAM from Winbond compliant with DDR400/CL3. 4-bank, 2.5V, SSTL_2, 66-TSOP-II, commercial.

Key Specifications

Manufacturer Winbond Electronics
Density 128Mbit (8M x 16)
Technology DDR SDRAM
Banks 4
Speed DDR400 (CL3)
Supply Voltage 2.3V to 2.7V
Interface SSTL_2
Temperature 0°C to +70°C
Package 66-TSOP II

Features

  • DDR400/CL3 compliant
  • Double data rate architecture
  • 4-bank interleaved
  • Programmable CAS latency
  • DM data mask
  • Self refresh mode

Applications

  • Legacy PC memory
  • Embedded computing
  • Graphics frame buffers

128Mbit DDR SDRAM, 8Mx16, DDR400 CL3, 2.5V, 66-TSOP-II Commercial.

DDR SDRAM transfers data on both edges of the clock. 4-bank architecture with interleaved operation. SSTL_2 interface at 2.5V.

Pin Name Function
DQ0-DQ15 Data 16-bit Data
  • Legacy PC memory
  • Embedded computing
  • Graphics frame buffers
Part Notes
W9412G6KH-5I Industrial version
