W971GG6SB-25I

1Gbit DDR2 SDRAM, 64Mx16, DDR2-800, 1.8V, 84-WBGA Industrial

8813

Effective Inventory
Go to Inquiry

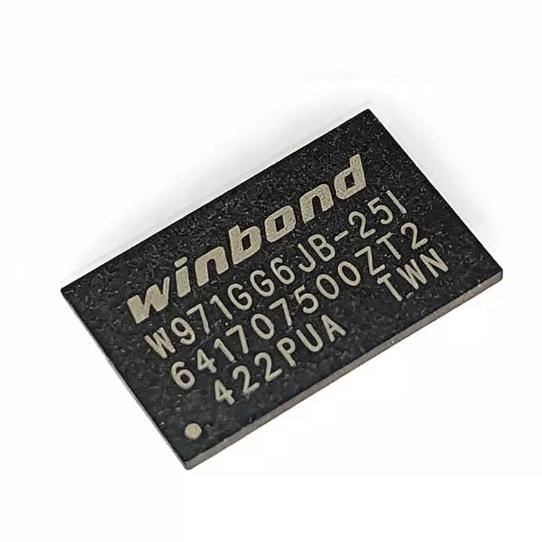

Image for reference only

Manufacturer Part：

W971GG6SB-25I

Package：

84-WBGA (8 x 12.5mm)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

TJA1043TK/1

BSZ075N08NS5

BSC040N10NS5

SN74LVC1G11DCKR

W632GG6MB-12

W9412G6KH-5

W25Q16JWSNIQ

W25Q32JWBYIQ

Description

Product Overview

The W971GG6SB-25I is a 1Gbit (64Mx16) DDR2 SDRAM from Winbond compliant with DDR2-800 (5-5-5). 8-bank, 1.8V, SSTL_18, 84-WBGA, industrial (-40 to +95°C). Obsolete.

Key Specifications

Manufacturer Winbond Electronics
Density 1Gbit (64M x 16)
Technology DDR2 SDRAM
Banks 8
Speed Grade DDR2-800 (5-5-5)
Supply Voltage 1.7V to 1.9V
Interface SSTL_18
Temperature -40°C to +95°C
Package 84-WBGA (8 x 12.5mm)
Status Obsolete

Features

  • DDR2-800 compliant
  • 8-bank architecture
  • CAS Latency 3-7
  • Burst length 4 and 8
  • ODT and OCD for signal quality
  • Auto and self refresh

Applications

  • Legacy PC memory
  • Embedded computing
  • Networking equipment

1Gbit DDR2 SDRAM, 64Mx16, DDR2-800, 1.8V, 84-WBGA Industrial. Obsolete.

Double Data Rate 2 SDRAM transfers data on both edges of the differential clock. 8-bank architecture with posted CAS. ODT provides on-die termination.

Pin Name Function
DQ0-DQ15 Data 16-bit Data
  • Legacy PC memory
  • Embedded computing
  • Networking equipment
Part Notes
MT47H64M16NF-25E Micron equivalent
