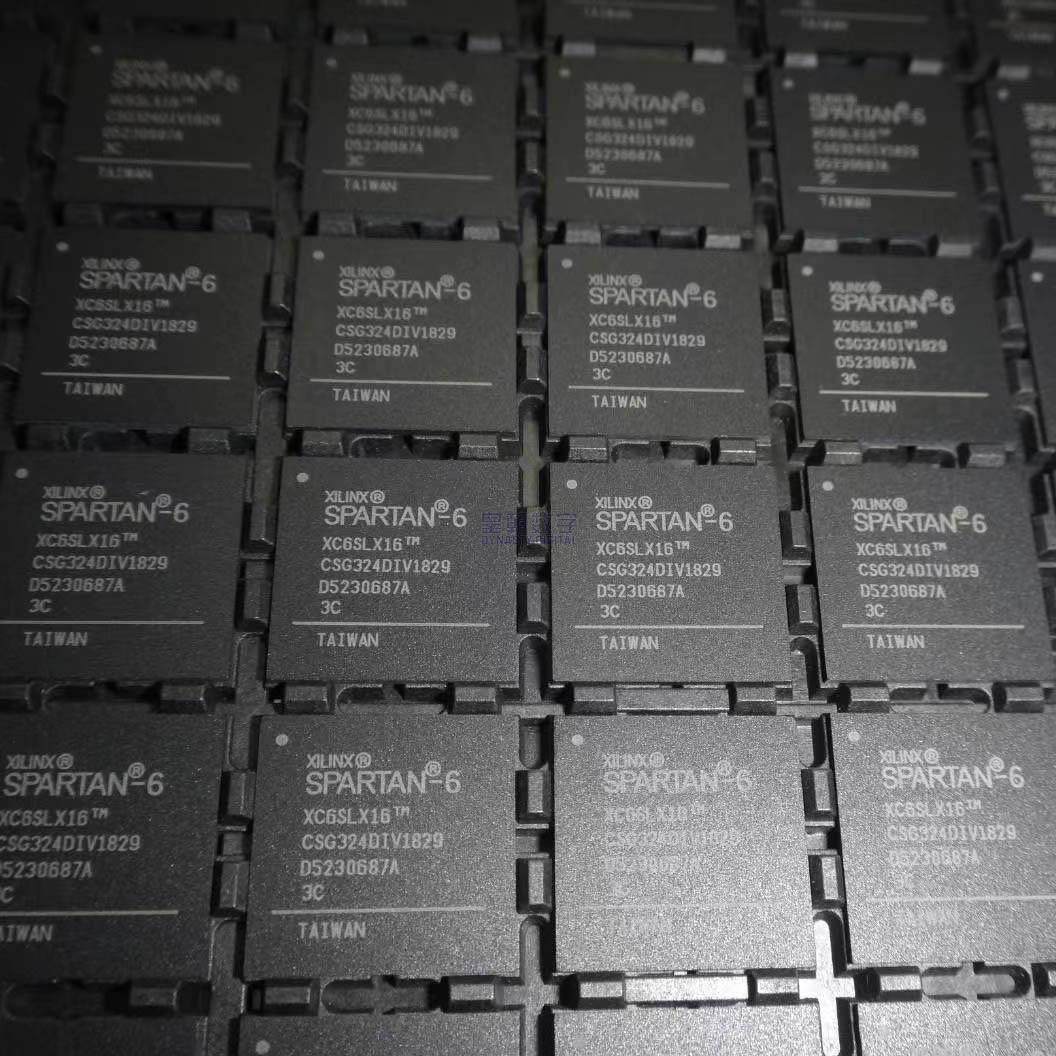

XC6SLX16-2CSG324C

The XC6SLX16-2CSG324C is a mid-density member of Xilinx’s (now AMD) Spartan-6 LX family of cost-optimized FPGAs. Built on a mature 45nm low-power copper process, this device provides 14,579 logic cells in a compact 324-ball chip-scale BGA package, delivering an excellent balance of performance, features, and cost for high-volume applications.

At the heart of the Spartan-6 architecture is an efficient 6-input LUT (look-up table) with dual flip-flops, enabling both high combinational logic performance and efficient pipelined designs. The 14,579 logic cells are organized into 2,278 CLB slices – approximately 25% are SLICEMs capable of implementing distributed RAM and shift registers (SRL), while the remaining 75% are SLICEL/SLICEX for general logic.

For digital signal processing applications, 32 DSP48A1 slices provide dedicated 18×18-bit multipliers with integrated adders and accumulators, supporting efficient FIR filters, FFT accelerators, and other DSP functions at significantly higher performance than logic-only implementations. Memory resources include 32 block RAMs (18Kb each, splittable into two 9Kb blocks) totaling 576Kb, plus up to 136Kb of distributed RAM implemented in SLICEM LUTs.

Clock management is handled by two Clock Management Tiles (CMTs), each containing two Digital Clock Managers (DCMs) for clock skew elimination and frequency synthesis, plus one Phase-Locked Loop (PLL) for low-jitter clock generation and phase shifting. Two integrated memory controller blocks support DDR, DDR2, DDR3, and LPDDR interfaces at data rates up to 800Mb/s, providing high-bandwidth memory access without consuming general-purpose FPGA logic.

The CSG324 package provides 232 user I/O pins across four I/O banks, supporting over 40 I/O standards including LVCMOS (1.2V-3.3V), LVTTL, HSTL, SSTL, and LVDS (up to 106 differential pairs). The -2 speed grade provides the second-highest performance level for commercial temperature (0 degC to 85 degC) operation. AMD has announced long-term support for Spartan-6 devices through at least 2030, ensuring supply stability for long-lifecycle programs.

The Spartan-6 XC6SLX16 FPGA is a programmable logic device that can be configured to implement virtually any digital logic function. Here are the key aspects of its architecture and operation:

1. Configurable Logic Blocks (CLBs): The fundamental logic resource. Each CLB contains two slices, and each slice contains four 6-input LUTs, eight flip-flops, carry logic for arithmetic, and multiplexer logic. SLICEM slices (25% of total) can additionally implement distributed RAM (64-bit per LUT) or shift registers (SRL32/SRL16). The 6-input LUT can implement any 6-input, 1-output Boolean function, or split into two 5-input, 2-output functions with common inputs.

2. Block RAM: 32 dedicated 18Kb memory blocks arranged in columns. Each block can be configured as a single 18Kb RAM or two independent 9Kb RAMs. They support true dual-port, simple dual-port, and single-port modes with byte write enables. Block RAMs can be cascaded to create larger memories. They operate at the full fabric speed for high-bandwidth data buffering and storage.

3. DSP48A1 Slices: 32 dedicated arithmetic blocks arranged in a column. Each DSP48A1 contains an 18×18-bit two’s complement multiplier, a 48-bit accumulator, and a pre-adder. They support pipelining for high clock rates and cascading for wider arithmetic operations. DSP slices can implement multipliers, multiply-accumulate (MAC), adders, subtractors, and comparators at much higher efficiency than LUT-based implementations.

4. Clock Management Tiles (CMTs): Two CMTs provide comprehensive clock generation and management. Each CMT contains two DCMs (Digital Clock Managers) for duty-cycle correction, phase shifting, frequency synthesis, and deskew; plus one PLL (Phase-Locked Loop) for low-jitter clock multiplication and phase alignment. Sixteen global clock networks distribute clocks across the device with minimal skew.

5. Memory Controller Blocks (MCBs): Two hard memory controller blocks provide dedicated, high-performance interfaces to external DRAM. They support DDR, DDR2, DDR3, and LPDDR memory types with data rates up to 800Mb/s (12.8 Gb/s peak bandwidth per MCB). The MCB includes a multi-port bus architecture with independent FIFOs, easing timing closure in user designs.

6. SelectIO I/O Banks: Four I/O banks surround the logic fabric. Each bank has its own Vcco supply voltage, enabling mixed-voltage designs. The IOBs (I/O Blocks) can be configured for single-ended or differential signaling with programmable termination, drive strength (up to 24mA), and slew rate. Supported standards include LVCMOS, LVTTL, HSTL, SSTL, LVDS, and more.

7. Configuration: The FPGA loads its configuration from an external non-volatile memory (SPI Flash, NOR Flash) at power-up via dedicated configuration pins or JTAG. The configuration bitstream programs all LUTs, flip-flops, block RAMs, DSP slices, IOBs, and routing to implement the desired digital circuit. MultiBoot supports loading multiple bitstreams for remote updates with watchdog protection.

8. Power Management: Multiple power-saving modes are available including Suspend (maintains configuration and state, multi-pin wakeup) and Hibernate (zero power, state lost). Normal operating power is reduced by the 45nm process and optimized architecture compared to previous FPGA generations.

Package: CSG324 – Chip-Scale Ball Grid Array, 324 balls. Package dimensions: 15mm x 15mm body size. Ball pitch: 0.8mm. Ball array: approximately 18×18 grid. 4 I/O banks. Commercial grade, 0 degC to 85 degC operating range.

• Industrial Automation and Control: PLC modules, industrial Ethernet bridges, motor controllers, and factory I/O systems, where the FPGA’s flexibility enables custom interface protocols, real-time processing, and integration of multiple functions (logic, DSP, memory, I/O) in a single chip, reducing BOM cost and board space.
• Automotive Infotainment and Displays: Display controllers, video scaling, touch processing, and infotainment interfaces in automotive head units and instrument clusters, where the Spartan-6’s cost optimization, video capability, and long product lifecycle align with automotive program requirements and extended supply guarantees through 2030.
• Cost-Sensitive Interface Bridging: Protocol conversion and bridging applications such as PCIe to local bus, LVDS to CMOS, camera interface bridging, and multi-protocol communication adapters, leveraging the 232 I/O pins and 40+ I/O standards for flexible interface design with minimal external logic.
• Consumer Electronics and Set-Top Boxes: Video processing, display control, and system glue logic in set-top boxes, digital TVs, media players, and gaming accessories, where the combination of DSP slices, block RAM, and I/O flexibility enables efficient implementation of video pipelines and system interfaces at low cost.
• Video Processing and Display: Low-cost video scaling, deinterlacing, overlay, and display timing control for LCD/OLED panels, video surveillance cameras, and digital signage, using block RAM for line buffers and DSP slices for pixel processing operations.
• Motor Control and Motion Systems: FPGA-based motor controllers for servo drives, stepper motors, and multi-axis motion systems, where the DSP slices implement current control loops, PWM generation, and encoder interface processing in hardware for deterministic real-time performance.
• Medical and Healthcare Equipment: Ultrasound, patient monitoring, diagnostic instruments, and laboratory equipment requiring signal processing, high-speed data acquisition, and flexible I/O interfaces, with the FPGA providing hardware acceleration for DSP algorithms and real-time data path management.
• Communication and Data Acquisition: Multi-channel data acquisition systems, software-defined radio front-ends, and industrial communication adapters, where the integrated memory controllers provide high-bandwidth buffer memory and the SelectIO technology enables interfacing with various data converters and communication PHYs.
