IRF1010EPBF

60V N-channel HEXFET power MOSFET, 84A, 3.4mΩ RDS(on), TO-220AB package

5680

Effective Inventory
Go to Inquiry

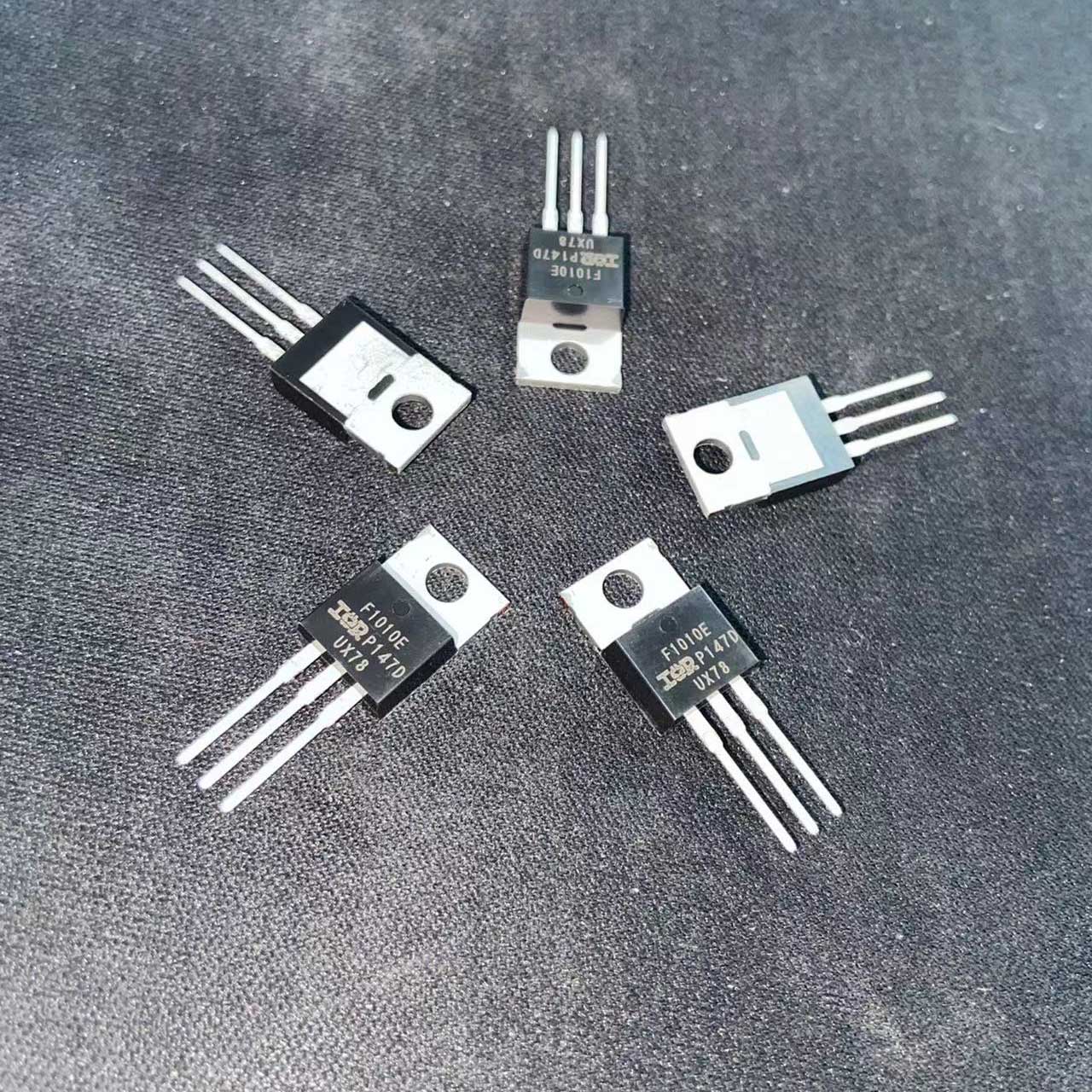

Image for reference only

Manufacturer Part：

IRF1010EPBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF1010EPBF is an N-channel HEXFET power MOSFET from Infineon Technologies. Featuring low on-resistance and high current handling capability, this device is designed for high-power switching applications in a through-hole TO-220AB package. It is part of the HEXFET series known for its ruggedness and reliability.

Key Specifications

r>

Parameter Value
Drain-Source Voltage (VDSS) 60V
Continuous Drain Current (ID) 84A @ Tc=25°C
On-Resistance (RDS(on)) 3.4mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 210nC (typ)
Power Dissipation (PD) 200W @ Tc=25°C
Operating Junction Temperature -55°C to +175°C
Package TO-220AB

Features

  • Ultra-low on-resistance for high efficiency
  • High current carrying capability
  • Fast switching speed
  • Fully characterized avalanche voltage and current
  • Dynamic dv/dt rating
  • RoHS compliant and lead-free
  • Industry standard TO-220AB package

Applications

  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Battery protection circuits
  • Load switching
  • Industrial power supplies

The IRF1010EPBF is an N-channel enhancement mode power MOSFET using Infineon’s advanced HEXFET process technology. It offers extremely low on-resistance combined with high current handling capability, making it ideal for high-power switching applications. The device is housed in a standard TO-220AB through-hole package, providing excellent thermal performance suitable for demanding power conversion environments.

The IRF1010EPBF operates as an N-channel enhancement mode MOSFET. When the gate-to-source voltage (VGS) exceeds the threshold voltage (typically 3V), an inversion layer forms in the channel region between the drain and source, allowing current to flow. The device is designed for switching applications where it operates between the cut-off (off) and ohmic (on) regions. In the on-state, the low RDS(on) minimizes conduction losses. In the off-state, the device blocks high voltage with minimal leakage current. The gate is electrically isolated from the channel by a thin silicon dioxide layer, resulting in very high input impedance.

Pin Number Symbol Description
1 Gate (G) Gate terminal – controls MOSFET conduction
2 Drain (D) Drain terminal – current input
3 Source (S) Source terminal – current return
Tab Drain Connected to drain (tab)
  • DC-DC converters
  • Motor control and drives
  • Power management systems
  • Battery protection circuits
  • Load switching
  • Industrial power supplies
Model Manufacturer Voltage Package
IRF1010NPBF Infineon 55V TO-220AB
FDP047N08 ON Semiconductor 75V TO-220
IPP047N10N3 Infineon 100V TO-220
