IRF5210STRLPBF

100V P-channel power MOSFET, -39A, 70mΩ RDS(on), D2PAK (TO-263) package

4580

Effective Inventory
Go to Inquiry

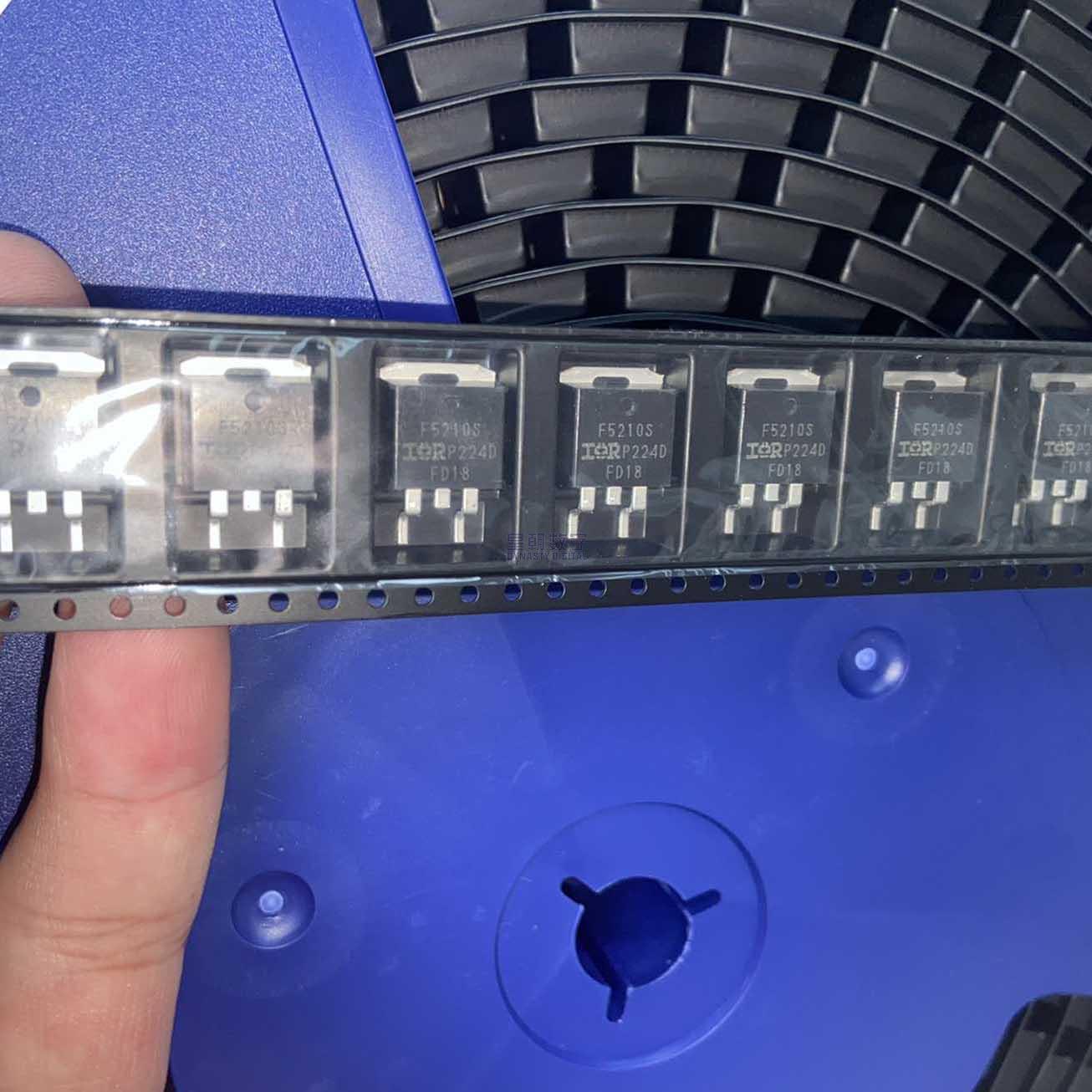

Image for reference only

Manufacturer Part：

IRF5210STRLPBF

Package：

D2PAK (TO-263)

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF5210STRLPBF is a P-channel HEXFET power MOSFET from Infineon Technologies. With a 100V voltage rating and high current capability, this D2PAK surface-mount device is designed for high-side switching and various power management applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) -100V
Continuous Drain Current (ID) -39A @ Tc=25°C
On-Resistance (RDS(on)) 70mΩ max @ VGS=-10V
Gate Threshold Voltage (VGS(th)) -2V to -4V
Total Gate Charge (Qg) 160nC (typ)
Power Dissipation (PD) 200W @ Tc=25°C
Operating Junction Temperature -55°C to +175°C
Package D2PAK (TO-263)

Features

  • P-channel configuration for high-side switching
  • Low on-resistance (70mΩ max)
  • High current handling capability
  • Fast switching speed
  • Fully characterized avalanche energy
  • Dynamic dv/dt rating
  • D2PAK surface-mount package
  • RoHS compliant and lead-free

Applications

  • High-side load switching
  • Battery management systems
  • Motor control (H-bridge)
  • DC-DC converters
  • Power supply circuits
  • Automotive applications

The IRF5210STRLPBF is a P-channel enhancement mode power MOSFET from Infineon’s HEXFET series. With a -100V rating and -39A continuous drain current, it is ideal for high-side switching applications where an N-channel device would require additional drive circuitry. The D2PAK package provides excellent thermal performance in a surface-mount form factor.

The IRF5210STRLPBF is a P-channel enhancement-mode MOSFET. When a negative gate-to-source voltage (more negative than the threshold voltage of -2V to -4V) is applied, a p-type inversion layer forms in the n-type body region, creating a conductive channel for hole current flow from source to drain. In high-side switching applications, the source is typically connected to the positive supply rail. When the gate is pulled below the source voltage (VGS negative), the MOSFET turns on, connecting the load to the supply. When VGS = 0, the device is off, blocking voltage between drain and source.

Pin Number Symbol Description
1 Gate (G) Gate terminal
2 Drain (D) Drain terminal (also tab)
3 Source (S) Source terminal
Tab Drain Tab connected to drain for thermal dissipation
  • High-side load switching
  • Battery management systems
  • Motor control (H-bridge)
  • DC-DC converters
  • Power supply circuits
  • Automotive applications
Model Manufacturer Voltage Package
IRF9540NSTRLPBF Infineon 100V D2PAK
SUP90P06-09 Vishay 60V D2PAK
NTD2955T4G ON Semiconductor 60V D2PAK
