IRF630NPBF

200V N-channel power MOSFET, 9.3A, 300mΩ RDS(on), TO-220AB package

4820

Effective Inventory
Go to Inquiry

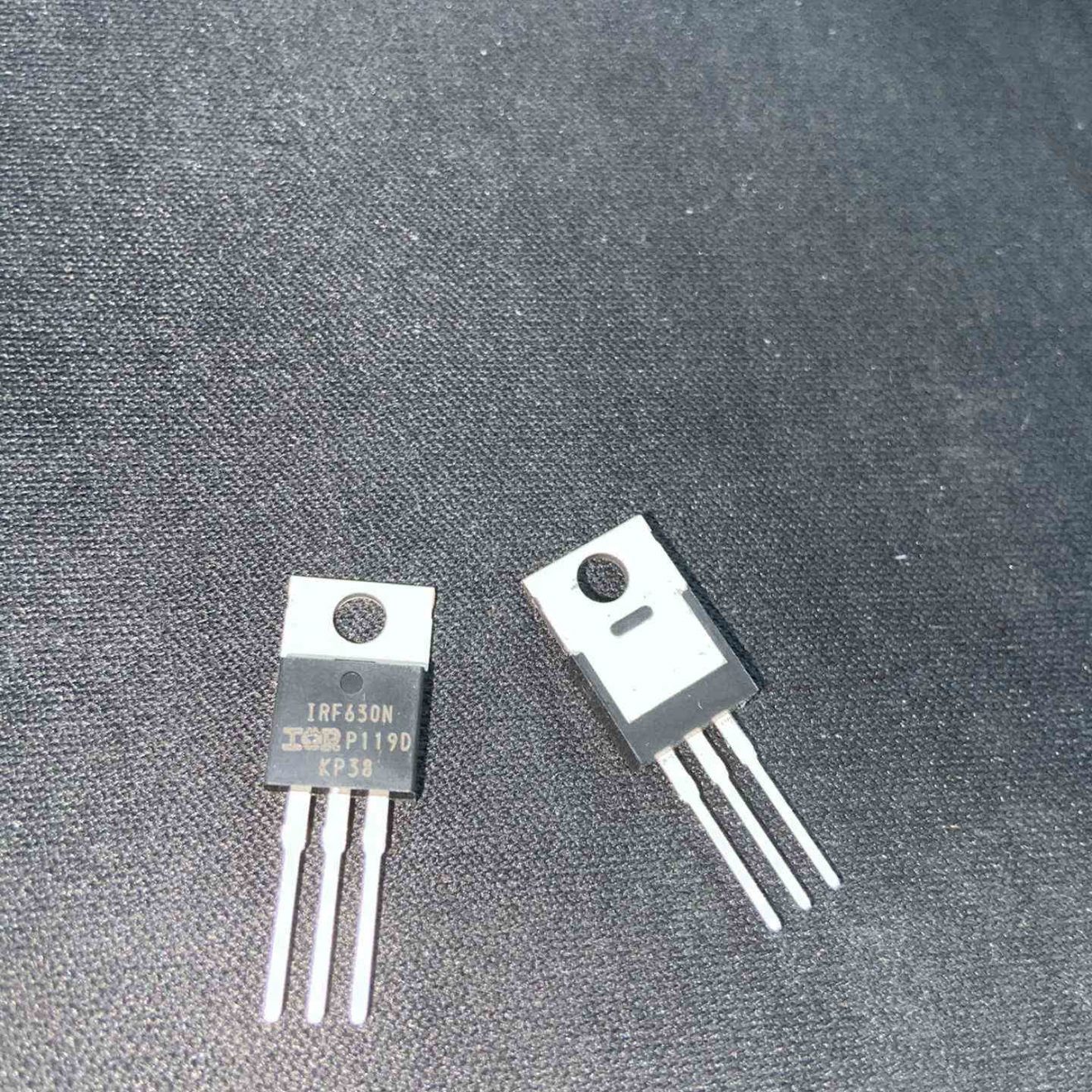

Image for reference only

Manufacturer Part：

IRF630NPBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF630NPBF is an N-channel HEXFET power MOSFET from Infineon Technologies with 200V voltage rating and 9.3A continuous drain current. This through-hole TO-220AB device is designed for medium-voltage power switching applications, offering a balance of voltage capability, on-resistance, and switching speed.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 200V
Continuous Drain Current (ID) 9.3A @ Tc=25°C
On-Resistance (RDS(on)) 300mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 35nC (max)
Power Dissipation (PD) 82W @ Tc=25°C
Operating Junction Temperature -55°C to +175°C
Package TO-220AB

Features

  • N-channel enhancement mode MOSFET
  • 200V drain-source voltage rating
  • Low gate charge for fast switching
  • Fully characterized avalanche voltage and current
  • Improved dv/dt capability, high ruggedness
  • Fast switching speed
  • RoHS compliant and lead-free
  • Standard TO-220AB through-hole package

Applications

  • High efficiency switch mode power supplies
  • Power factor correction (PFC)
  • Electronic lamp ballast
  • DC-DC converters
  • Motor control circuits
  • Industrial power systems

The IRF630NPBF is an N-channel enhancement mode HEXFET power MOSFET rated at 200V and 9.3A. It features fast switching speed, high input impedance, and improved dv/dt capability for high ruggedness. This device is well-suited for high-efficiency switch mode power supplies, power factor correction, and electronic lamp ballast applications. The TO-220AB package provides reliable through-hole mounting and good thermal dissipation.

The IRF630NPBF operates as an N-channel enhancement-mode MOSFET. When the gate-to-source voltage exceeds the threshold voltage (2-4V), an n-type inversion channel forms between the source and drain in the p-type body region, allowing electron current to flow. In switching applications, the device transitions between the cut-off region (VGS > VGS(th), low on-resistance). The gate oxide provides complete electrical isolation, resulting in very high input impedance and minimal steady-state gate drive current.

Pin Number Symbol Description
1 Gate (G) Gate control terminal
2 Drain (D) Drain terminal
3 Source (S) Source terminal
Tab Drain Tab connected to drain
  • High efficiency switch mode power supplies
  • Power factor correction (PFC)
  • Electronic lamp ballast
  • DC-DC converters
  • Motor control circuits
  • Industrial power systems
