IRF7103TRPBF

50V dual N-channel MOSFET, 3A, 130mΩ RDS(on), logic level, SOIC-8 package

12750

Effective Inventory
Go to Inquiry

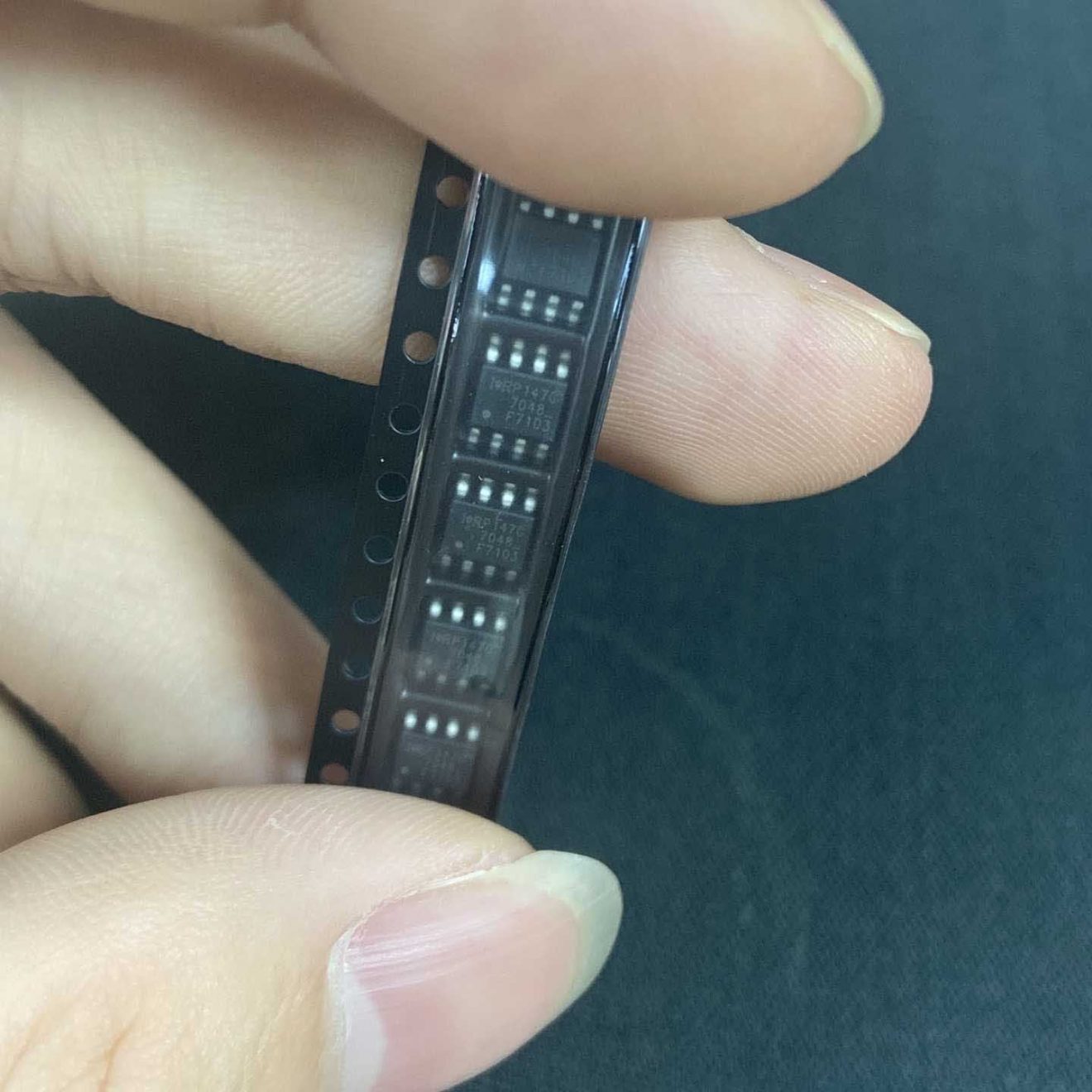

Image for reference only

Manufacturer Part：

IRF7103TRPBF

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF7103TRPBF is a dual N-channel MOSFET from Infineon Technologies, housing two independent N-channel MOSFETs in a single SOIC-8 package. With 50V rating and 3A per channel, and featuring logic level gate drive, this device is ideal for compact low-voltage power management applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 50V
Continuous Drain Current (ID) 3A @ 25°C (per channel)
On-Resistance (RDS(on)) 130mΩ max @ VGS=10V
On-Resistance @ 4.5V 200mΩ max
Gate Threshold Voltage (VGS(th)) 1V to 3V
Total Gate Charge (Qg) 12nC (typ) @ 4.5V
Power Dissipation (PD) 2W per channel
Operating Junction Temperature -55°C to +150°C
Package SOIC-8

Features

  • Dual N-channel MOSFET in SOIC-8 package
  • Logic level gate drive (VGS(th) = 1-3V)
  • Ultra-low gate impedance
  • Fully characterized avalanche voltage and current
  • Low gate charge for fast switching
  • RoHS compliant and lead-free
  • Surface mount SOIC-8 package

Applications

  • Load switching
  • Battery management
  • DC-DC converters
  • Power management ICs
  • Portable electronics
  • Low power motor drives

The IRF7103TRPBF is a 50V dual N-channel HEXFET power MOSFET in a SO-8 surface mount package. It features logic level gate operation (VGS(th) 1-3V), making it compatible with low-voltage microcontroller outputs. The dual configuration saves board space and is ideal for applications such as load switching, battery management, and low-power motor drive systems.

The IRF7103TRPBF contains two independent N-channel enhancement-mode MOSFETs in a single package. Each MOSFET operates independently: when a positive gate-source voltage exceeding the threshold (typically 2V) is applied, an n-type inversion layer forms a conductive channel between drain and source. The logic-level gate threshold allows direct drive from 3.3V or 5V logic circuits without additional level shifting. The two MOSFETs can be used independently for separate loads, or configured in parallel for higher current capability.

Pin Number Symbol Description
1 D1 Drain – MOSFET 1
2 D2 Drain – MOSFET 2
3 G1 Gate – MOSFET 1
4 S2 Source – MOSFET 2
5 G2 Gate – MOSFET 2
6 S1 Source – MOSFET 1
7 D2 Drain – MOSFET 2
8 D1 Drain – MOSFET 1
  • Load switching
  • Battery management
  • DC-DC converters
  • Power management ICs
  • Portable electronics
  • Low power motor drives
Model Manufacturer Voltage Package
IRF7316TRPBF Infineon 30V SOIC-8
SI9926 Vishay 20V SOIC-8
FDS8958B ON Semiconductor 30V SOIC-8
