IRF7342TRPBF

30V dual N-channel MOSFET, 6.7A, 17mΩ RDS(on), logic level, SOIC-8 package

10340

Effective Inventory
Go to Inquiry

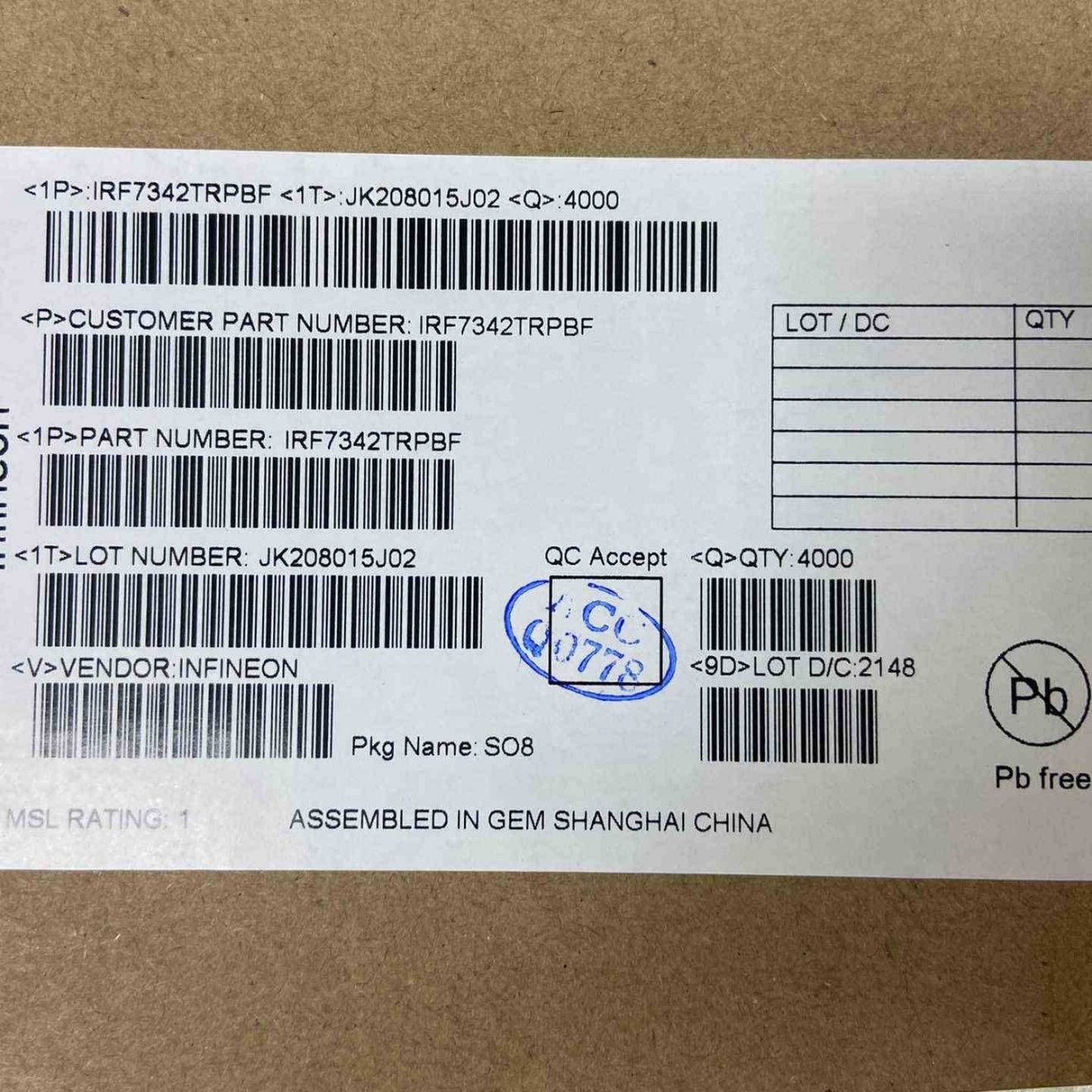

Image for reference only

Manufacturer Part：

IRF7342TRPBF

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF7342TRPBF is a dual N-channel HEXFET power MOSFET from Infineon Technologies in a SOIC-8 package. Rated at 30V with 6.7A per channel, this device offers a good balance of current capability and on-resistance for low-voltage power switching applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 30V
Continuous Drain Current (ID) 6.7A @ 25°C (per channel)
On-Resistance (RDS(on)) 17mΩ max @ VGS=10V
On-Resistance @ 4.5V 22mΩ max
Gate Threshold Voltage (VGS(th)) 1V to 2.5V
Total Gate Charge (Qg) 18nC (typ)
Power Dissipation 2.5W per channel
Operating Junction Temperature -55°C to +150°C
Package SOIC-8

Features

  • Dual N-channel MOSFET in SOIC-8
  • Low on-resistance (17mΩ max)
  • Logic level gate drive compatible
  • Fast switching performance
  • Fully characterized avalanche energy
  • Ultra-low gate impedance
  • RoHS compliant and lead-free
  • Surface mount SOIC-8 package

Applications

  • DC-DC converters
  • Synchronous rectification
  • Load switching
  • Battery protection circuits
  • Power management ICs
  • Notebook computers

The IRF7342TRPBF is a dual N-channel HEXFET power MOSFET in a SOIC-8 surface mount package. It features low on-resistance, logic level gate drive, and fast switching characteristics. With two independent MOSFETs in a compact package, it is ideal for synchronous buck converters, dual load switches, and various power management applications in space-constrained designs.

The IRF7342TRPBF contains two independent N-channel enhancement-mode MOSFETs. Each operates by creating an n-type inversion channel when VGS exceeds the threshold voltage (1-2.5V). The low threshold allows direct interface with 3.3V and 5V logic. The two MOSFETs can be used independently for separate loads, in a synchronous buck configuration (one as control FET, one as synchronous rectifier), or paralleled for higher current capability.

Pin Number Symbol Description
1 D1 Drain – MOSFET 1
2 D2 Drain – MOSFET 2
3 G1 Gate – MOSFET 1
4 S2 Source – MOSFET 2
5 G2 Gate – MOSFET 2
6 S1 Source – MOSFET 1
7 D2 Drain – MOSFET 2
8 D1 Drain – MOSFET 1
  • DC-DC converters
  • Synchronous rectification
  • Load switching
  • Battery protection circuits
  • Power management ICs
  • Notebook computers
Model Manufacturer Voltage Package
IRF7343TRPBF Infineon 25V SOIC-8
IRF7316TRPBF Infineon 30V SOIC-8
SI7846 Vishay 30V SOIC-8
