IRF7351TRPBF

60V dual N-channel MOSFET, 8A, 17.8mΩ RDS(on), SOIC-8 package

5640

Effective Inventory
Go to Inquiry

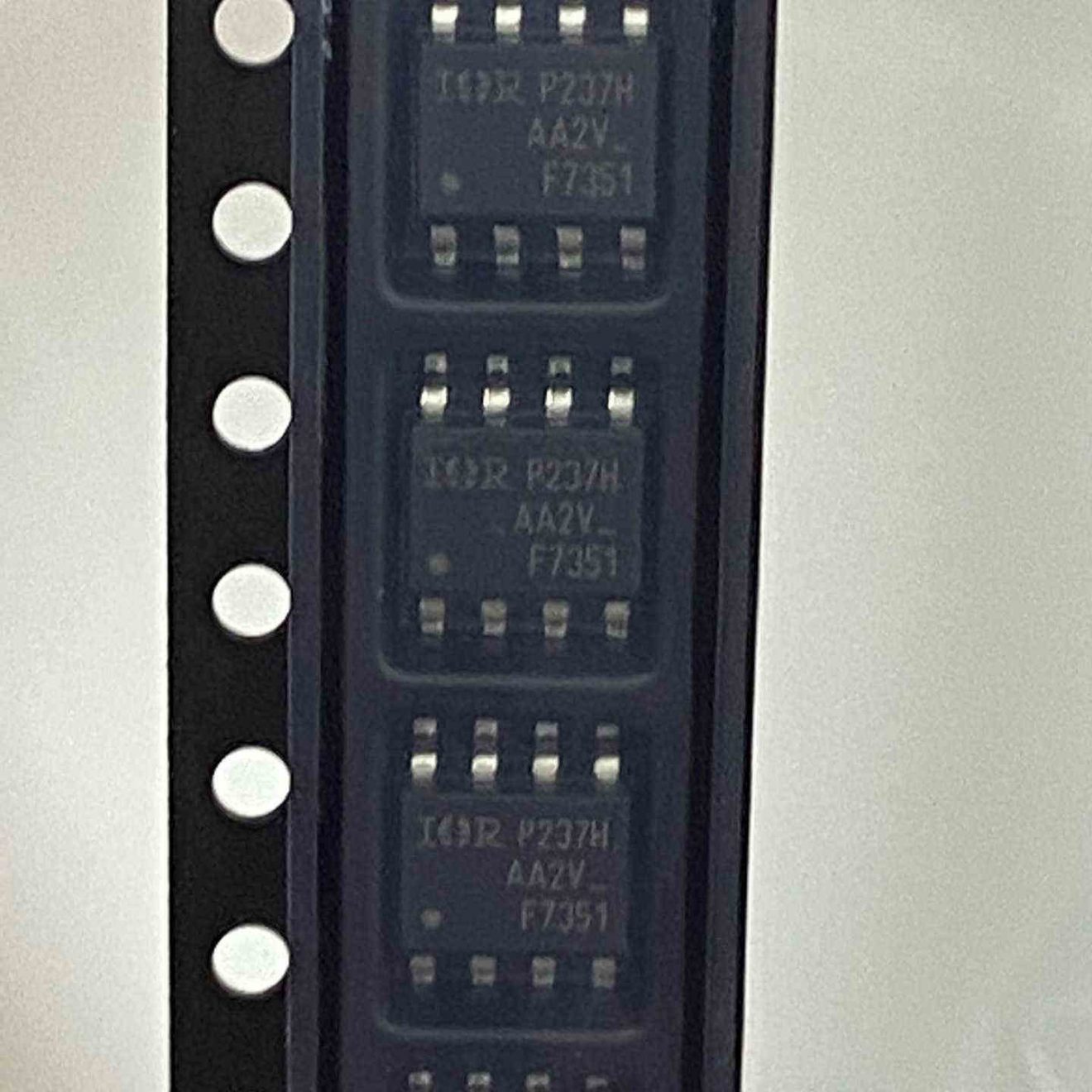

Image for reference only

Manufacturer Part：

IRF7351TRPBF

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF7351TRPBF is a dual N-channel HEXFET power MOSFET from Infineon Technologies in a SOIC-8 package. With 60V voltage rating and 8A per channel, this device offers excellent on-resistance performance for medium-voltage power switching and synchronous rectification applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 60V
Continuous Drain Current (ID) 8A @ 25°C (per channel)
On-Resistance (RDS(on)) 17.8mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 24nC (typ) @ 10V
Gate-Drain Charge (Qgd) 7.2nC (typ)
Power Dissipation 2W per channel
Operating Junction Temperature -55°C to +150°C
Package SOIC-8

Features

  • Ultra-low on-resistance (17.8mΩ max)
  • Ultra-low gate impedance
  • Fully characterized avalanche voltage and current
  • 20V VGS max gate rating
  • Fast switching speed
  • Dual N-channel configuration
  • RoHS compliant and lead-free
  • SOIC-8 surface mount package

Applications

  • Synchronous rectifier for isolated DC-DC converters
  • Low power motor drive systems
  • DC-DC converters
  • Load switching
  • Power management circuits
  • Industrial power supplies

The IRF7351TRPBF is a 60V dual N-channel HEXFET power MOSFET in a SO-8 package. It features ultra-low gate impedance and fully characterized avalanche voltage and current. This device is designed for synchronous rectifier applications in isolated DC-DC converters and low power motor drive systems. The SOIC-8 package provides a compact surface mount solution for medium-voltage power designs.

The IRF7351TRPBF contains two independent N-channel enhancement-mode MOSFETs. Each operates on the standard MOSFET principle: applying a gate-source voltage above the threshold (2-4V) creates an n-type inversion channel in the p-type body region, allowing current to flow between drain and source. The low on-resistance (17.8mΩ) minimizes conduction losses during the on-state. The two MOSFETs can be configured independently or together for synchronous rectification, load switching, or motor drive applications.

Pin Number Symbol Description
1 D1 Drain – MOSFET 1
2 D2 Drain – MOSFET 2
3 G1 Gate – MOSFET 1
4 S2 Source – MOSFET 2
5 G2 Gate – MOSFET 2
6 S1 Source – MOSFET 1
7 D2 Drain – MOSFET 2
8 D1 Drain – MOSFET 1
  • Synchronous rectifier for isolated DC-DC converters
  • Low power motor drive systems
  • DC-DC converters
  • Load switching
  • Power management circuits
  • Industrial power supplies
Model Manufacturer Voltage Package
IRF7342TRPBF Infineon 30V SOIC-8
FDS9926 ON Semiconductor 60V SOIC-8
SI9800 Vishay 60V SOIC-8
