IRF7832TRPBF

30V N-channel MOSFET, 20A, 4mΩ RDS(on), logic level, SOIC-8 package

11200

Effective Inventory
Go to Inquiry

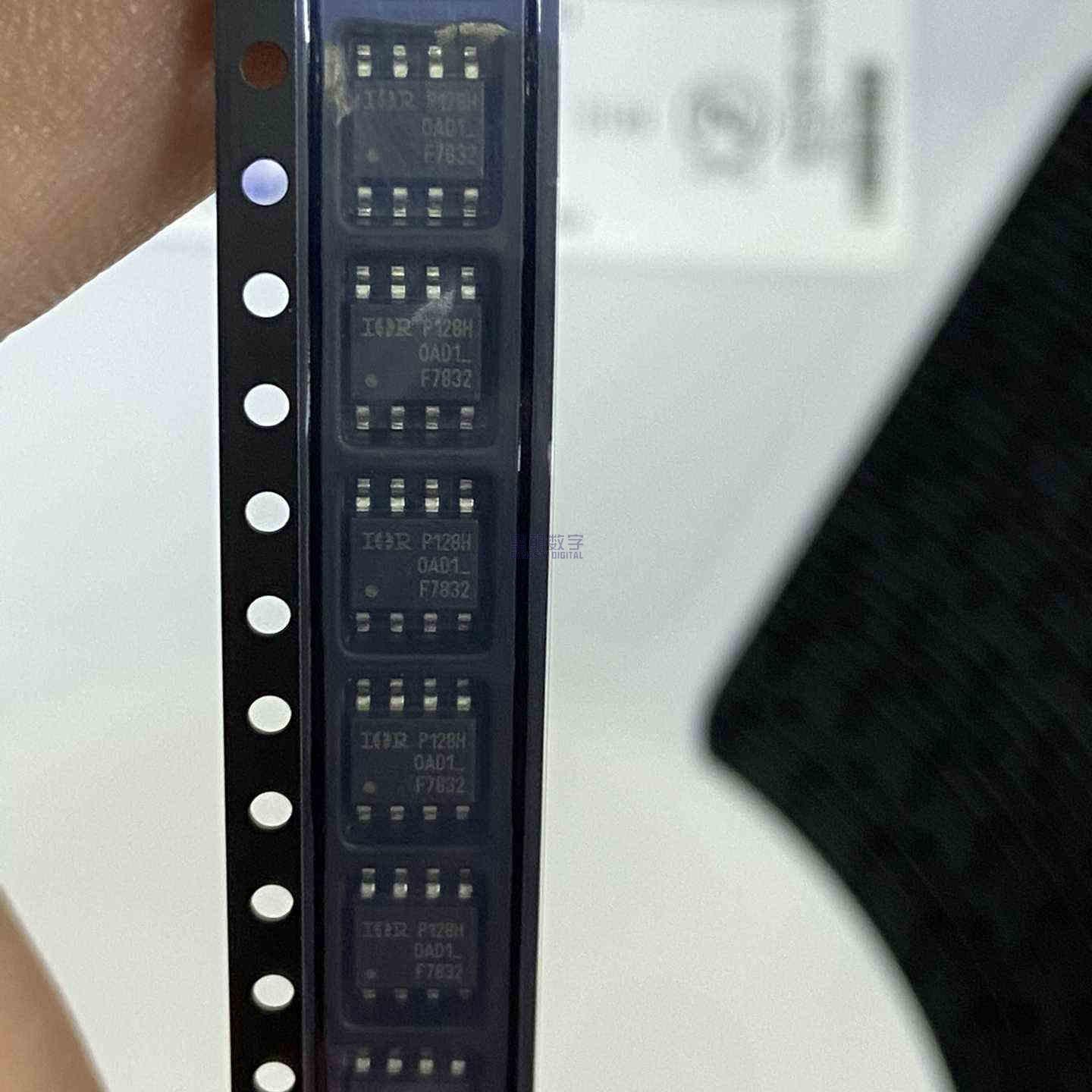

Image for reference only

Manufacturer Part：

IRF7832TRPBF

Package：

SOIC-8

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF7832TRPBF is a single N-channel HEXFET power MOSFET from Infineon Technologies in a SOIC-8 surface mount package. With 30V voltage rating and 20A continuous drain current, and logic level gate drive, this device is designed for high-density low-voltage power applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 30V
Continuous Drain Current (ID) 20A @ Ta=25°C
On-Resistance (RDS(on)) 4mΩ max @ VGS=10V
On-Resistance @ 4.5V 4.8mΩ max
Gate Threshold Voltage (VGS(th)) 1.39V to 2.32V
Total Gate Charge (Qg) 34nC (typ) @ 4.5V
Power Dissipation (PD) 2.5W @ Ta=25°C
Operating Junction Temperature -55°C to +155°C
Package SOIC-8

Features

  • Very low on-resistance (4mΩ max)
  • Logic level gate drive compatible
  • Low RDS(on) at 4.5V VGS
  • Fully characterized avalanche voltage and current
  • Ultra-low gate impedance
  • Fast switching speed
  • RoHS compliant and lead-free
  • Industry standard SOIC-8 package

Applications

  • Intermediate bus converters (IBC)
  • DC-DC converters
  • Synchronous rectification
  • Load switching
  • Notebook computers and servers
  • Point-of-load (POL) converters

The IRF7832TRPBF is a 30V single N-channel HEXFET power MOSFET in a SOIC-8 surface mount package. It features industry-leading low on-resistance and logic-level gate drive capability, making it ideal for high-density low-voltage power conversion applications. The device is optimized for 5V gate drive operation and is designed for use in intermediate bus converters, POL converters, and synchronous rectification.

The IRF7832TRPBF is an N-channel enhancement-mode MOSFET that operates by forming a conductive channel when VGS exceeds the threshold voltage (1.39-2.32V). The very low on-resistance of 4mΩ is achieved through advanced trench MOSFET technology, which reduces conduction losses significantly. In switching applications, the device alternates between the cut-off region (blocking state) and the ohmic region (conducting state). The logic-level threshold allows direct drive from 3.3V and 5V logic circuits without additional level shifting circuitry.

Pin Number Symbol Description
1-4 Drain (D) Drain terminals (multiple pins for high current)
5 Gate (G) Gate control terminal
6-8 Source (S) Source terminals (multiple pins for high current)
  • Intermediate bus converters (IBC)
  • DC-DC converters
  • Synchronous rectification
  • Load switching
  • Notebook computers and servers
  • Point-of-load (POL) converters
Model Manufacturer Voltage Package
IRF7862TRPBF Infineon 30V SOIC-8
BSC040N03MSG Infineon 30V TSDSON-8
SI7136 Vishay 30V SOIC-8
