IRF8010PBF

100V N-channel power MOSFET, 80A, 15mΩ RDS(on), wide SOA, TO-220AB package

2870

Effective Inventory
Go to Inquiry

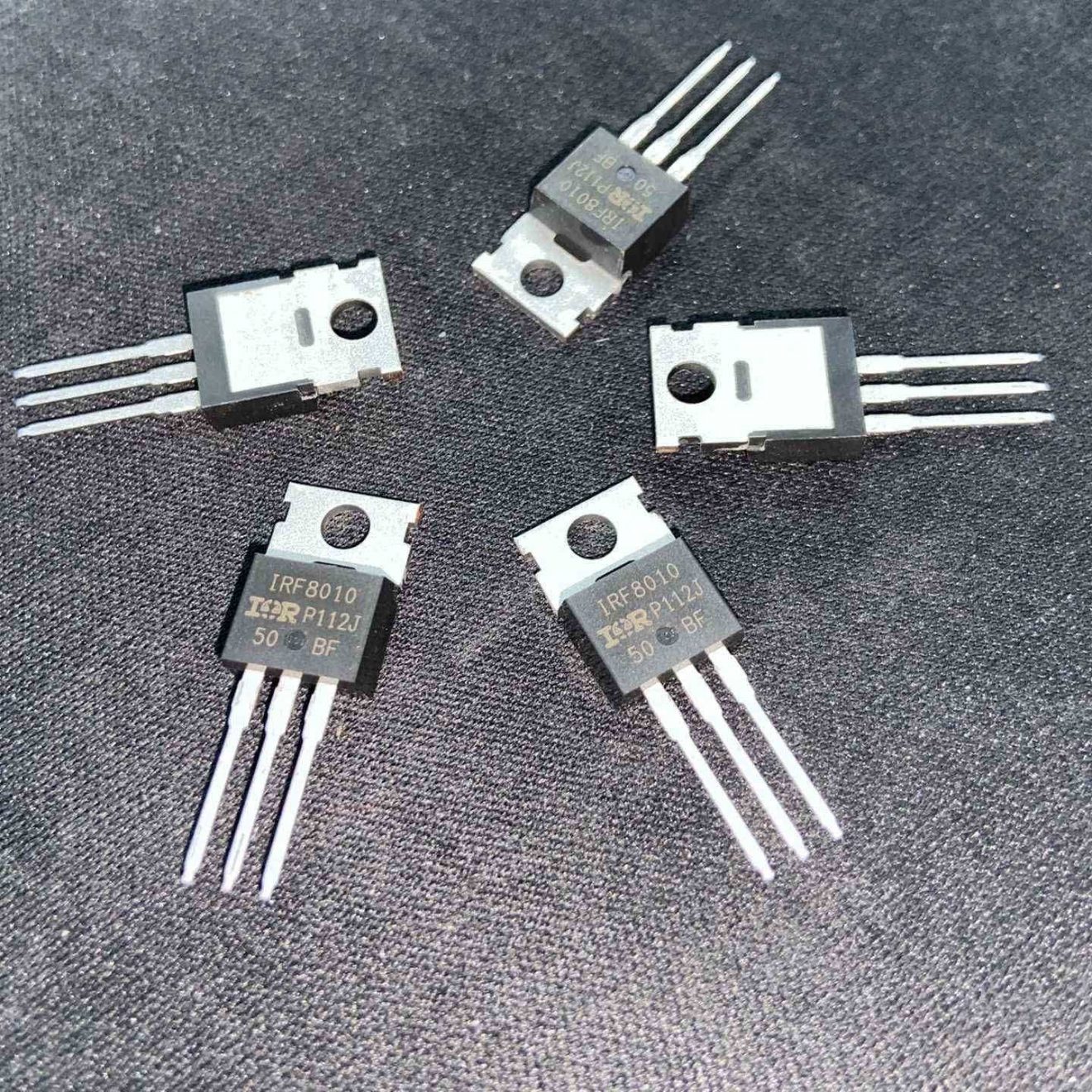

Image for reference only

Manufacturer Part：

IRF8010PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRF8010PBF is a single N-channel power MOSFET from Infineon Technologies with 100V voltage rating and 80A continuous drain current capability. This high-current TO-220AB device features planar cell structure for wide SOA (Safe Operating Area) and is designed for high-power switching applications.

Key Specifications

Parameter Value
Drain-Source Voltage (VDSS) 100V
Continuous Drain Current (ID) 80A @ Tc=25°C
On-Resistance (RDS(on)) 15mΩ max @ VGS=10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Total Gate Charge (Qg) 81nC (typ) @ 10V
Gate-Drain Charge (Qgd) 26nC
Power Dissipation (PD) 260W @ Tc=25°C
Thermal Resistance (RθJC) 0.57°C/W max
Operating Junction Temperature -55°C to +175°C
Package TO-220AB

Features

  • High current capability (80A continuous)
  • Low on-resistance (15mΩ max)
  • Planar cell structure for wide SOA
  • Low gate-to-drain charge to reduce switching losses
  • Fully characterized capacitance including effective COSS
  • Fully characterized avalanche voltage and current
  • Dynamic dv/dt rating
  • Industry standard TO-220AB package
  • RoHS compliant

Applications

  • High frequency DC-DC converters
  • UPS systems
  • Motor control
  • Power supplies
  • Battery management
  • Industrial automation

The IRF8010PBF is a 100V N-channel HEXFET power MOSFET in a TO-220AB package featuring planar cell structure for wide Safe Operating Area (SOA). It combines high current capability (80A) with low on-resistance (15mΩ) and low gate-to-drain charge for reduced switching losses. The device is optimized for high-frequency DC-DC converter, UPS, and motor control applications.

The IRF8010PBF is an N-channel enhancement-mode MOSFET with planar cell structure. When VGS exceeds the threshold voltage (2-4V), an n-type inversion channel forms between the drain and source in the p-type body region, allowing current flow. The planar structure provides a wide Safe Operating Area (SOA), making it suitable for linear mode and high-stress switching applications. In switching operation, the device transitions between cut-off (blocking 100V) and ohmic (conducting 80A with 15mΩ resistance) regions. The low RDS(on) and low Qgd minimize both conduction and switching losses.

Pin Number Symbol Description
1 Gate (G) Gate control terminal
2 Drain (D) Drain terminal
3 Source (S) Source terminal
Tab Drain Tab connected to drain for thermal dissipation
  • High frequency DC-DC converters
  • UPS systems
  • Motor control
  • Power supplies
  • Battery management
  • Industrial automation
Model Manufacturer Voltage Package
IRF3710PBF Infineon 100V TO-220AB
IPP015N10N5 Infineon 100V TO-220
FDP015N10 ON Semiconductor 100V TO-220
