IRFB3206PBF

60V N-Channel HEXFET / StrongIRFET Power MOSFET, 120A (pkg limit), 3.0 mΩ RDS(on), TO-220AB

3824

Effective Inventory
Go to Inquiry

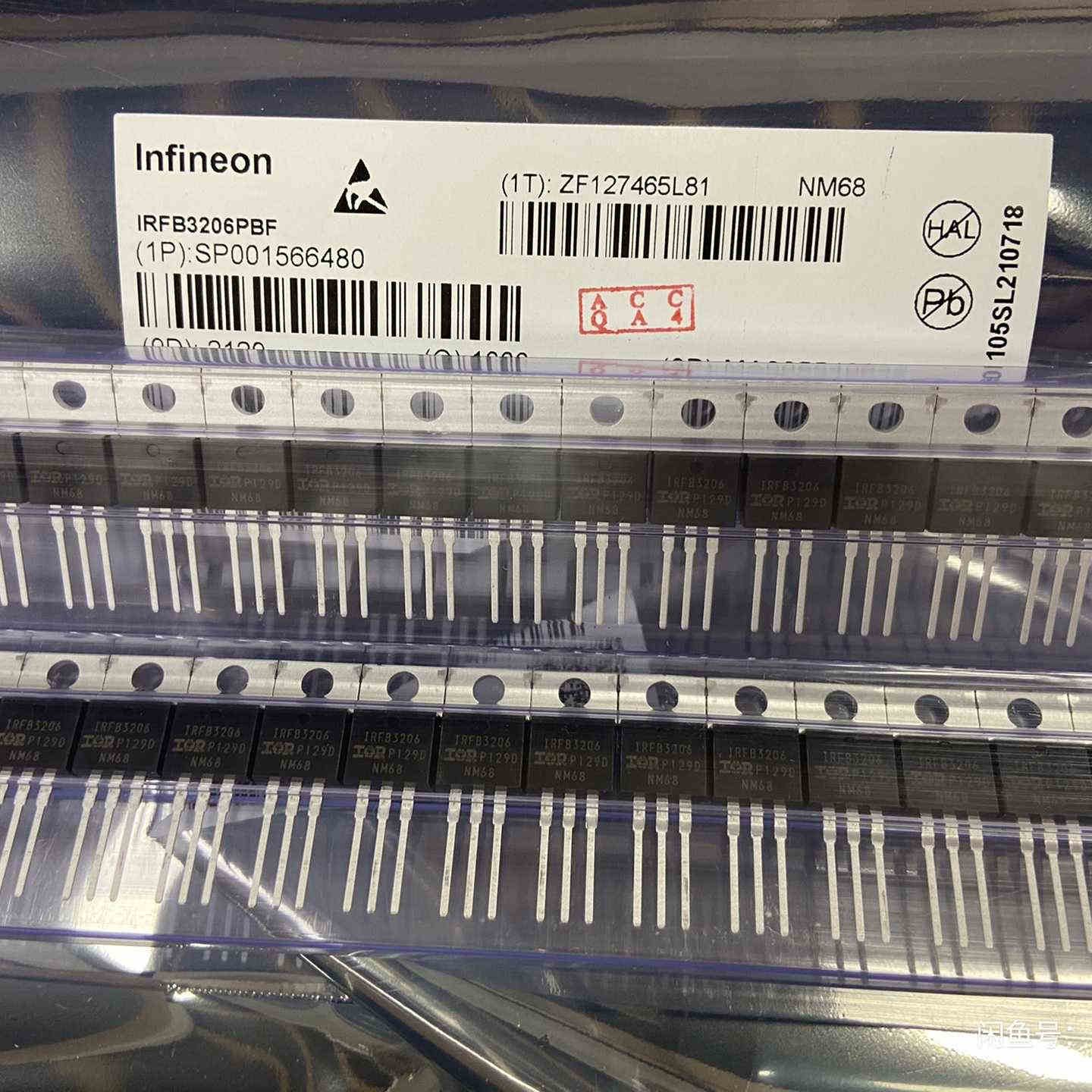

Image for reference only

Manufacturer Part：

IRFB3206PBF

Package：

TO-220AB

Brand：
Product Categories：
Quality Commitment
Shipping & Payment
Service & Packaging
Product Manual
Other recommendations you may be interested in.

IRLZ44NPBF

IRLR3110ZPBF

IRLML0100TRPBF

IRLML0030TRPBF

IRLR2905TRPBF

IRLH5034TRPBF

IRFS4310ZTRLPBF

IRFS4227TRLPBF

Description

Product Overview

The IRFB3206PBF is a 60V N-channel HEXFET / StrongIRFET power MOSFET from Infineon Technologies, featuring a continuous drain current of 120A (pkg limit) and a maximum on-resistance of 3.0 mΩ at VGS=10V. Packaged in a TO-220AB through-hole enclosure, this device is optimized for high efficiency synchronous rectification and high speed power switching. The HEXFET StrongIRFET technology provides ultra-low on-resistance with high current capability, making it suitable for a wide range of industrial and commercial power electronics applications. The device features dynamic dv/dt ruggedness, full avalanche rating, and reliable thermal performance for demanding power supply and motor control designs.

Key Specifications

Drain-Source Voltage (VDS) 60 V
Continuous Drain Current (ID @ 25°C) 120A (pkg limit)
Continuous Drain Current (ID @ 100°C) 85A
Pulsed Drain Current (IDM) 480A
On-Resistance (RDS(on) max @ VGS=10V) 3.0 mΩ
Gate Threshold Voltage (VGS(th)) 2.0 – 4.0 V
Gate-Source Voltage (VGS) ±20 V
Total Gate Charge (Qg typ) 120 nC
Input Capacitance (Ciss typ) 6860 pF
Power Dissipation (PD @ TC=25°C) 300 W
Operating Junction Temperature -55 to +175 °C
Single Pulse Avalanche Energy (EAS) 170 mJ

Features

  • 60V drain-source voltage rating
  • 120A (pkg limit) continuous drain current capability
  • 3.0 mΩ maximum on-resistance at VGS=10V
  • Advanced HEXFET StrongIRFET technology
  • Dynamic dv/dt ruggedness rating
  • 175°C operating junction temperature
  • Fast switching speed
  • Fully avalanche rated for reliability
  • Lead-free and RoHS compliant
  • TO-220AB through-hole package

Applications

  • Switch Mode Power Supplies (SMPS)
  • DC-DC converters
  • Motor control and drives
  • Uninterruptible Power Supplies (UPS)
  • High efficiency synchronous rectification
  • Battery management systems
  • Industrial power systems
  • Load switching applications
  • Low voltage power supplies

The IRFB3206PBF is a 60V N-channel enhancement mode power MOSFET from Infineon Technologies’ HEXFET product family. It features an ultra-low on-resistance of 2.4mΩ typical (3mΩ maximum) at VGS=10V with a high continuous drain current of 210A (silicon limited) or 120A (package limited). Packaged in a TO-220AB through-hole enclosure, this device is specifically optimized for high efficiency synchronous rectification and high speed power switching applications. The IRFB3206PBF offers improved gate, avalanche, and dynamic dv/dt ruggedness, with fully characterized capacitance and avalanche SOA. Its enhanced body diode provides superior dV/dt and dI/dt capability. With a power dissipation rating of 300W and operating junction temperature up to 175°C, this MOSFET is ideal for demanding power supply designs, DC-DC converters, UPS systems, and battery management applications where high efficiency and reliability are required.

The IRFB3206PBF is an N-channel enhancement mode MOSFET that operates by applying a gate-source voltage above the threshold level (VGS(th) = 2-4V) to create a conductive channel between drain and source. With VGS=10V applied, the device enters full saturation offering extremely low on-resistance (2.4mΩ typical), minimizing conduction losses even at high currents. The HEXFET technology uses a hexagonal cell structure to maximize the effective channel width per unit of silicon area, enabling this combination of low resistance and high current density in a compact die. When VGS is 0V, the device blocks up to 60V across drain-source. The internal body diode can conduct in the reverse direction, making the device suitable for synchronous rectifier applications where it must freewheel the inductor current. The device is fully avalanche rated, capable of dissipating energy in the avalanche breakdown region, and features dynamic dv/dt ruggedness for reliability in hard-switched applications.

Pin Number Pin Name Description
1 Gate (G) Gate control terminal – VGS=10V for full conduction, 0V for off-state
2 Drain (D) Drain terminal – high voltage connection; electrically connected to the mounting tab
3 Source (S) Source terminal – low side return connection
Tab Drain (D) Mounting tab – connected to Pin 2 Drain; primary thermal path to heatsink
  • Switch Mode Power Supplies – primary and secondary side switching
  • DC-DC converters – isolated and non-isolated topologies
  • Motor control – brushless DC and induction motor drives
  • Uninterruptible Power Supplies – inverter and charger stages
  • High efficiency synchronous rectification
  • Battery management systems
  • Industrial power systems – power distribution and control
  • Load switching – high current power distribution systems
  • Low voltage power supplies
Model VDS (V) ID (A) RDS(on) Max Package
IRFB4110PBF 100 120 4.5 mΩ TO-220AB
IRFB7434PBF 40 195 2.2 mΩ TO-220
IRFP4310ZPBF 100 134 6 mΩ TO-247
IRFP150MPBF 100 42 36 mΩ TO-247AC
Recommend Parts
